| Prod Model: |
5565X2 |
| Guide Rail: |
THK (Japan) |
| Guide Rail Precision: |
C5, (Same with Drilling Machine) |
| Screw: |
THK (Japan) |
| Screw Precision: |
C7 |
| Electronic Component: |
Schneider (Germany) |
| Sensors: |
Omron (Japan) |
| Servo: |
Panasonic (Japan) |
| Assembly Tech: |
Based on High Precision Drilling Machine Technolog |
| Guide Rail Diameters: |
25mm (Higher Then Industry Level in China) |
| Others: |
Every Cable Have Number |
Product Description

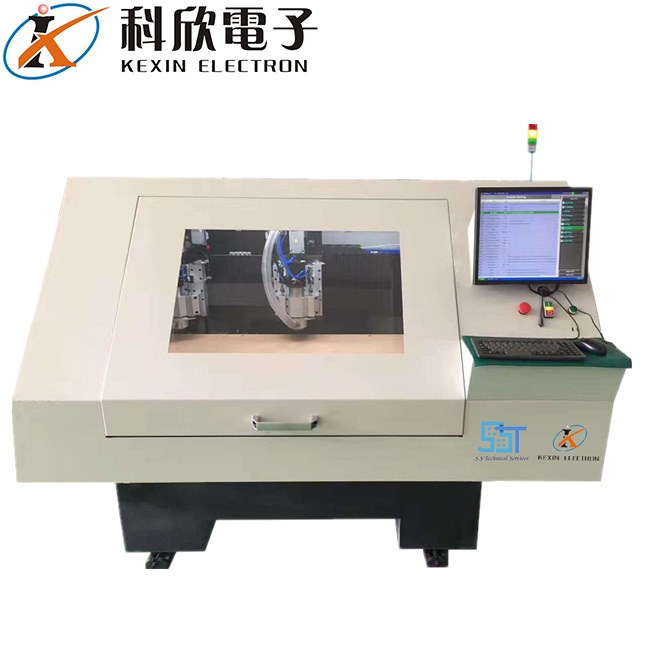

High Speed Two Spindle Drilling Machine For PCB
Specifications| Spindles | 2 |

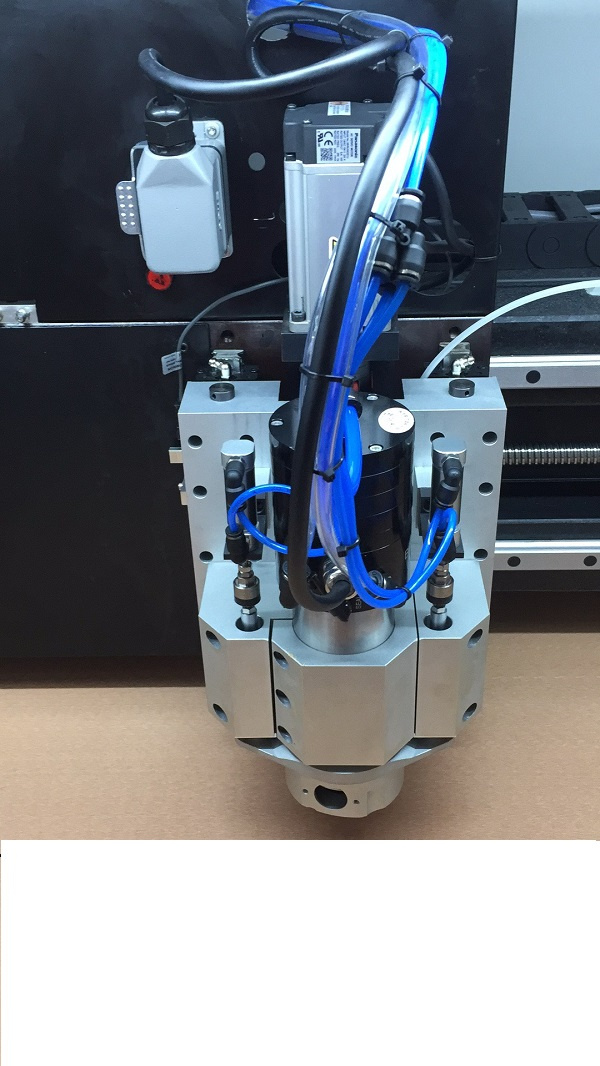

| Spindle Type | Spindle Speed 160KRPM (Also can update to 200KRPM) |
| Working Table | Natural Granite |
| Drive System | High Precision Guide Screw |
| Transmission Mechanism | Imported High Precision guideway with leading screw |
| Moving Speed | 36m/min |
| Effective Working Size | 678mm X 640mm for each spindle |
| Tool Change | Pneumatic Gripper; Automatic Tool Change |
| Tool Magazine | 176/spindle |
| Laser Tool Measuring (TMS) | Diameter+Length |
| Big/Small Pressure Foot (QIC) | Yes |
| Broken Tool Detection (CBD) | Yes |
| Automatic Door | Yes |
| Quick Drill Function | Yes |
| Vacuumer Control | Yes |
| Positioning Accuracy | ±0.01mm |
| Repeated Accuracy | ±0.005mm |
| Tool Size | Φ0.2~6.0mm |
| Power | 380±5%V, Max.4KW |
| Compressed Air | Flow≥0.3L/min; Pressure ≥ 0.7MPa |
| Machine Size | 2470 × 1880 × 1080 mm |
| Machine Weight | 3000 KG |
| Soft Control System | Own CNC Driller System |
Price Term & Shipment
♦Trade Term: FOB Shenzhen USD by T/T in advance.
♦Discount is allowed against your quantity.
♦Sample can be sent out in 3 days.
♦OED/OEM is accepted.
♦Delivery will be carried out by Express or your requirement.
♦Lead Time: 2~7 days after payment.
Our Service
- Specific designed to meet differents customers's requirements.
- 24 hours technical support by email and telephone service.
- Warranty: 1year for free repair, 2-3 years free technical support.
- Provide English manual or operating video.
- Free training to help you master your equirement.
Kexin Electronics(HK) Industrial Limited is a professional Manufacturer on printed circuit board (PCB) equipment and accessories, and also we provide maintenance services. In order to becoming a good supplier with diversified products and the most influence on the PCB market, our company is centrally concerned with the est quality of facilities in PCB industry.
Kexin Electron Co., Ltd. Is specializing in the production of the printed circuit board (PCB) equipment and accessories. We provide maintenance services for all products which produced by our company. In order to be a good supplier with diversified products and the most influence in the PCB market, Kexin is keep growing up with the market and focus on the advanced technology in PCB industry.
Our company has passed the review of China Printed Circuit Association (CPCA)and jointed them in 2007. In order to provide the best service for the customers from east of China, we set up an office in Kunshan Jiangsu province in 2009. Now we are the VIP of Alibaba and wish cooperate with the factories all over the world. We are sure we can provide satisfactory products and service. Welcome to contact with us for anything you need. Jan. 1, 2015, set up Kexin Electronics(HK)Industrial Limited in HongKong, China.
To ensure that our products can achieve all the requirements from customers, we bought the advanced numerical control equipment and testing instruments. We also have excellent designers and engineers to make sure we can service customer well. We have built efficient logistics and distribution systems which can timely and effective to support the production. So we are willing to establish a long-term win-win relationship with every PCB manufacturers.
We are committed to innovation, providing high quality equipments and accessories. The same time we would like to undertake more social responsibility. Kexin is a learning company. We pay cost of training for our workers to improve their ability to serve company and customers.
The president of the company joined the Guangdong Lions Club which is a charity organization who has done a lot of rescue like help the disabled, support poor student, contribute money for disaster like earthquake, flood and so on. At the same time, Kexin encourages employees to be as volunteers and take part in volunteer activities, to transfer social positive energy.
In a word, Kexin team is willing to win a better progress and develop with all the friends.
