| Prod Model: |
C41-20KG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Beat Weight: |
20 Kg |
| Forging Forming Method: |
Free Forging |
Product Description
Specifications
1. It is used for forging and shaping work pieces
2. It is easy to operate through controlling the travel of top swage.
Features

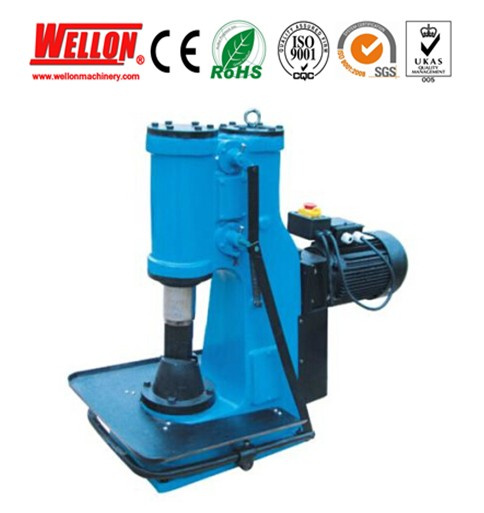

1. The air hammer is used for forging and shaping work pieces
2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 150KG
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting
5. It is also used for forging in bolster dies.
| Model | C41-20KG |
| Beat weight(kg) | 20 |
| Beat capacity(kgf-m) | 220 |
| Height of working(mm) | 200 |
| Beat times/minute | 270 |
| Length of rectangular(mm) | 30X30 |
| Length of circular(mm) | ¢35 |
| Power (kW) | 2.2 |
| Speed of motor (rpm) | 1440 |
| Weight of anvil block(kg) | 200 |
| Packing Size(cm) | 67X37X105 |
| N.W./G.W.(kg) | 500/560 |
We specialized in exporting many kinds of machine tools for many years, such as CNC machine, Lathe, Milling machine, Radial drilling machine, and other kinds of metal working machine. Our products have exported to the US, Australia, Spain, Germany, Italy, Brazil, Turkey, Iran, Thailand, and other countries. Since its establishment, we won high praise from customers at home and abroad, because of our high quality products, professional service and most competitive price.
With the advanced production facility, strong technical ability and professional production capability, we're sure that we can supply you the qualified products with high quality and best design.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. All machines are inspected
We wish to cooperate sincerely with friends all over the world to realize mutual development.
