2000kg Excellent Electric Power Pallet Truck (CBD20)
| Price: |
US $ 3400-3900/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CBD20 |
| Drive Unit: |
Electric |
| Wheel Material: |
PU |
| Lowered Mast Height: |
1996mm |
| Free Lift: |
51 |
| Fork Size: |
72*170*1122 |
| Driving Speed Laden/Unlenden: |
4km/6h |
| Max Gradient Performance Laden/Unladen: |
4/6% |
| Battery Type: |
AC |
| Pump Motor Rating: |
2.2 |
| Power: |
AC Motor |
| Load Capacity: |
1T - 5T |
| Load Center: |
550 |
| Lift Height: |
3.0m |
Product Description
1. Control system:CURTIES, New design, national patented products (patent Number ZL201430452825.8. Unique with very good looking. Transfhtormers series appearance;2.high quality AC drive ensures good performances and save maintence cost.
3.Electric steering sys. for your choice,flexible and convenient.
4.Ergonomic handle design,easy to operate.
5.Large capacity battery enables longer operation.
6.Rubber guard arm and emergency.
7.Foldable pedal with rubber bush makes it more flexbile in narrow space and reduces labour intensity.

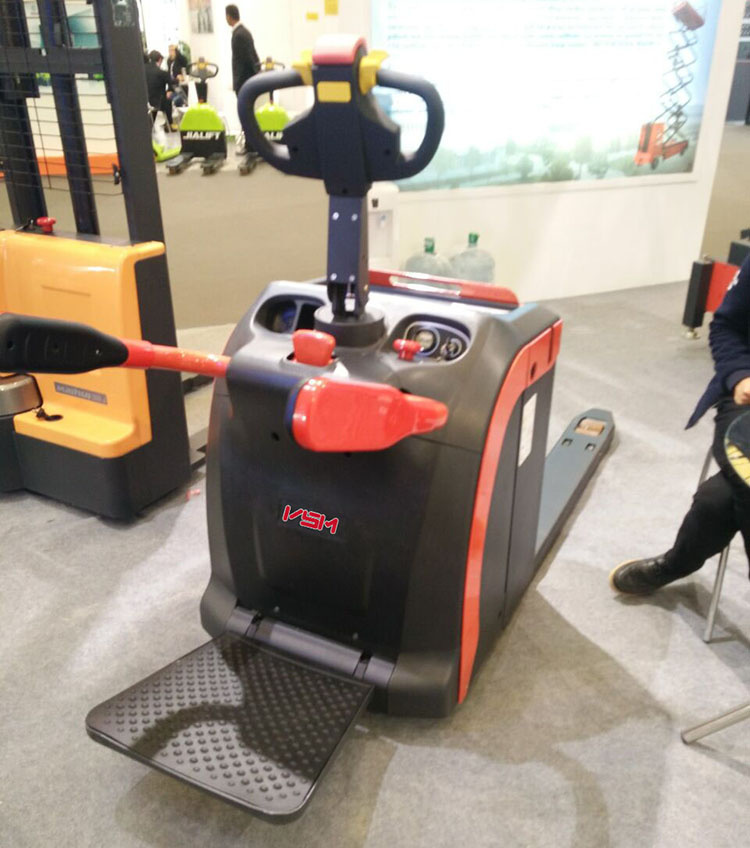

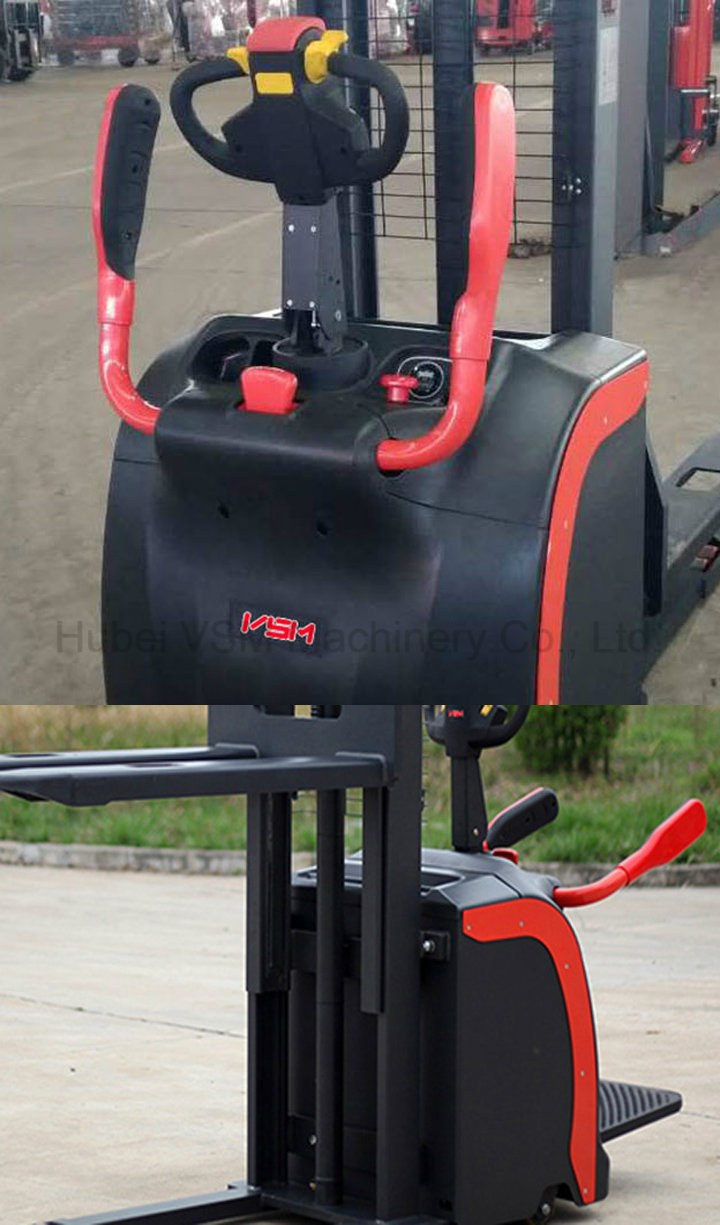

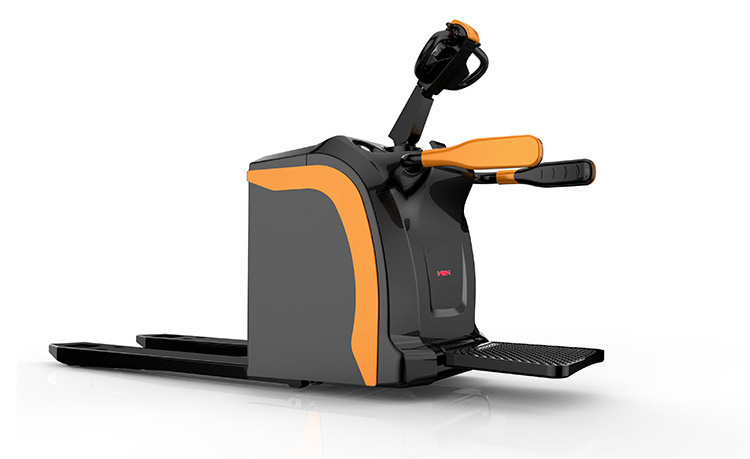

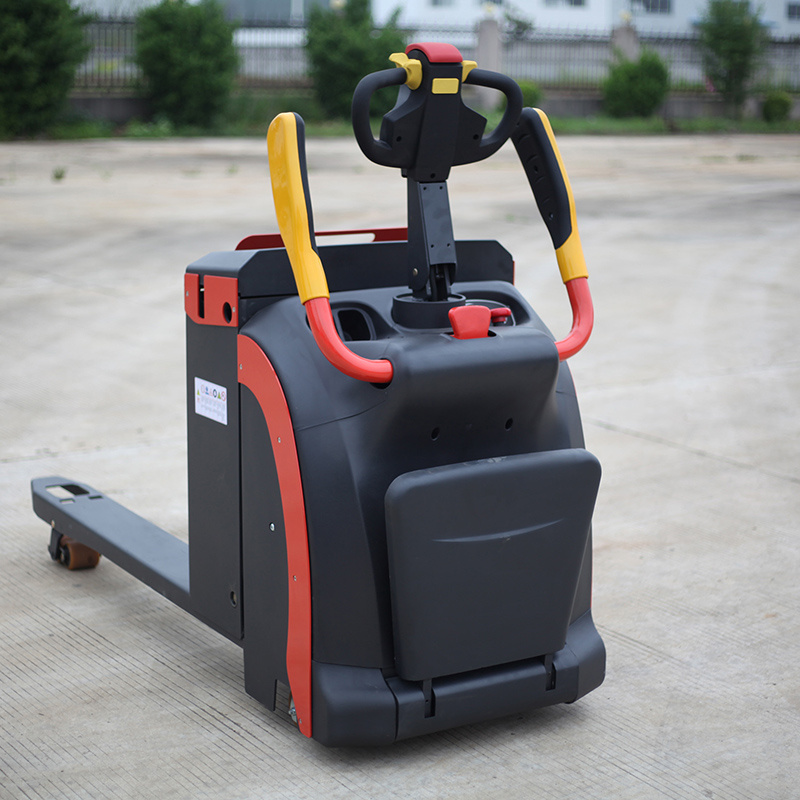

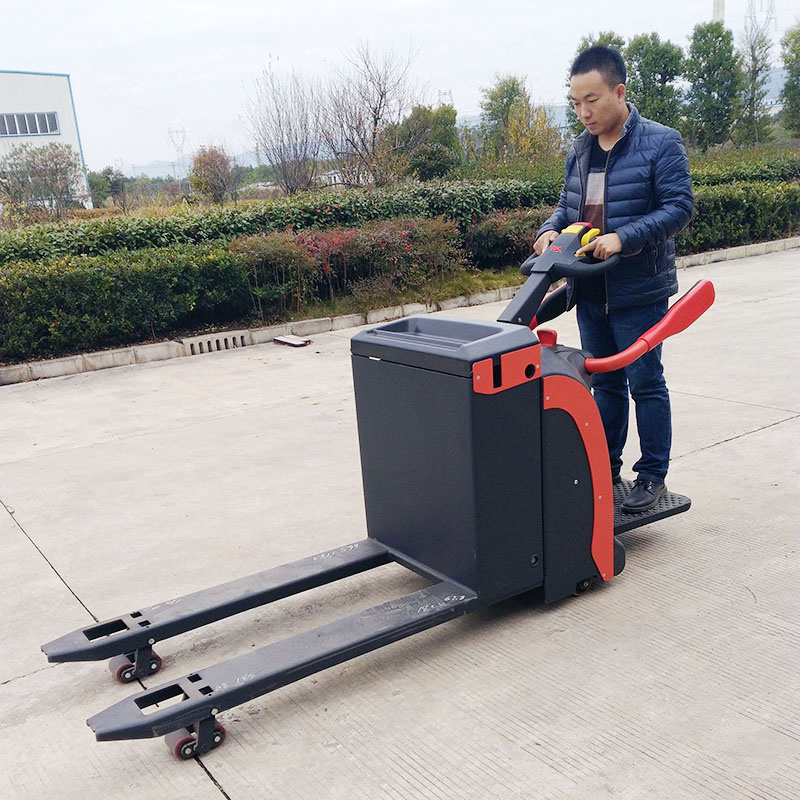

8.Won the most influential design reward--RED STAR DESIGN REWARD in 2016.PRODUCT PHOTOES
PRODUCT INFORMATION: | Model | CBD20 | CBD25 | CBD30 |
| Drive unit | Battery | Battery | Battery |
| Operator type | Pedal | Pedal | Pedal |
| Capacity (kg) | 2000 | 2500 | 3000 |
| Wight(lncl.battery)(kg) | 690 | 720 | 740 |
| Overall length (mm) | 1985 | 1985 | 1985 |
| Overall width (mm) | 722 | 722 | 722 |
| Overall height (mm) | 1330 | 1330 | 1330 |
| Raised height (mm) | 110 | 110 | 110 |
| Fork dimensions (mm) | 72/170/1220 | 72/170/1220 | 72/170/1220 |
| Fork spread (mm) | 690 | 690 | 690 |
| Aisle width,1000×1200 pallet crossways (mm) | 2592 | 2592 | 2592 |
| Aisle width,800×1200 pallet crossways (mm) | 2392 | 2392 | 2392 |
| Outer turning radius(mm) | 1759 | 1759 | 1759 |
| Wheel type | PU/PU | PU/PU | PU/PU |
| Operator side | Φ230×70 | Φ230×70 | Φ230×70 |
| Load side | 2×Φ80×87 | 2×Φ80×87 | 2×Φ80×87 |
Drive speed,with load /
without load (km/h) | 5/7 | 5/7 | 5/7 |
Lifting speed,with load /
without load (m/s) | 0.035/0.048 | 0.035/0.048 | 0.035/0.048 |
Maximum climbing angles,
with load / without load (%) | 5/8 | 5/8 | 5/8 |
| Service brake | Electromagnetic | Electromagnetic | Electromagnetic |
| Drive motor power at S2 60 min (kw) | 1.6horizontal motor | 2.5vertical motor | 3.0vertical motor |
| Lift motor power at S3 15% (kw) | 1.5 | 1.5 | 1.5 |
| Battery voltage / rated capacity (5h)( V/Ah) | 24/210 | 24/240 | 24/240 |
| Battery weight(kg) | 190 | 210 | 210190 |
| Battery l / w / h(mm) | 650/201/590 | 650/201/590 | 650/201/590 |
| Battery type | traction battery | traction battery | traction battery |
| Type of drive control | AC | AC | AC |
| Control System | ACTIVE | ACTIVE | ACTIVE |
| Sound level for operator (dB(A)) | 85 | 85 | 85 |

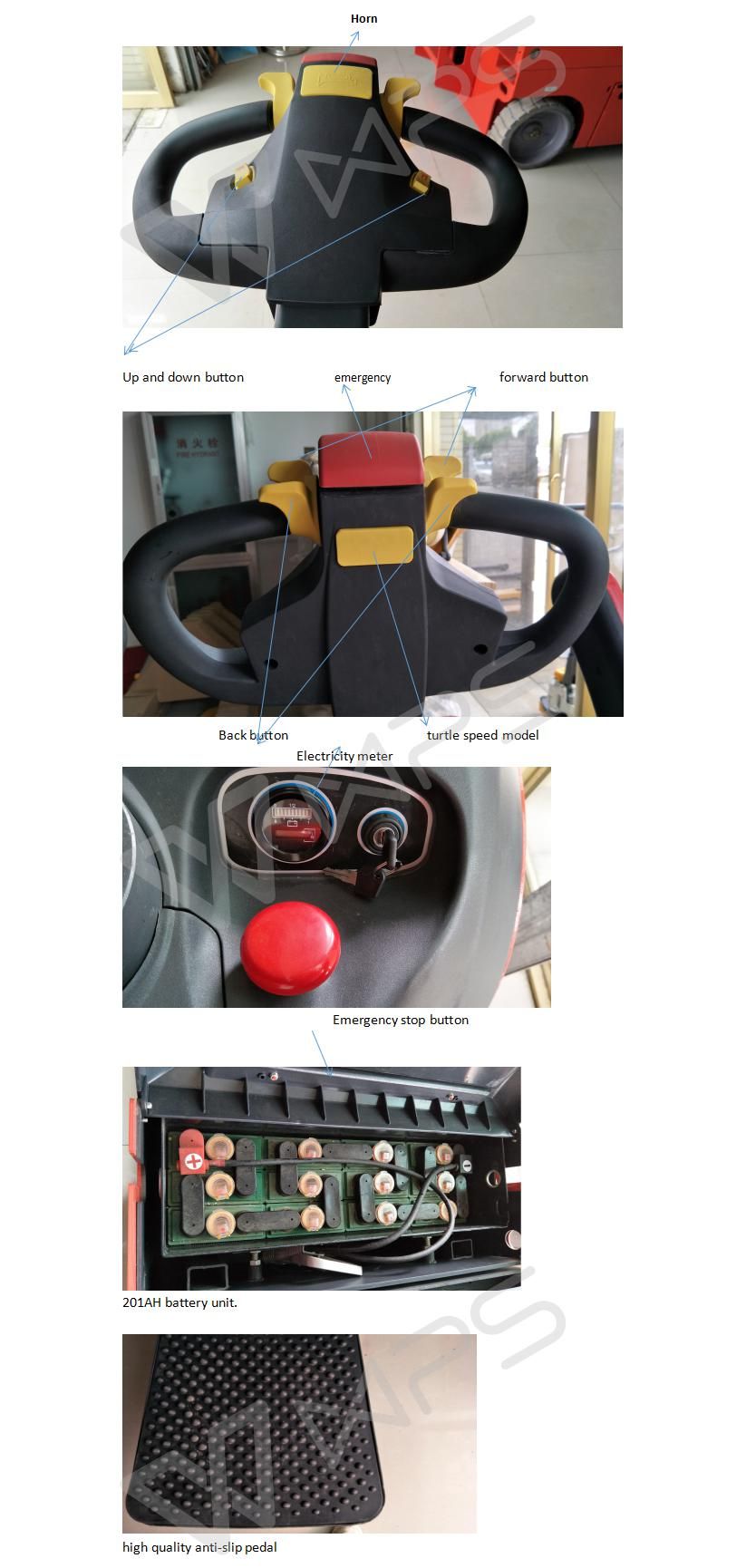

DETAILED VIEW:
MORE HOT SALE PRODUCTS:

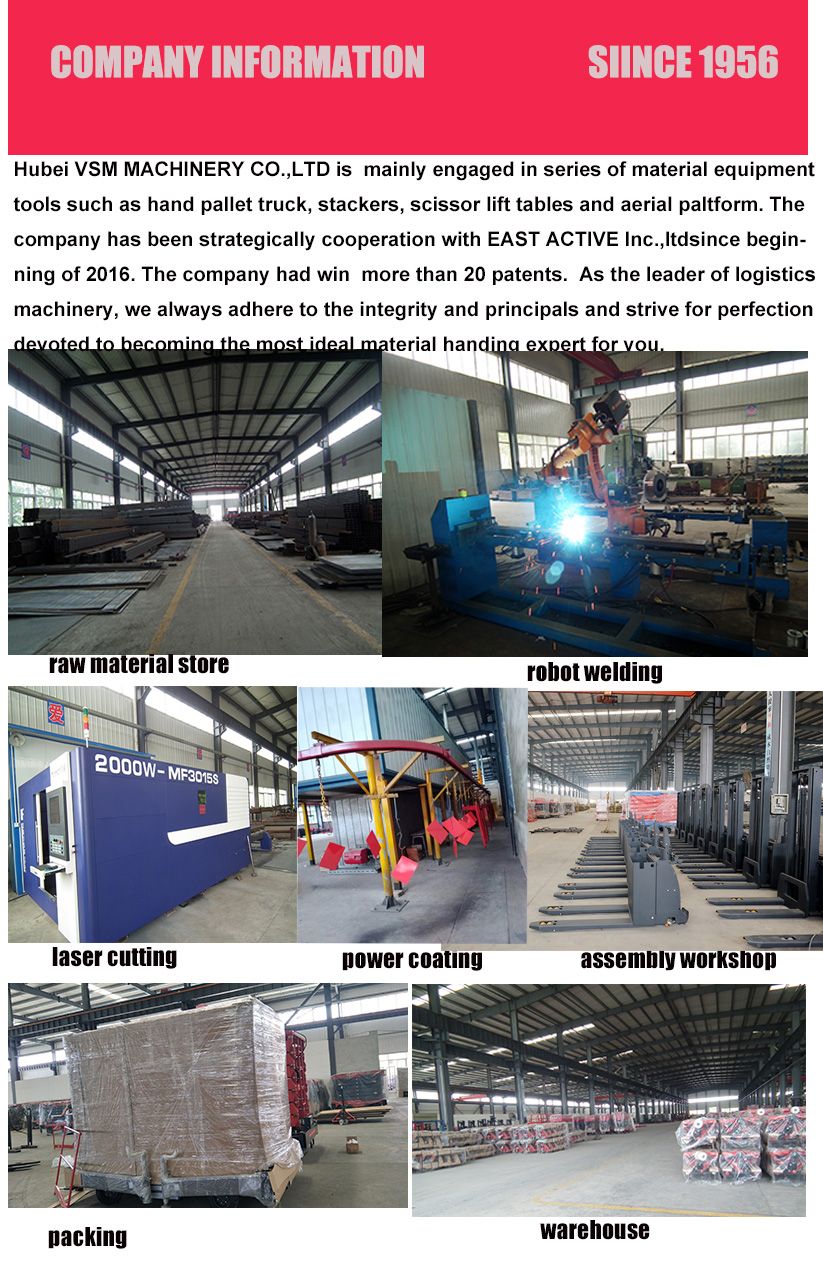

COMPANY INFORMATION:
Hubei VSM machinery co., Ltd is engaged in aerial work platform, material handing equipment, intelligent storage equipment, intelligent Mechanical equipment and three dimensional parking equipment research and development, manufactureand installation, debugging and other intelligent equipment filed of professional companies.
The company has been strategically cooperation with EAST ACTIV Inc...Ltd in Canda since the beginging of 2016 and the power and control system tchnology is supported by EAST ACTIVE.
We have 20 patens and have received ISO9001 international certificate. Our products are granted TUV: GS/CE certificate. Our CDD full electric won the most influential design reward--RED STAR DESIGN REWARD in 2016.
We have set branches in Bangkok, Wuhan, Guangzhou, Shanghai, Chengdu and many other cities both home andabroad. The produts are exported to more than 80 countries and regions including Europe, Amercia and southeast Asia. We have 108 after sales sevice centers in dometic cities and are highly reputed for our qualiry and services.
As the leader of logistics machinery, we always adhere to the intergrity and pragmatic principals and strive for perfection, devoted to becoming the most ideal material handing expert for you.our workshop
Why choose us?1. Real Factory with exporting experience.More than 60 years of producing material handling equipment (former named Hubei Goldmill Machinery Factory,China's first manufacturer of lifting equipment. )2. Price.Provide factory direct price, will save your cost than buy from third party3.Excellent quality.Mainly parts imported from Europe and USA, assembly in China,we can ensure the long time use and safety.4. Adequate Stock.We have many kinds of spare parts in stock, we can delivery in 24 hrs.5. Services.Professional service team can give powerful support for our products. Engineers have more than 10 years' experience in products and ready to solve all your problems.6. Innovation.Technical and management innovation guarantee our quality to be in top position in our industry. What products do we have? Electric Stacker, Semi Electric Stacker, Hand Stacker, Electric Pallet Truck, Semi Electric Pallet Truck, Hand Pallet Truck, Table Lift, Electric order picker, Hand manual order picker, Scissor Lift, Electric Aluminium Alloy Platform etc. F A QWelcome to ask us questions . Don't be shy. We are very professional.1. How to place an order?A:Tell us your detail requirements of Top but cheapest small type electric forklift pallet truck-electric stacker(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype ,We will send you our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.2. What's your Price Terms?A: We offer FOB ,FCA, CIF, CFR, EXW and DDU price terms.3. Are you Factory?A: Yes. 4. Can i place mix order?For example, i need 1 pc Electric Stacker and 1 pc Hand Pallet Truck,can this ok?A: Yes, of course. You can mix different models as you wish. 5. Can you send the machine to my factory in other city to load the container?A: Yes, please tell us the detail address, we can arrange to send your factory in time.6. Are the forklift trucks covered by a warranty?A: Yes. All our machines carry a full 1 year major parts warranty.7. Can i get discounts?A: Yes, For big order, old customer and frequent customers, we give reasonable discounts.8. How to place an order?A:Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on Trademanager or Skype ,We will send you our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.9. How could i pay them?A: We accept Western Union (for parts order, order value less than $1500); T/T(bank transfer,order value at least $1500); L/C (Irrevocable LC at sight, order value at least $10000 )10. How long could i get my order?A: Mainly depend on the order quantity1) Stock products: deliver within 24 hours.2) If don't have items in stock, then produce 1 pc, delivery time is 7days;produce 2~5 pcs, delivery time is 15 days;produce 6~12 pcs, delivery time is 25 days.11. Can you add our own logo on the products or use our designs?A: Yes,of course you can add logo on our products! We provide OEM/ODM service.In addition, we promise your design would protect by law, we won't tell anyone else about this. It's your own copyright. Welcome your factory tour at any time!
