| Prod Model: |
CBD20K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

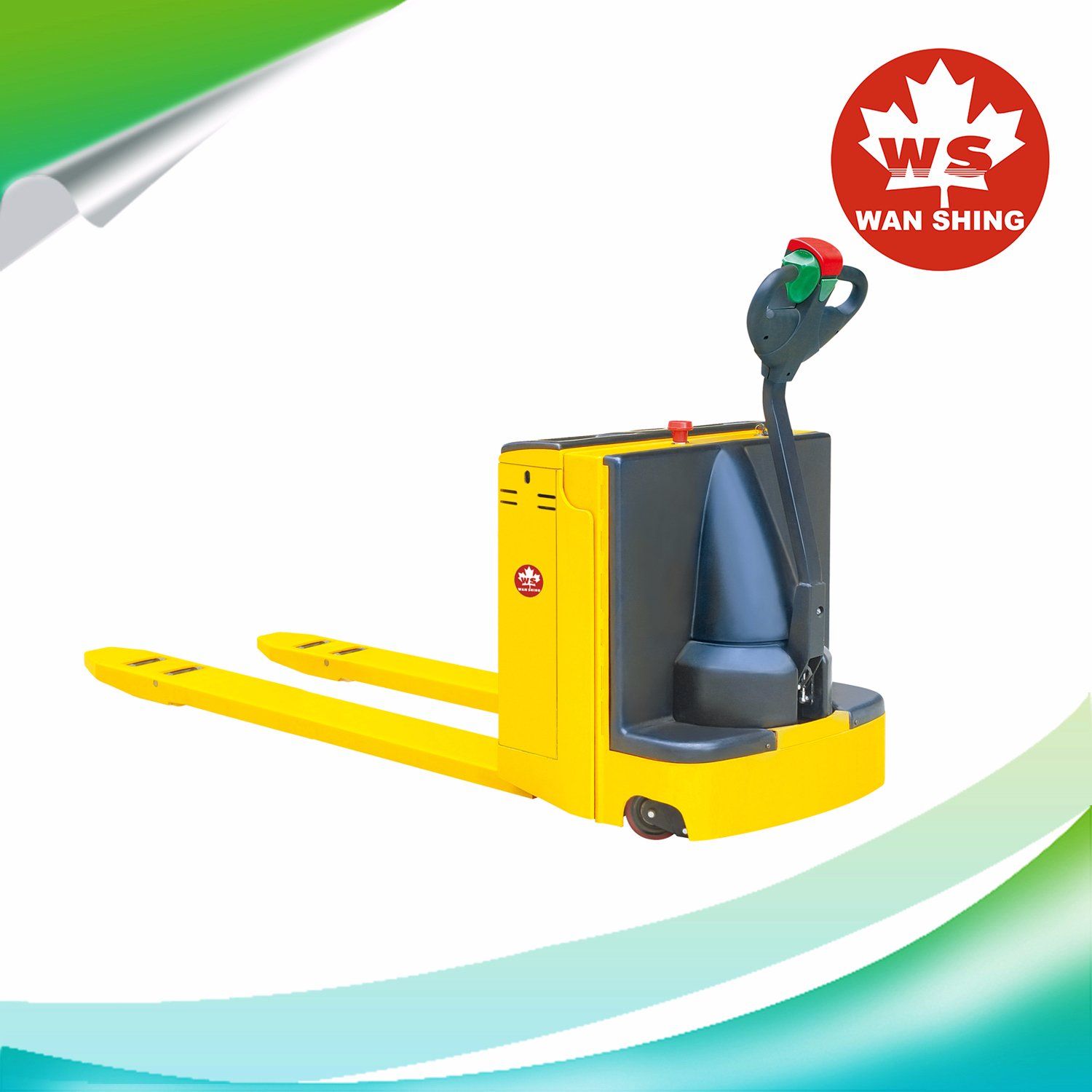

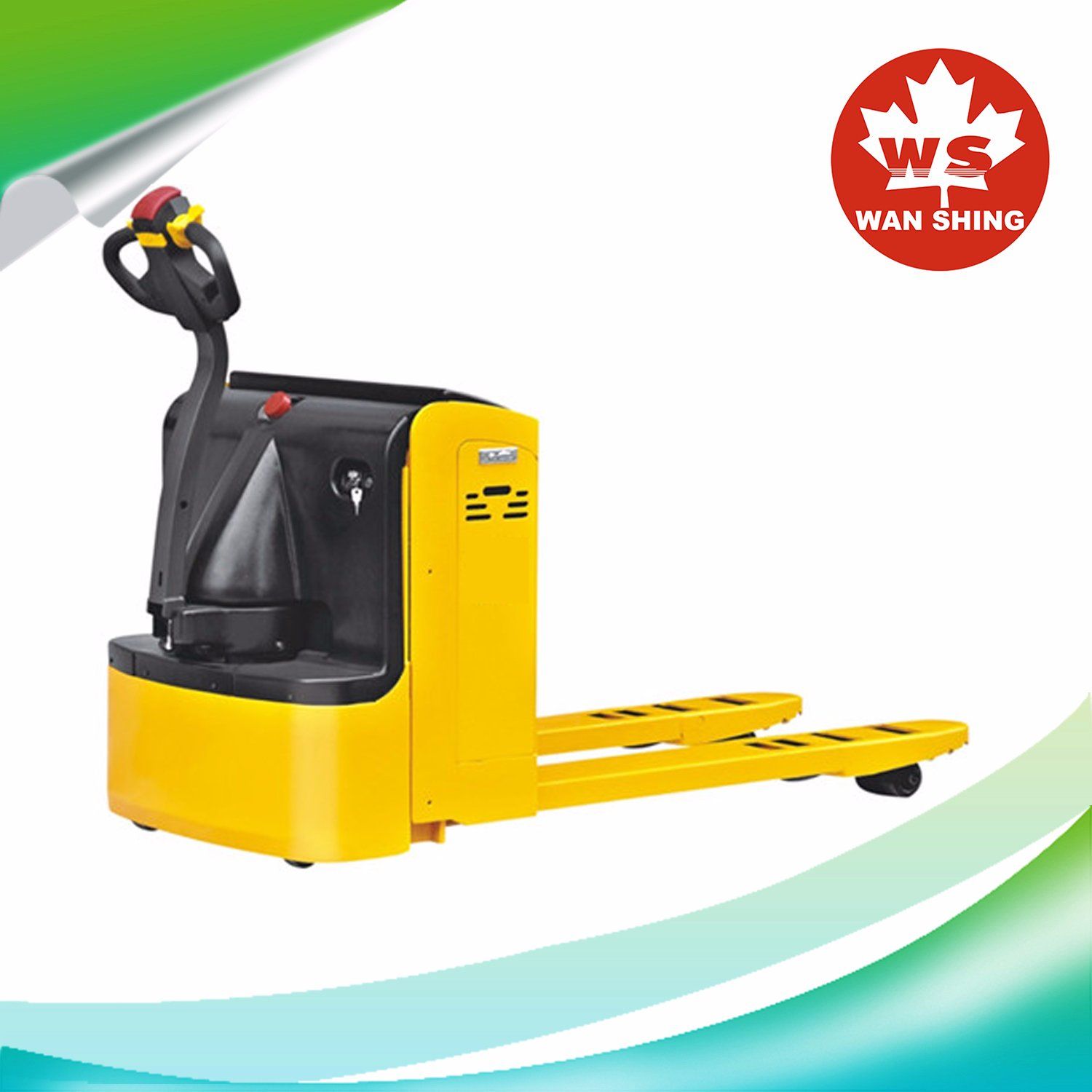

Product Description
Advanced AC control system eliminating the motor brushes and directional contactors, which makes the minimal maintenance requirements. Intelligentized regenerative brake system: Increase overall truck performance by decreasing battery charge intervals.
Emergency reversing device.
Built-in pressure relief valve protects the trucks from overloads.
Long handle tube gives flexible and laborsaving operation.
Emergency power disconnect.
Low speed switch in the handle.
Stepless speed control.
| Model | | CBD20K |
| Drive type | | electric |
| Operation type | | pedestrian |
| Load capacity | Q(kg) | 2000 |
| Load centre distance | c(mm) | 600 |
| Load idetance, centre of drive axle to fork | x(mm) | 815/865/935 |
| Fork height, lowered | h13(mm) | 85 |
| Wheelbase | y(mm) | 1181/1231/1301 |
| Axle loading, laden front/rear | kg | 882/1638 |
| Axle loading, unlader front/rear | kg | 418/102 |
| Tyres | | polyurethane |
| Tyre size, front | mm | Φ 250x80 |
| Tyre size, rear | mm | Φ 80x70 |
| Additional wheels(dimensions) | mm | Φ 127x57 |
| Wheels, number front rear(x=driven wheels) | | 1X+2/4 |
| Tread, front | b10(mm) | 580 |
| Tread, rear | b11(mm) | 340/370/470/505 |
| Max. lift height | h3(mm) | 120 |
| Height of tilier in drive position min. /max | h14(mm) | 680/1172 |
| Overall length | l1(mm) | 1682/1732/1802 |
| Length to face of forks | l2(mm) | 582 |
| Overall width | b1(mm) | 785 |
| Fork dimensions | s/e/l(mm) | 53/180/1100(1150/1220) |
| Width overall forks | b5(mm) | 520/550/650/685 |
| Ground clearance, centre of wheelbase | m2(mm) | 30 |
| Aisle width for pallets 1000x1200 crossways | Ast(mm) | 2043/2093/2163 |
| Aisle width for pallets 800x1200 crossways | Ast(mm) | 2143/2143/2163 |
| Turning radius | Wa(mm) | 1462/1512/1582 |
| Travel speed, laden/unladen | Km/h | 4.5/5 |
| Lift speed, laden/unladen | m/s | 0.03/0.04 |
| Lowering speed, laden/unladen | m/s | 0.05/0.045 |
| Max. gradeability, laden/unladen | % | 5/12 |
| Service brake | | Electromagnetic |
| Drive motor rating S2 60 min | kW | 0.9 |
| Lift motor rating at S3 15% | kW | 0.8 |
| Battery voltagem, nominal capacity K5 | V/Ah | 24/210 |
| Battery weight | kg | 140 |
| Battery dimensions l/w/h | mm | 750x170x580 |
| Sound level at the driver' s ear. To DIN 12053 | Db(A) | 70 |
| Service weight(with battery) | kg | 520 |
Wansheng Engineering Machinery & Equipment Co., Ltd are founded in 1997, located in Guangzhou. We are specialized in supplying material handling equipments and construction machinery.
Wansheng started export in 2009, till today. WS fproducts have been exported a lot to European, Africa, Middle East and South America countries.
In 2015, Wansheng has successfully listed in Guangzhou Equity Exchange, stock code: 890560.
List in NEEQ is in preparation.
Our main products include: 2-10T Diesel Counterbalanced Forklift, 2-4T Gasoline/Natural Gas Forklift, 1-3.5T Electric Counterbalanced Forklift, 1-2T Reach Electric Forklift; Hand Pallet Truck, Scissor Lift Pallet Truck, Electric Pallet Truck, Hand Stacker, Electric Stacker, Lift Table, Vehicle Tail Lift, Movable Dock Ramp & Dock leveller.
We possess vehicle assembly lines, painting lines, standard test sites and various testing and detection equipment and facilities, annual production capacity can reach 10, 000 units. Our forklifts have obtained ISO9001 quality system certificate, special equipment manufacturing license, CE certificate and SGS certificate.
Basing on insisting of the principle "Quality first and service foremost", our products are popular all over the world. Especially, to ensure the excellent performance and long life, we adopt Japanese technology and Japanese imported critical components, which greatly win us reliance and praise from clients.
Please refer to our websit www.wsforklift.com for more info.
