Prod Model: |
Yg-130, Yg-180, Yg-200 |
Product Name: |
Water Well Drilling Rig Machine |
Model: |
Yg-130,Yg-180,Yg-200 |
Application: |
Water Well,Rock |
Power: |
13.2/14.7kw |
Drilling Depth: |
130,180,200m |
Drill Pipe Diameter: |
42-60mm |
Drill Pipe Inclination: |
95-70° |
Open Drilling Diameter: |
220/325mm |
Final Hole Diameter: |
75mm |
Weight: |
920/950/1150kg |
Product Description

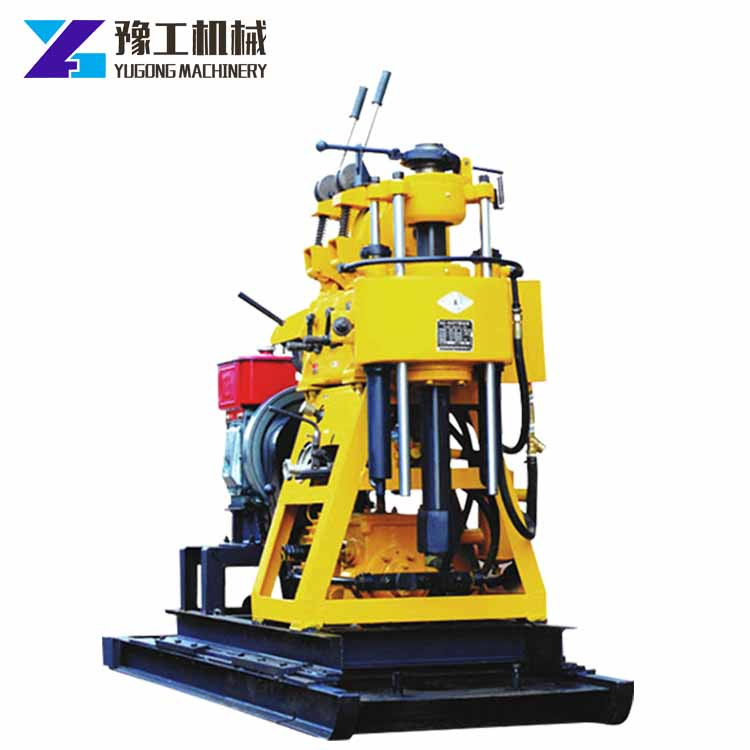

Water Well Core Drilling Rig MachineIntroduction The Core Drilling Rig Machine is suitable for drilling works such as water well drilling, general exploration, geophysical exploration, road and building exploration, blasting hole drilling and so on.
Parameters
Model | YG-130Y/130YY | YG-180Y/180YY | YG-200Y/200YY |
Drilling Depth (m) | 130 | 180 | 200 |
Open Drilling Diameter (mm) | 220 | 220 | 325 |
Final Hole Diameter (mm) | 75 | 75 | 75 |
Drill Pipe Diameter (mm) | 42-60 | 42-60 | 42-60 |
Drill Pipe Inclination (°) | 90-75 | 90-75 | 90-75 |
Power (kw) | 13.2 | 13.2 | 14.7 |
Weight (kg) | 920 | 950 | 1150 |
Dimensions (mm) | 2400*950*1400 | 2400*950*1400 | 2700*950*1770 |
Vertical Axis |
Vertical Axis Speed (r/min) | 142 285 570 | 130 300 480 730 830 1045 | 64 128 287 557 |
Vertical Axis Travle (mm) | 450 | 450 | 450 |
Hoist |
Single Rope Lift Force | 2000 | 2100 | 2500 |
Single Rope Lift Speed (m/s) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
Reel Diameter (mm) | 140 | 140 | 140 |
Wire Rope Diameter (mm) | 9.3 | 9.3 | 12.5 |
Wire Rope Capacity (m) | 27 | 27 | 35 |
Cobalt Tower |
Rated Load | 18 | 18 | 18 |
Effective Height | 6.5 | 6.5 | 6.5 |
Tower Specifications (mm) | 73 | 73 | 89 |
Mud Pump |
Model | BW95 | BW95 | BW145 |
Flow (L/min) | 95 | 95 | 145 |
Max Pressure (Mpa) | 1.2 | 1.2 | 2 |
Reciprocations No. (times/min) | 93 | 93 | 93 |
Suction Pipe Diameter | Φ51mm*4.5m | 51mm | 51mm |
High Pressure Pipe Diameter | Φ32mm*6m | 32mm | 32mm |
Characteristics
1, With automatic oil supply mechanism, improving drilling efficiency, reducing labor intensity.
2, The use of ball clamping mechanism instead of chuck, can achieve non-stop inverted bar, be easy to operate, safe and reliable.
3, With a hole-bottom pressure gauge, easy to control the situation in hole.
4, Compact structure,centralized handle, small footprint, light weight, strong decomposition, easy to move. Suitable for plain and mountain areas.

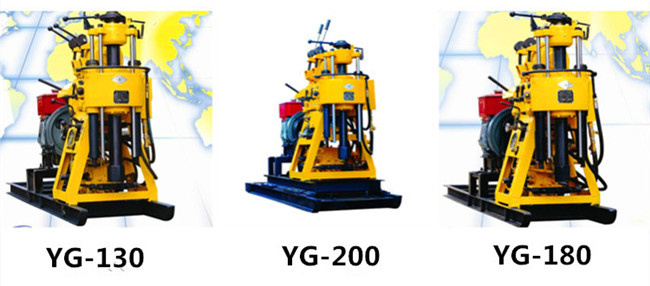

Product Display

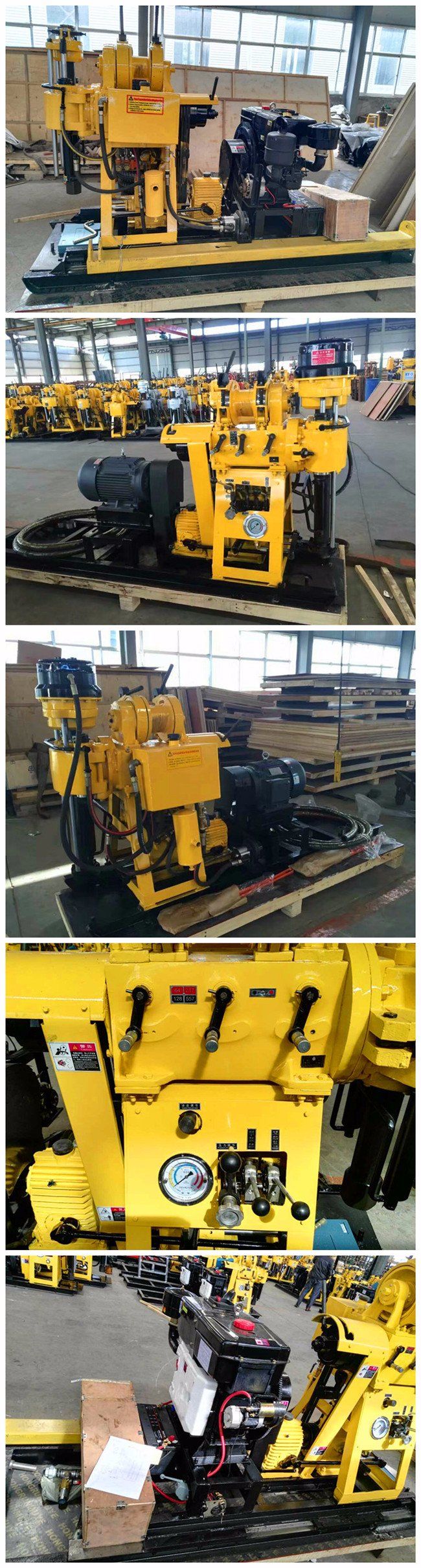

More Details
Working

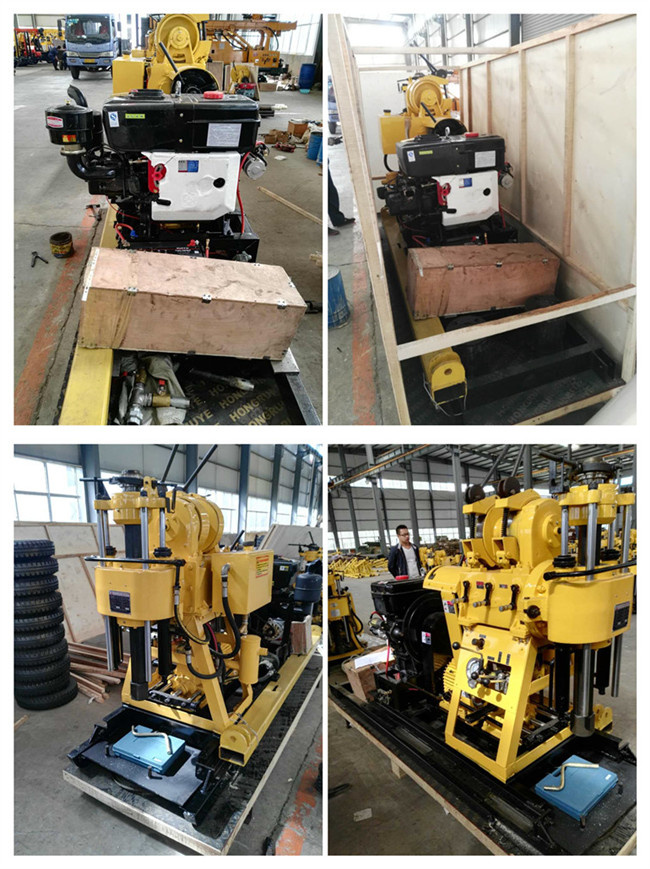

Packing and Shipping
FAQ Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.
Q2: How long is your delivery time?
A2: It is according to the model and quantity.
Generally it is 3-5 days if the machines are in stock.
It will be 15-30 days if you want to customize the machines.
Q3: Do you provide samples? Is it free or extra?
A3: Yes, we could offer you the sample machine.
But it's not free. You need to pay for the sample and the cost of freight.
Q4: What is your terms of payment?
A4: We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.

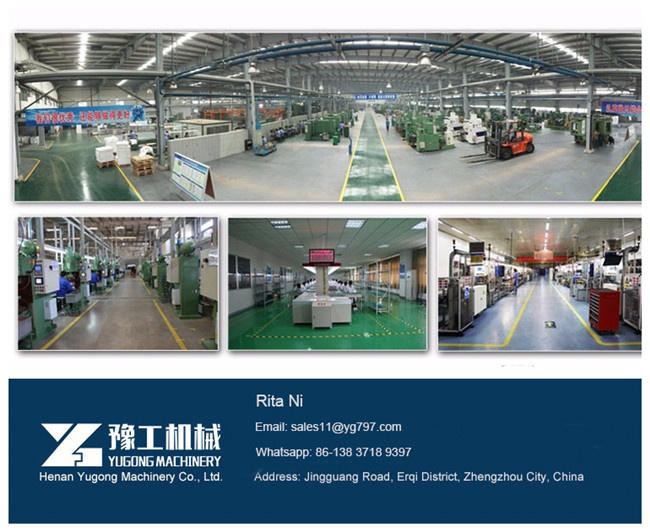

Company and Contact Information Henan Yugong Machinery Co.,Ltd. is specialized in machinery in China over 20 years.We are committed to researching and developing all kinds of construction machinery, drilling rig etc.Our company has more than 500 employees,including more than 30 senior technical staff and 30 international sales persons.We can supply high quality and professional services.
