| Prod Model: |
JW36 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity Range: |
110ton to 500ton |
| Power: |
380V/50Hz/3phase |
| Clutch Type: |
Oil Bath Wet Type Pneumatic Clutch |
| Overload Protected System: |
Hydraulic Pump |
| Lubircation System: |
Auto Grease Center Lubrication |
| Control: |
PLC |
| Frame: |
H Frame Steel Welded |
| Slide Guide: |
8 Faces Higher Precision |
| Options: |
Light Curtain, Inverter, Uncoiler, Feeder |
| Warranty: |
One Year |
| Type: |
General Punching Machine |
| Controlling Mode: |
Artificial |
| Automatic Grade: |
Semiautomatic |
| Power Source: |
Mechanical Drive |
| Precision: |
High Precision |
Product Description
power press

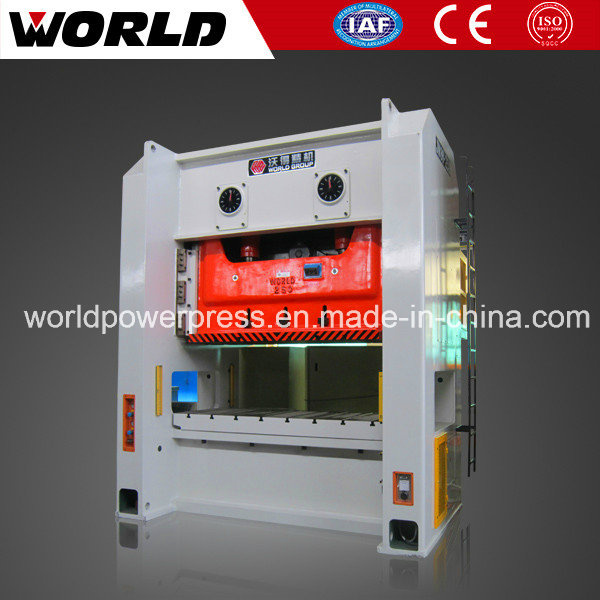

200ton H Frame CE Approved Automatic Power Press
Features:
1. Steel welded body, heat treatment;
2. Wet clutch, hydraulic overload protector;
3. Double crankshaft,
4. Quadranglar eight surfaces guideway;
5. Auto lubrication, electric die adjustment;
6. PLC control.
Details

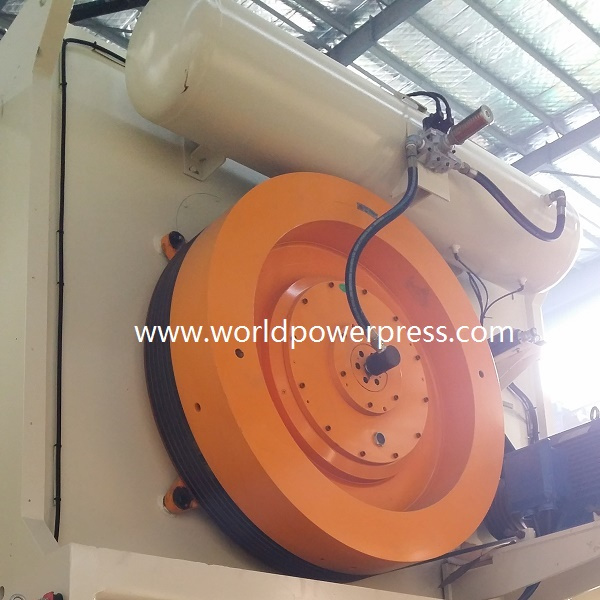

1) Wet type pneumatic clutch and brake, lower noise and longer service life. High quality seals ensure to prohibit the oil leak problem.

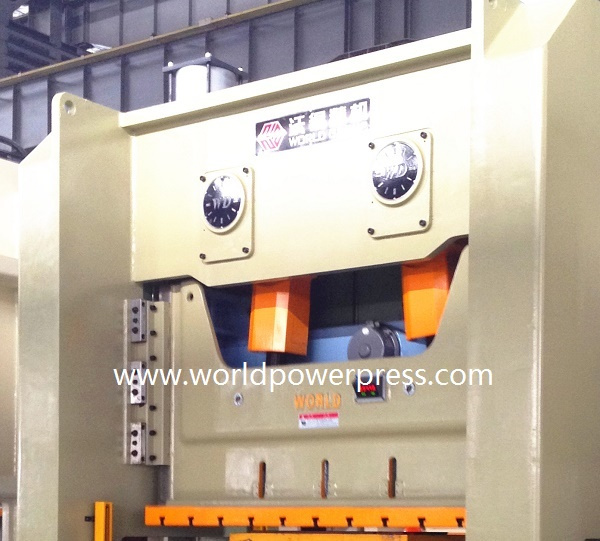

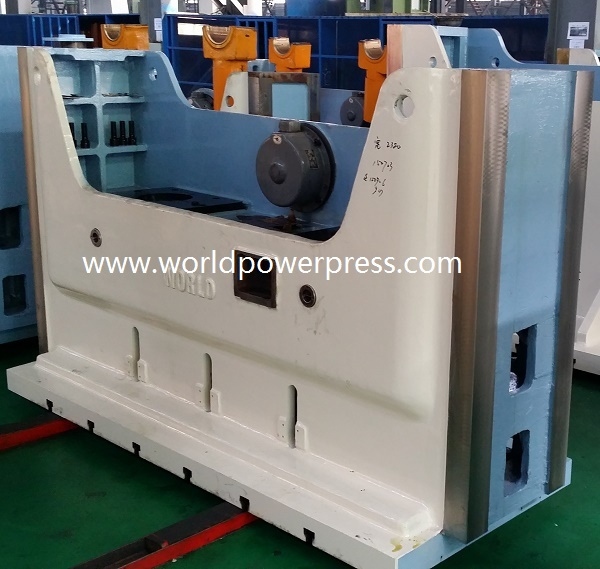

2) Double crankshafts pitmen totally eliminating side forces by reverse rotation. Welded steel plate framework with high intensity of machine body.
3) Eight side lengthened guide with high precision. Hydraulic overload protection system.
Parameters:
ITEM | UNIT | JW36-110 | JW36-160 | JW36-200 | JW36-250 | JW36-315 | JW36-400 | JW36-500 |
| Nominal Capacity | KN | 1100 | 1600 | 2000 | 2500 | 3150 | 4000 | 5000 |
| Slide Stroke | mm | 180 | 200 | 250 | 280 | 300 | 300 | 350 |
| Slide Strokes | Fixed | Times/min | 65 | 55 | 45 | 35 | 35 | 25 | 20 |
| Variable | Times/min | 35-65 | 30-55 | 25-45 | 25-35 | 25-35 | 20-25 | 15-20 |
| Max.Die Height | mm | 400 | 450 | 500 | 550 | 550 | 600 | 650 |
| Die Height Adjustment | mm | 90 | 100 | 110 | 120 | 120 | 120 | 120 |
| Slide Hole Size | Forward-Rear | mm | 700 | 780 | 860 | 940 | 1020 | 1120 | 1380 |
| Height | mm | 350 | 400 | 450 | 460 | 460 | 550 | 600 |
| Distance Between Uprights | mm | 1770 | 1970 | 2370 | 2470 | 2570 | 2670 | 3150 |
| Bolster Size | Forward-Rear | mm | 680 | 760 | 840 | 920 | 1000 | 1100 | 1200 |
| Left-Right | mm | 1700 | 1900 | 2300 | 2400 | 2500 | 2600 | 3000 |
| Thickness | mm | 155 | 165 | 170 | 180 | 190 | 200 | 210 |
| Slide Bottom Size | Forward-Rear | mm | 580 | 660 | 740 | 820 | 900 | 1000 | 1000 |
| Left-Right | mm | 1400 | 1600 | 2000 | 2100 | 2200 | 2400 | 2700 |
| Bolster Surface Height | mm | 900 | 900 | 1000 | 1100 | 1100 | 1100 | 1100 |
| Overall Dimensions | Forward-Rear | mm | 2050 | 2380 | 2630 | 2920 | 3100 | 3250 | 3400 |
| Left-Right | mm | 2670 | 2890 | 3310 | 3430 | 3550 | 3670 | 4500 |
| Height | mm | 3100 | 3340 | 3730 | 4110 | 4220 | 4300 | 4690 |
| Motor Power | KW | 11 | 18.5 | 22 | 30 | 37 | 45 | 55 |
| Weight(approximate) | kg | 19000 | 25000 | 33000 | 41000 | 45000 | 50000 | 63000 |
Shanghai Yingxin World Machinery Co., Ltd is a professional supplier and exporter of mechanical power press, hydraulic press brake and shearingring machines in China.
We can supply mechanical power press from 6.3Ton to 1600Ton, hydraulic press brake from 63Ton to 400Ton, hydraulic guillotine shear or swing beam shear with cutting depth from 6mm to 40mm, and feeders etc. With more than 10 years exporting experience, our machines have been used and approved by the market, such as Turkey, Russia, Norway, Germany, Brazil, South Africa, Saudi Arabia, Oman, Iran, Pakistan, Thailand and Indonesia.
We commit to offer best quality, reasonable prices and valuable technical assistance to every customer.
Warranty Policy
Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers. ) We can send the parts by courier if urgently needed while the buyer should pay the freight.
Installation Support
We can arrange our engineer to support the buyer to install the machines at buyer's factory. And the buyer should pay all the accommodations and round air tickets.
