| Prod Model: |
YSP23.5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Water Capacity: |
23.5L |
| Working Pressure: |
2.1MPa |
| Hydraulic Test Pressure: |
3.2MPa |
| Outside Diameter: |
314mm |
| Gas Cylinder Height: |
526mm |
| Wall Thickness: |
2.9mm |
| Empty Weight: |
12.5kgs/Unit |
| Filling Weight: |
10kgs/Unit |
| Delivery Time: |
20days |
| Gas Cylinder Standard: |
ISO4706/En1442 |
| Standard: |
Standard |
| Power: |
Hydraulic |
| Structure: |
General Cylinder |
| Pressure Direction: |
Double-acting Cylinder |
| Material: |
Steel |
Product Description

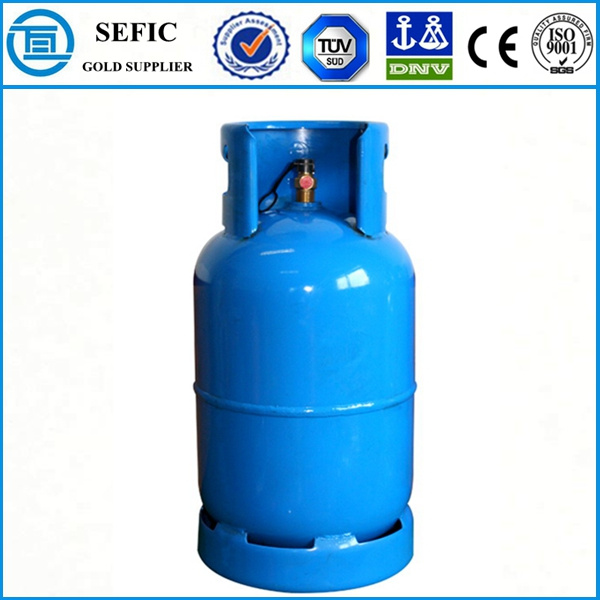

LPG Gas Cylinder Specification:
Water Capacity: 23.5L
Outside Diameter: 314mm
Wall Thickness: 2.9mm
Gas Cylinder Height: 526mm
Empty Weight: 12.5kgs/unit
Filling Weight: 10kgs/unit
Working Pressure: 2.1MPa
Hydraulic Pressure: 3.2MPa
Gas Cylinder: ISO4706/EN1442
Company Information:
Creative and Trustworthy Company:
Located in Shanghai, SEFIC is one of professional suppliers of gas equipment such as gas cylinders, storage tanks and gas filling stations and affiliated equipment parts such as gas cylinder valves, tulip caps and steel pipes. We have many years' experience in gas industry and have received a good reputation in this field. Our products have been exported to many countries such as U. S. A. And European countries and enjoy popularity all over the world.
Quality and Security System:
We have implemented strict complete quality and security control system, which ensures that each product can meet the quality and security requirement of our customers. We have been adopting the advanced science and technology to produce gas cylinders and affiliated equipment since our company is established. In addition, all of our products have been strictly inspected before shipment.
We Are Reliable Partners!
We are dedicated to realizing the largest profit for both our clients and ourselves. We have been making great effort to achieve this win-win project and sincerely hope we will have long-term partnership in the soon future!
All clients are welcome to our compy for visit!
Our Service:
1. We are not only gas cylinder supplier, but also the first-rate service provider.
2. We are prepared for your demand and question at any time.
3. Please feel free to send us message if you have any interest or question about our products.
4. We sincerely hope we can be partners in the coming future!
Contact Information:
If you need more information on this product, pls feel free to contact me.
Have a nice day and best regards.
Ada
Detailed Address: NO. 222, Meidan Road, Baoshan District, Shanghai, China 201908
Tel: 0086-21-66019676 Fax: 0086-21-66019679
|
LPG Gas Cylinder Specification |
Nominal Capacity
(L) |
Nominal Diameter
(mm) |
Working Pressure
(MPa) |
Wall Thickness
(mm) |
Height
(mm) |
Weight
(kg) |
Hydraulic Test
(MPa) |
Leakage Test
(MPa) |
Filling Medium |
|
4.7 |
200 |
2.1 |
2.5 |
305 |
3.5 |
3.2 |
2.1 |
LPG |
|
7.3 |
255 |
2.1 |
2.5 |
300 |
5 |
3.2 |
2.1 |
|
12 |
244 |
2.1 |
2.5 |
420 |
6.5 |
3.2 |
2.1 |
|
23.5 |
314 |
2.1 |
2.9 |
526 |
12.5 |
3.2 |
2.1 |
|
26.2 |
294 |
2.1 |
3 |
596 |
14 |
3.2 |
2.1 |
|
26.6 |
302 |
2.1 |
3 |
575 |
15.2 |
3.2 |
2.1 |
|
35.5 |
314 |
2.1 |
3 |
680 |
16.5 |
3.2 |
2.1 |
|
118 |
400 |
2.1 |
3.5 |
1200 |
48 |
3.2 |
2.1 |
