| Price: | US $ 50/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Paypal,Money Gram |
| Prod Model: | GL4.5 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: | Medium Air Compressor DTH Hammer |
| Drilling Dia: | 110-150 |
| Hammer Length: | 917 |
| Outside Dia: | 98 |
| Weight: | 25 |
| Working Pressure: | 0.8-1.2 |
| Air Consumption: | 11 |
| Torque: | 300 |
Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
| Products>> | Drilling equipments and Drilling tools |
| Drilling Rig | DTH drilling rig, Blasthole drill rig, Water well drilling rig, Oil well drilling rig, Piling drilling rig, Anchor drilling rig, Rotary drilling rig, Auger drilling rig, CBM drilling rig etc. |
| Drillling Auxiliaries | DTH hammers, DTH bits, Downhole Motor, Pumps, Tricone bits, PDC Bits, Button Bits, Chisel Bits, Cross Bits, Drill pipe, Drill collars, Cutter Picks, etc. |
Due to the continuous effort and improvement, Glorytek's market share keeps increasing rapidly, meanwhile, the perfect after-sales service is providing a strong support and guarantee for the expanding of business cooperation. Till now, we enjoy the good reputation and our products have been winning the confidence of a lot of domestic and overseas customers like Canada, Australia, Nigeria, Pakistan, Russia, Ethiopia, Indonesia, Malaysia, etc. more than 30 countries.

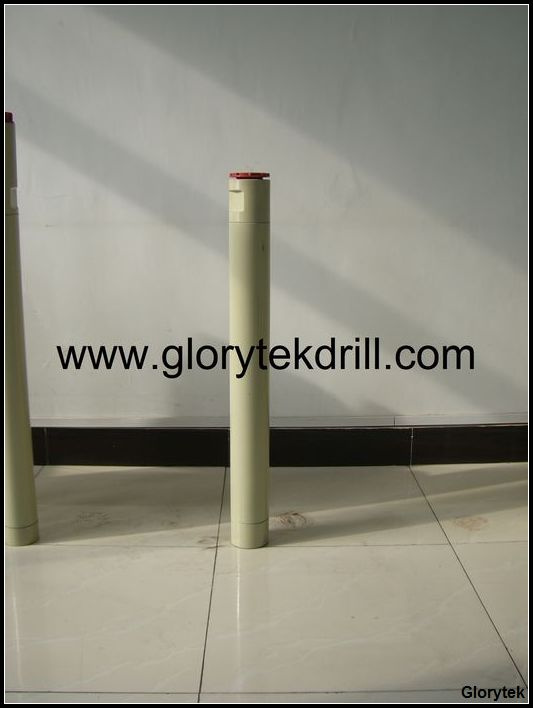

Medium Pressure DTH Hammers
Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc.
hey are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness,
high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.
Type and Technical Specification of Medium Pressure DTH Hammers
Item | GL930 | GL4.5 |
Drilling Dia. (/mm) | 90-120 | 110-150 |
Hammer Length(mm) | 870 | 917 |
Outside Dia.(/mm) | 80.5 | 98 |
Weight(kg) | 25 | 36 |
Working Pressure (Mpa) | 0.8-1.2 | 0.8-1.2 |
Air Consumption (M3/Min.) | 6 | 11 |
Torque(N.M) | 180 | 300 |
Impact Frequency (Times/Min.) | ≥700 | ≥800 |
Connection 1 | External API 2- 3/8" | Inner API 2- 3/8" |
Connection 2 | 54-6 | 65-6 |
