| Prod Model: |
SY-DW-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter: |
10.5-11.5mm |
| Beads/Meter: |
40PCS |
| Fixing Method: |
Rubber+Spring |
| Delivery Detail: |
7 - 15 Days |
| Certification: |
SGS |
| Line Speed: |
18-25 M/S |
| Cutting Speed: |
0.5-5 M2/H |
| Wire Life: |
0.5-7m2 |
| Manufacturing Experience: |
23years |
| Graininess: |
300# |
| Thickness: |
5mm |
| Shape: |
Round |
| Kind: |
Stone Sawing Machine |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Customized: |
Customized |
| Brand: |
Sunny |
| Saw Blade External Diameter: |
11.5 |
| Specification: |
5 |
Product Description

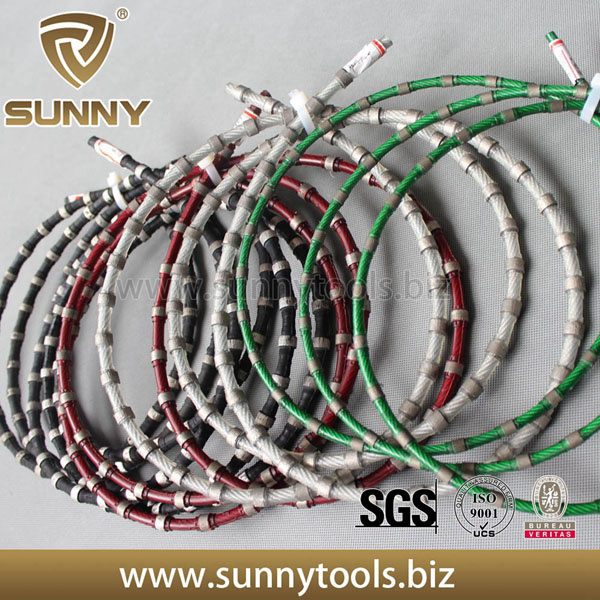

Diamond Wire Saw Rope for Concrete and Reinforced Concrete
The quarrying wire is used mainly for cutting directly in the quarries or for squaring the blocks.
The diamond wire is essentially composed of three main components:
1. Steel cable with different diameter depending on the application.
The cable is formed by 7 secondary cables with different diameters depending on the type.
2. Electroplated or sintered diamond beads.
Bond and diamond studied for the material to cut.
3. Assembly with springs, rubber or plastic.
Protects the steel cable from the abrasive action of the stone and also absorbs the energy of the cutting.
Friction of the beads against the stone.
When place order of diamond cable please kindly informs:
1. The power and technical parameters of wire saw machine.
2. The hardness and chemical information of granite material, if possible.
3. The usual dimension of cutting bench, especially the working height.
4. Expected cutting performance in both speed and life.
5. Special requirement if any.
Diamond Wire Saws For Concrete |
Designed for concrete, reinforced concrete,and steel works, can be used for demolition of houses and bridges. cutting underwater steel tubes, cables, sunken ships. etc. |
Specification and performance parameters of wire saws |
| Bead Diameter | Beads/Meter | Fixing Method | Application | Line Speed | Cutting Speed | Wire Life |
| Ø 11.5 |
40 | Rubber+Spring | Highly Reinforced Concrete | 20~22 | 0.8~2.0 | 1.0~2.5 |
| Ø 10.5 |
| Ø 11.5 | 40 | Rubber+Spring | Normally Reinforced Concrete | 22~25 | 2.0~5.0 | 2.0~7.0 |
| Ø 10.5 | 40 |
| Ø 11.5 | 40 | Rubber+Spring | Steel/Metal structure | 18~20 | 0.5~1.0 | 0.5~1.2 |
| Ø 10.5 | 40 |
Other specifications are available upon requirement.
|
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
