| Prod Model: |
NM-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Battery: |
Ni-MH Environmently Friendly |
| Attachment: |
7 Attachments |
| Certifications: |
Ce 0123 & ISO Certification |
| Kind: |
Orthopedics |
| Certification: |
ISO13485 |
| Type: |
Traumatic Surgery |
| Group: |
No Limit |
| LCD Display: |
/ |
| Source: |
/ |
| Anesthesia: |
/ |
| Type Of Operating Light: |
/ |
Product Description

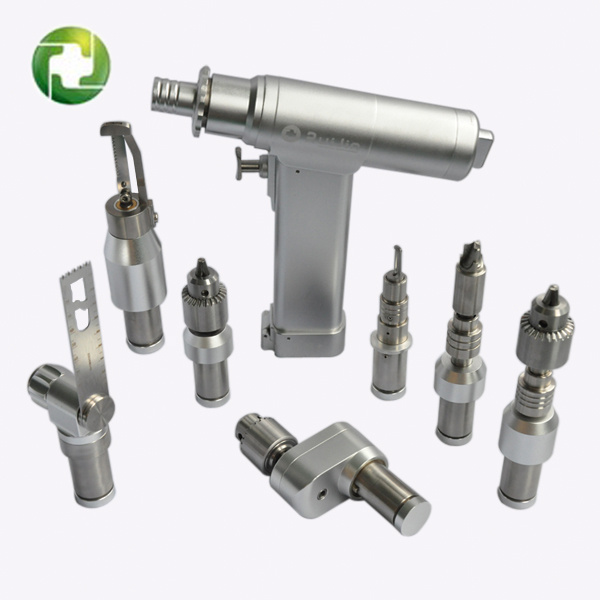

2016 OEM new design autoclavable sterilized medical electric saw and drill (NM-0123)1. Techinical data:
Handpiece working voltage14.4V
Output power20W
Unit rise in temperature0-25 ° C
Charger Input voltage AC220V/50Hz
Output power 14.4V, 900mA
Input power 30VA
Battery Voltage 14.4V
Charging time about 3 hours
1)Bone drill speed: 0-1300rpm
2)Canulate drill: Speed0-600rpm
3)Oscillating saw: 0-18000osc/m
4)Acetabular reamer: 0-300rpm
5)Craniotomy drill: 0-900rpm
6)craniotomy mill: 0-40000rpm
7). Sternum saw: 0-15000osc/m
8)saw non-load noise: 0-75dB
9)drill non-load noise: 0-65dB
10) diametre run-out: 0-0.5mm
11)oscillations: 0-15000rpm
2. Standard configuration:
One hand piece
One charger
Two batteries
Two aspetic battery transfer rings
One bone drill adapter
One oscillating saw adapter
One canulate drill adapter
One sternum saw adapter
One cranialtomy drill
One cranial mill adapter
One reamer adapter
3: Technical merits:
I: Mainframe is made of Stainless Steel, durable, long working time, the assecories can be selected freely by different operation.
II: Quick chuck: Imported chuck ensures outstanding performance during operation.
III: Sternum saw: Both 360° Rotating head and blade guard can protect Soft tissue around sternum.
IV: Craniotomy mill: 40000r. P. M rates assures fast, effient and safe process in craniotomy.
V: Oscillating saw: 360° Rotating head can be applied to any surgical Sites. Wrenchless collect allows for easy, fast and safe loading and unloading blades. VI: Reamer: Hi-torque, ideal for acetabulum or medullary operation Available to all brands mill universal.
VII: Wire and pin chuck: With a canula diameter 4.0mm applide to various intramedullary pin or kirschner pin fixing opration easily and convenientiy.
VIII: Cranial drill: Auto-pause offer perforation ensures safety in neurosurgery.
IX: Highest quality Surgical Electric Orthopedic Drill.
X: Perfect ergonomic design.
XI: Can meet different kinds of surgery operation.
4. Application
Applied in orthopedic, traumatic, articular, amputation catagma joint, plastic surgery, veterinary surgery, neurosurgery, thoracic surgery and so on
5. Warranty:
1) 24 hours responble time to your email inquiry
2) 12 months guarantee for the hand piece (main engine)
3) 3 months guarantees for the accesory (battery, saw blades, cutter blades, drill bits, bistrique, etc
6. Payment
T/T, Western Union, Moneygram & Paypal are all for your choices.
Recommandations for Commonly Used Configuration:
Joint Replacement Operation: Oscillating Saw, Acetabulum Reaming DrillTrauma Operation: Canulate Drill, Bone Drill, Torque LimiterCranial Operation: Crania
Wuhu Rui Jin medical equipment was established in 2007, is located in the economic prosperity of the Wanjiang Pearl ---- Wuhu City, is a large scale, product range, market network and improve medical device manufacturers.
Enterprise development, production and sale of medical equipment as the main development has mainly orthopedic products used in hospitals and operating rooms. The main products are:
First, medical electric saw drill series, including medical bone drill, hollow saw, pendulum saws, reciprocating saws and other medical electric plaster saw.
Second, micro-medical electric burr series.
Third, medical attract cutting series.
Fourth, rapid sterilization of medical devices. And has the perfect balance between performance and price.
Founded three years, has been "first-class product quality" for the purpose "to meet customer needs" as their responsibility. Business in an increasingly competitive medical device market, to maintain good long-term development. Wuhu Rui Jin Welcome all new and old friends come to visit and negotiate business!
