| Prod Model: |
VAM5 |
| Product Name: |
Professional Speaker |
| High Frequency Driver: |
3/4" Ribbon Tweeters |
| Low Frequency Driver: |
.25" Aramidglassfiber |
| Power Rating Of High Frequency: |
30 Watts |
| Power Rating Of Low Frequency: |
40 Watts |
| Max Peak Spl: |
104 dB |
| Input Impedance/Balanced: |
10 Kohm |
| Input Impedance/Unbalanced: |
10kohm |
| Encolosure Construction : |
MDF |
| Input Power: |
AC 110-240V |
| Noise: |
<102dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Knob Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
RoHS |
| THD: |
>0.01% |
| Monitor: |
No |
Product Description
2017 Hot Sale Professional 5-inch Active Sub Woofer Speakers for home speaker systems Product Description
Brief Introduction: This series monitors speakers from we Vistron Audio is newest designed.
It is a powerful near field studio monitor speaker with special fiber glass composite woofer which produces outstanding dynamic frequency responses.
Such series audio speakers have 2 items: VM5 with 5.25" woofer and VM8 with 8" woofer.
For this one VM5,which is designed for both project and professional studio.
The speakers combines a 5.25" fiber glass composite woofer with a round near firing bass port and a 3/4" soft silk dome tweeter with 70 Watts output (30W HF,40W LF).
of CLass AB active amplifier to deliver a frequency response of 45 to 30K Hz with a maximum SPL of 108 dB.

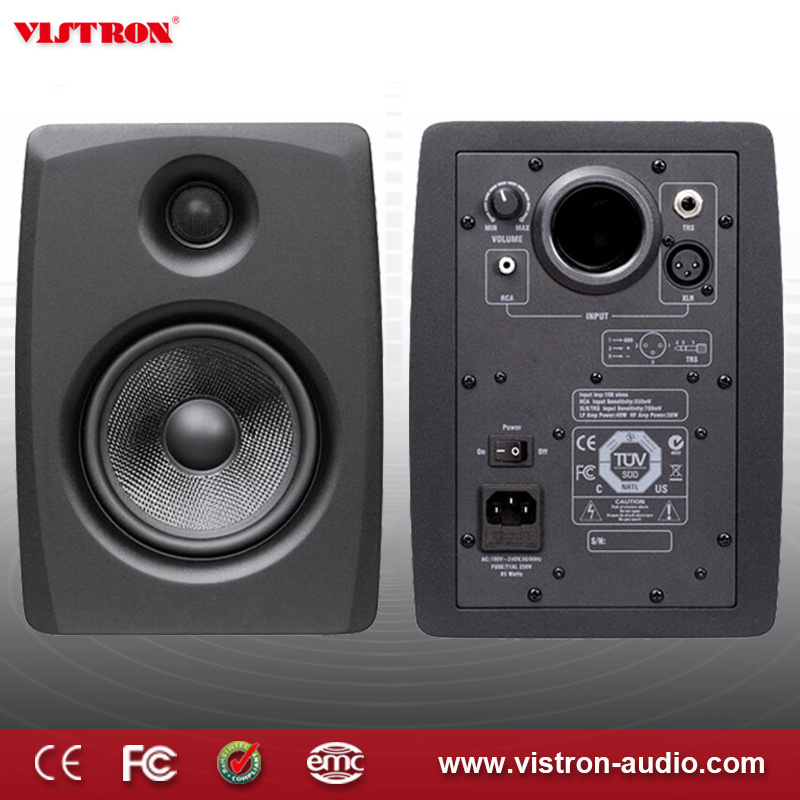

For I/O, the unit features unbalanced RCA, balanced 1/4" TRS, and balanced XLR connectors. LED indicator lights provide visual feedback for when the monitor is on (blue) or in standby mode (red). A rear panel volume knob allows you to adjust the output level.
Features of the portable speakers: * 5.25" woofer and 3/4" tweeter with active amplifier
* Soft silk dome tweeter
* Glass aramid composite woofer cone
* Bi-amplified with powerful range
* Specially shape
* Magnetically shielded
*All MDF cabinet
* The portable speaker designed and made by our factory
* OEM and ODM are welcome.
Specifications of the bookshelf speaker: | Item name | VM5 active bookshelf monitor speaker |
| Frequency response | 45-30kHz +/-2.0dB |
| High Frequency Driver | 3/4" Ribbon tweeters |
| Low Frequency Driver | 5.25" AramidGlassFiber |
| CabinetDimensions (HxWxD) | 199 x 181 x 251 mm |
| Net Weight | 3.6 Kg |
| Power rating of High Frequency | 30 watts |
| Power rating of Low Frequency | 40 watts |
| Max peak SPL | 104 dB |
| Amplifier type | Speaker with Class Ab amplifier |
| Input Impedance/Balanced | 10KOhm |
| Input Impedance/Unbalanced | 10KOhm |
| Crossover frequency | 3KHz |
| Subsonic Filter | 45Hz |
| Encolosure construction | MDF |
| Configuration | 2-way powered monitor speaker |
| Use field | Home theater speaker system |
| Input Power | AC 110-240V |
| Input methods | Unbalanced RCA,Balanced 1/4" TRS,Balanced XLR |
| Product color | Black vinyl wrap |
Notice: The VRT series active monitor bookshelf speakers have different size and power rating:
VM5 with 5.25" woofer, 70 watts output power RMS
VM8 with 8" woofer, 160 watts output power RMS
Except for above items, we also have many other speakers such as active and passive speakers,monitor speakers,bookshelf speakers,portable & floor speakers,
bluetooth speakers,bluetooth / wifi speakers and so on. All products can be do customized design, just contact me for more details.

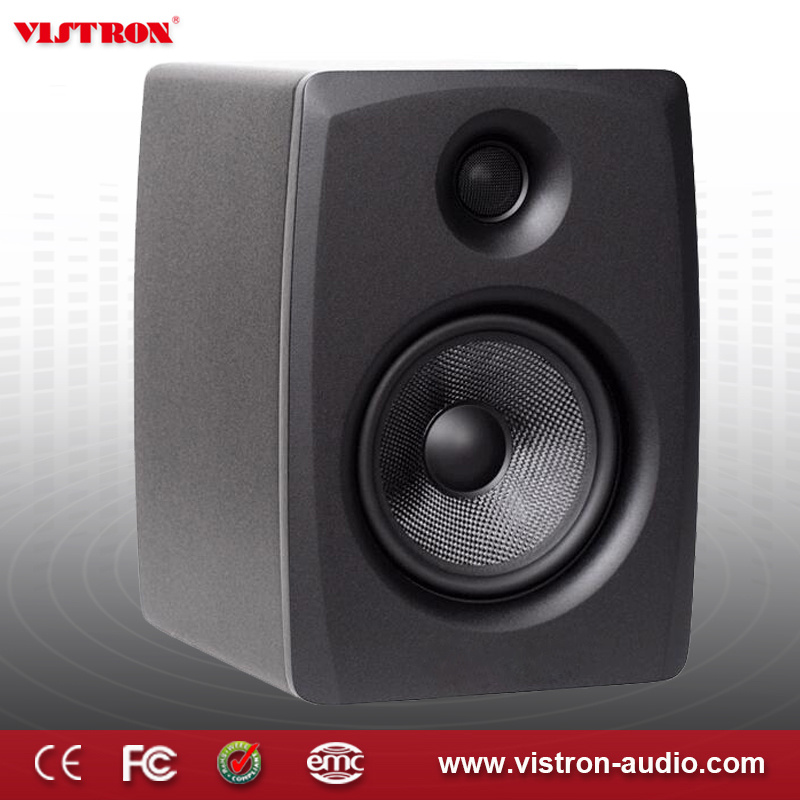

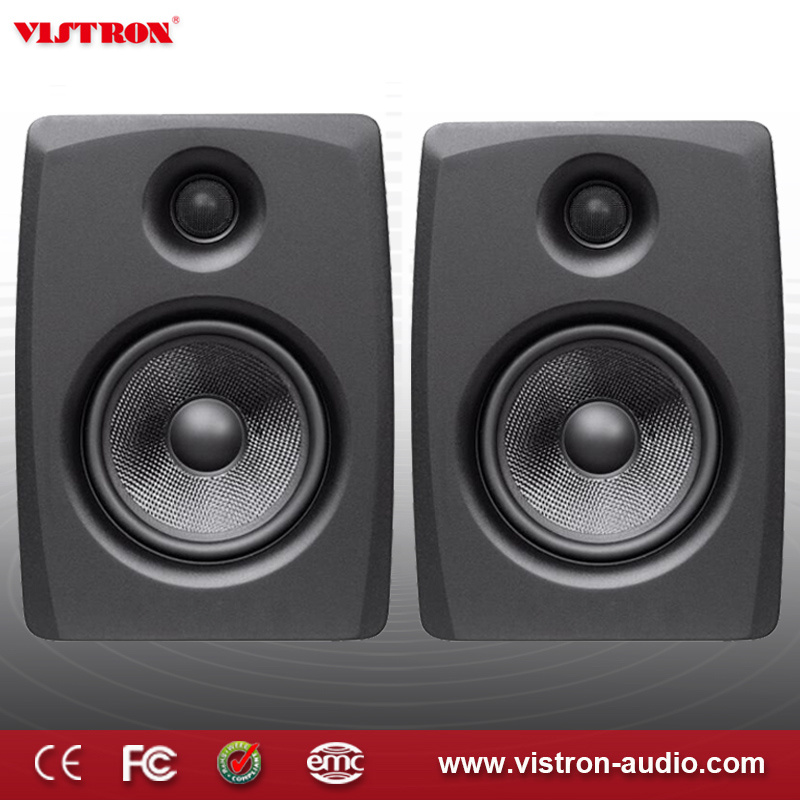

Pictures of the active monitor speakers:
Packaging & Shipping Products packageThe home powered speaker packing info:
1 piece speaker packed in a giftbox firstly;
Box size:285*240*308 MM;
1 piece portable speakers packed in a outer carton;
Carton size:300*250*328mm.
Net weight for per speaker: 3.6 kgs
Gross weight: 5 kgs
Accessories: RCA audio cable, user manual
Giftbox and carton can be do OEM packing as your requirements.
ShippingFor samples, we may choose International express such as Fedex, UPS, DHL, EMS,etc
For mass production order, we may select sea and air transportation.
Our Services R&D
We are professional audio products manufacture for 10 years.
Our R&D team dedicated to the creation of new and innovative products,can fulfill our customers' specialized OEM orders.
OEM and ODM
We have several experienced engineers to meet your demands,make your ideas to the real products!
1).Shells ----make different Logo,Color,Print,etc. for shells;
2).Solution ----make products with different functions;
3).Accessories ----make products with different language manual,port etc;
4).Other Requirements.Just Contact me.
QC
We pay attention to High Quality.
All raw materials and accessories must be tested before entering production facilities.
Mass production will begin only if the products have been tested and have passed inspection.
During mass production, personnel will periodically check products to ensure randomized testing.
Before shipping,our QC will check it again strictly to ensure the High Quality.
All products 100% QC before shipment.
Warranty & Return
We offer one-year warranty for our products.
As long as there's no man-made problem, usually we can just add some pieces in your next order.
Professional serviceBest production capability ,best quality control, Best Service .
What we can provide to you is not only just the products,but also the satisfying service.
Well-trained and experienced staffs to answer all your questions in time.
FAQ
Q:How to process an order? What about prices?
A: Please send an inquiry or contact with us online, after receiving your inquiry we will reply you with prices and information,Or catalog with full prices.
Q:If I can get a samples?
A: We are honored to offer you samples for testing before placing order.
Q:Can I have my logo printed on the products and packing?
A: Totally acceptable, OEM service grown up for many years, thank you.
Q:Could you produce the products as my idea?
A:Of course,we have experienced enigineers to design the expected items as you want,we have much experience at ODM.
Q:What is your payment terms?
A:For sample:T/T, Paypal, west union;
For production: T/T, L/C,or negotiable terms.
Q:What would the delivery time be?
A: Regularly 30 days after order confirmed, or we can talk details case by case.
Company InformationWelcome to Vistron Audio Equipment Co.,Ltd!
We are professional audio products manufacture with more than 10 years experience, located in Dongguan China the "world factory".
Our main products including audio speakers, speaker drivers, Subwoofers, DJ equipment, DJ mixer, Midi controllers, DJ CD players, etc.
With much experience of OEM/ODM service and several audio field engineers, we could makes your ideas to the real perdfect products!

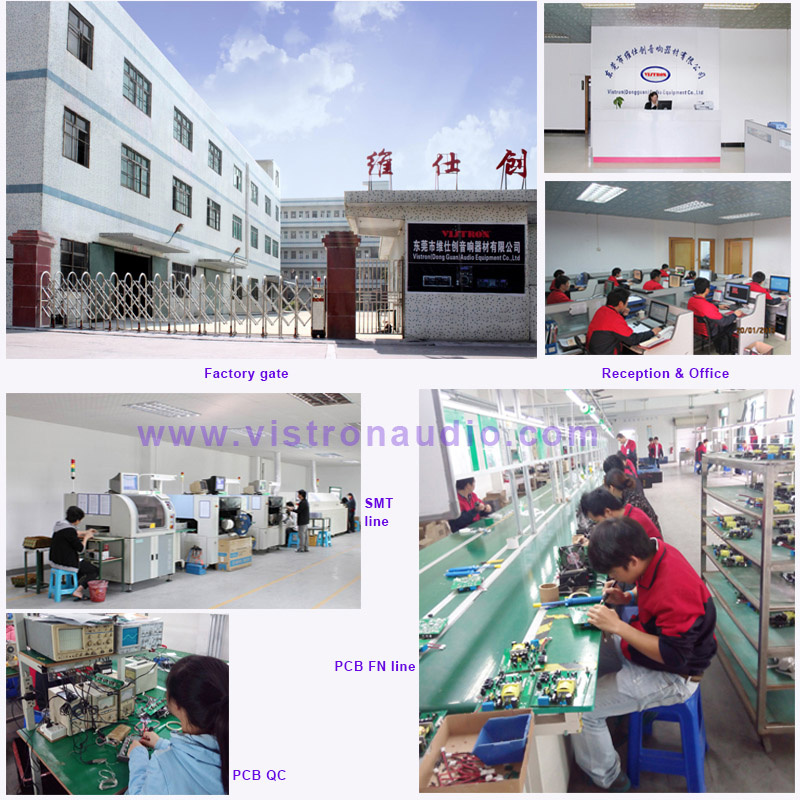

Factory view:
