2017 Sunny Diamond Wire Saw for Granite Quarry

2017 Sunny Diamond Wire Saw for Granite Quarry
Price: US $ 30-40/Meter
Trade Terms: FOB
Min Order: 1/Meter
Pay Type: T/T,Western Union,Paypal
Prod Model: wire saw
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bead Diameter(mm): 7.2 - 11.5
Bead Number(mm): 37/40
Line Speed: 18 - 38
Fixing Method: Rubber/Plastic, Rubber+Spring
Cutting Speed: 0.5 - 10
Life Span: 0.5 - 45
Certifcate: ISO, BV, ISO 9001:2008
Kind: Stone Sawing Machine
Saw Blade External Diameter: Diamond Wire Saw

Product Description

Diamond Wire Saw for Granite Quarry

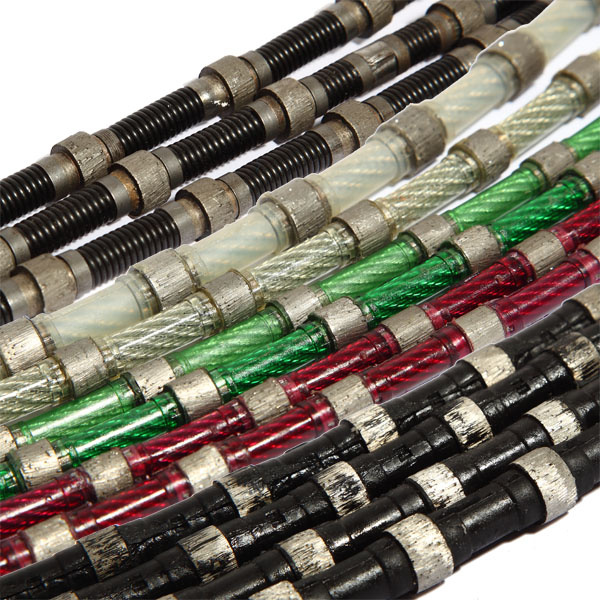

Besides Premium Quality Granite Diamond Wire For Granite And Sandstone, we also produce following type:
Diamond wire for marble cutting
Diamond wire saw for granite quarry
Diamond wire saw for marble
Diamond wire saw for cutting reinforced concrete
Multi wire saw

1. Use for Granite/sandstone cutting.
2. High quality cable insure less breakage and good tension.
3. Keep Sharp and long life
4. Original Rubber/plastic bring better performance in tough environment

Description:
Diamond wire-saws are widely used for granite quarries. The main specialties of diamond wire-saws are:
· To be able to used for great area granite quarries cutting
· To get high percentage of forming dimension stone
· High manufacture efficiency
· Safety, low- noise, no- dust and friendly surroundings
· Low cutting cost.

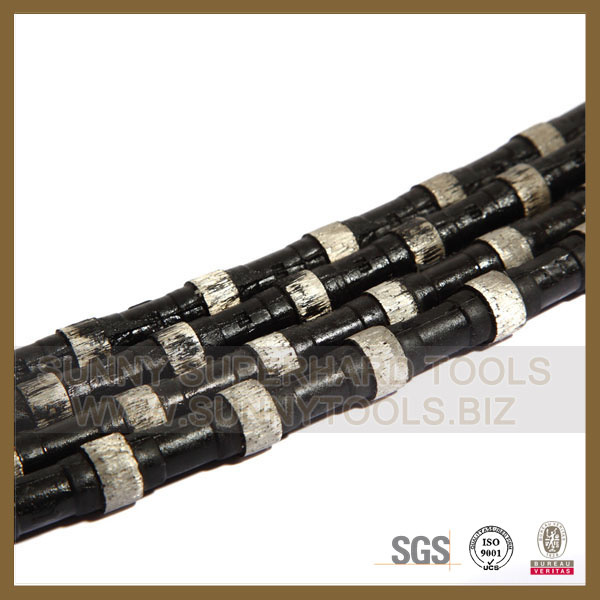

The advantage of rubber wire saw for granite quarry:
1. The rubber adheres better to the beads and support cable, which protects it better from the action of abrasive pastes, in particular when the cable takes up small radii of curvature (beginning and end of quarry cuts).
2. The rubber easily withstands increases in temperature caused by badly controlled water spraying, which often happens in a quarry, whereas plastic softens and losses its strength properties.
3. The flexibility of a cable fitted with rubber is greater, which reduces the risk of irregular wearing of the beads (ovalisation phenomenon).
37-75KW wire saw machines are more used for granite quarry, the water spraying between 25-50 L/min according to the cut dimension.

Recommendations:
· The rotation of the wire should be regularly checked.
· The worn condition of beads should be regularly inspected.
· The worn condition of connections & the beads near connections should be regularly checked. Change connections when it's needing.
· The cable tension is set in 250-300kg(Φ 4-5mm cable).
· Adjust the linear speed of the wire according to the material being sawn:
· During the sharpening of a new wire, the liner speed should be reduced 2-3 m/s from the above standard.
· Water requirement is between 15-25L/min.

Kindly Noted, when place order please inform the following:
Diameter of the Wire
Wire Type (rubber or rubber+spring)
Granite Type (Hard, Medium, Soft, or Abrasive)
Quantity (How many Meters)
Wire Saw Machine Power (How many KW or HP of the motor)
Expected cutting speed and life(M2)
Expected shipping date

Bead DiameterBeads/MeterFixing MethodApplicationLine SpeedCutting SpeedWire Life
Ø11.540High quality rubbergranite quarry24~284~88~18
Ø11.040
Ø11.037High quality plasticgranite squaring24~285~712~20
Ø10.537
Ø11.040High quality rubber
Ø10.540
Ø9.037High quality plastic granite profiling24~283~410~14
Ø8.5/837
Other specifications are available upon requirement.
Bead DiameterBeads/MeterFixing MethodApplicationLine SpeedCutting SpeedWire Life
Ø11.5
28-32
Spring connectionmarble quarry33~385~830~45
Ø11.0
Ø11.037High quality plasticmarble squaring30~358~1030~40
Ø10.537
Ø9.037High quality plasticmarble profiling30~358~1025~40
Ø8.5/837
Other specifications are available upon requirement.
Bead DiameterBeads/MeterFixing MethodApplicationLine SpeedCutting SpeedWire Life
Ø11.540Rubber+SpringHighly Reinforced concrete20~220.8~2.01.0~2.5
Ø11.0
Ø10.5
Ø11.540Rubber+SpringNormally Reinforced concrete22~252.0~5.02.0~7.0
Ø11.0
Ø10.5
Ø11.540Rubber+SpringSteel/Metal structure18~200.5~1.00.5~1.2
Ø11.0
Ø10.5
Other specifications are available upon requirement.
Bead diameterBeads/MeterFixing MethodApplicationLine SpeedCutting SpeedWire Life
Ø9.037High quality plasticHard granite20~251~28~12
Ø8.5
8
7.2
Ø9.037High quality plasticMid-hard granite22~262~310~15
Ø8.5
8
7.2
Ø9.037High quality plasticSoft granite24~283~512~20
Ø8.5
8
7.2
Other specifications are available upon requirement.

Company infomation:

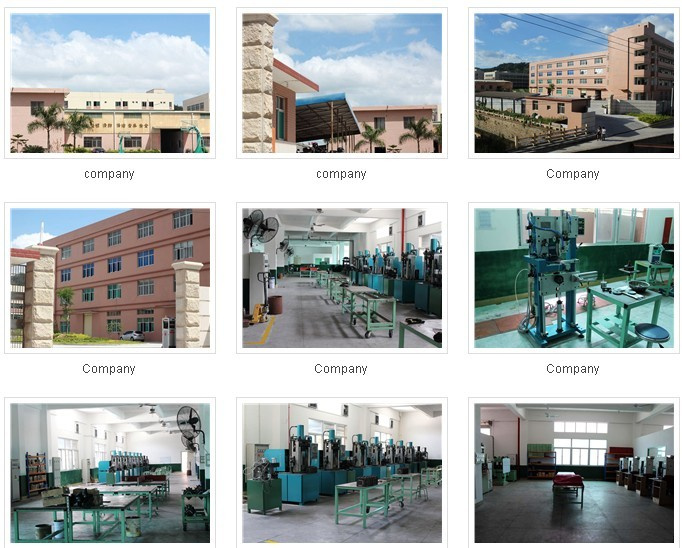

QUANZHOU SUNNY SUPERHARD TOOLS CO.,LTD is a professional and dynamic diamond tools manufacturer,established in 1993, located in Quanzhou, Fujian Province, China. Factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. Main Products:
        Dimaond construction tools: Concrete blade, wire saw, grinding shoes, grinding wheels, core drill bits, etc)
        Diamond Stone Tools (Saw blade, Segment, Wire saw,Calibration rollers, Fickerts, Frankfurt, Cup wheel, Profiling wheel, Polishing pad, Brush,Finger bit, Core drill, etc)

We wish to get your collaboration to achieve our objectives together!




FAQ:

PAYMENT

1. TT, western union, Money Gram and PayPal

2. 100% payment before delivery

3. To the Bulk order, the L/C is also can consider

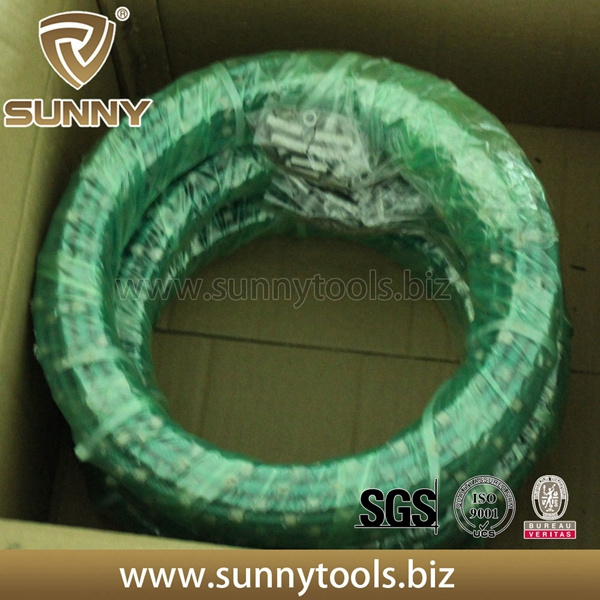

SHIPPMENT

Delivery time:  Within a week after payment

Transport ways choose:

1. Urgent order with less weight or samples SUNNY recommend express service.
2. Normal (regular) orders which weight over 45kgs SUNNY recommend Air Cargo.
3. Big diameter saw blades or heavy weight SUNNY recommend Sea Cargo.

QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.

Main Products:

Cutting Tools (Saw blade, Segment, Wire saw etc)

Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)

Drilling Tools (Finger Bit, Core drill etc)

The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.

From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "

In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.

We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.

The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!

Our aim is to provide our clients stable and consistant quality with competitive price.

Advantages enable clients benefits from our tools.

1. Experienced bond system

2. Advanced equipment and high grade raw material

3. Strictly production procedures control and quality inspection.

4. Customer's active feedback and support help us developing fast.
