| Prod Model: |
ELE2040 |
| Product Name: |
CNC Plasma Cutting Machine |
| Power(W): |
2.5kw |
| Weight: |
2400kgs |
| Working Area: |
2000*4000*200mm |
| Motor And Driver: |
750W Panasonic Servo Motors and Drivers |
| Lubrication System: |
Automatic Lubrication System |
| Structure: |
Frame Structure |
| Cutting Thicknest: |
0.5-22mm Stainless Steel |
| Software: |
Artcam/Ucancam |
| Machinery Control System: |
Start X3 Type Series Control System |
Product Description

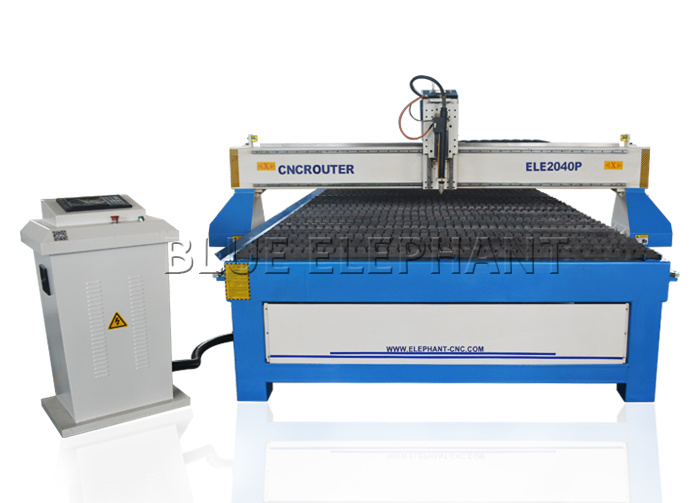

2040 CNC Pipe Plasma Cutter for Welding Tube Cutting Machine
CNC Plasma Cutting Video on YouTube: https://www.youtube.com/watch?v=aUx9P2pC9CwAdvantages of sheet metal homemade cnc cutting machine:
- Fast cutting speed,high precision and low cost.
- With firm and reasonable structure,the machine is easy to operate and durable for use.
- The cutting incision is thin and tidily and can avoid the second processing.
- High configurated CNC system,auto arc-striking and stable performance.
- Together with other advertising equipments,they form an advertisement producing line which completely solve the problem of traditional manual mode.
- Working with computer and support G code and files of Uncannest software (specilized in cutting metal material) (optional Fastcam software)
- It can cut metal plate of advertising 3D lighting letter and flute profile letter with high cutting precision.(USA power is optional)
- Start control system and with THC Function.
-
Parameters of sheet metal homemade cnc cutting machine:
Name | Specification |
Product name | ELE2040 sheet metal homemade cnc cutting machine |
Working Area(X*Y*Z) | 2000*4000*200MM (Can be Customized) |
Machine Structure | Frame structure |
X Y Guide Rail | Taiwan 25# PMI/ABBA Square Rail |
X Y Transmission | Imported Rack gears |
Drive Motor | 750W Japan Panasonic Servo Motors and Drivers |
Control System | START X3 Type Series Control System with wear parts for you Screen is 10.4 inch
Resolution: 800*480
Memory: 4G |
Max thickness | 0.5-22mm |
Plasma Generator | Hyperthem 200A Power |
Lubrication System | Automatic Lubrication System |
Working Voltage | 380V, 3Phase, 50Hz |
G.W. | 2400KGS |
PS:All the working area and specifications can be customized according to your requests.

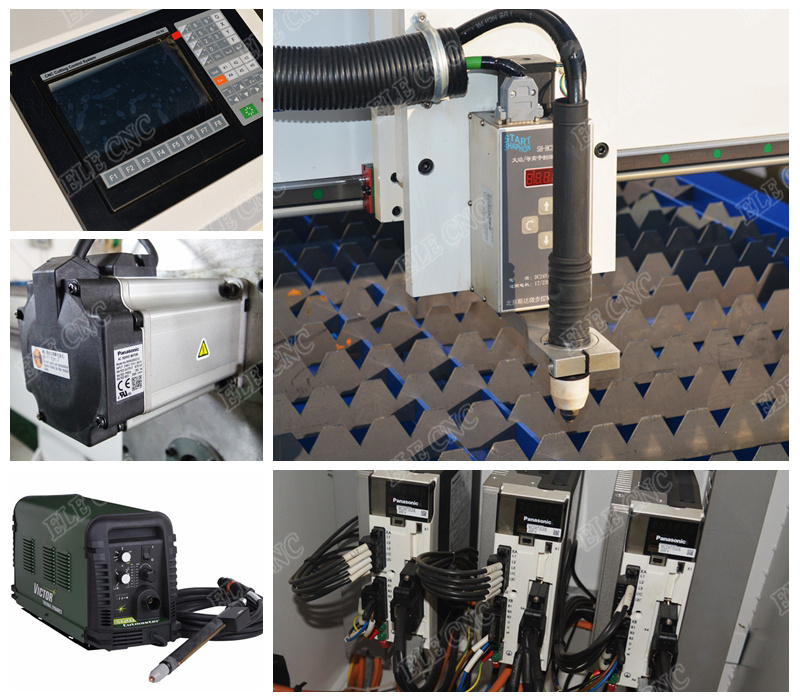

Product details for sheet metal homemade cnc cutting machine:
Features of sheet metal homemade cnc cutting machine:
- Effective working area: 2000*4000mm
- Plasma & Flame cutting head
- America Hypertherm 200A
- PMI Linear guide for 25mm
- Cutting thickness is 3mm -200mm stainless steel
- Japan 750w Panasonic servo motor
- Electronic PCB foil keyboard (one machine)
- Automatic oil lubrication
- 3 phase 380V 50HZ/60HZ
- START (X3 series) with THC function

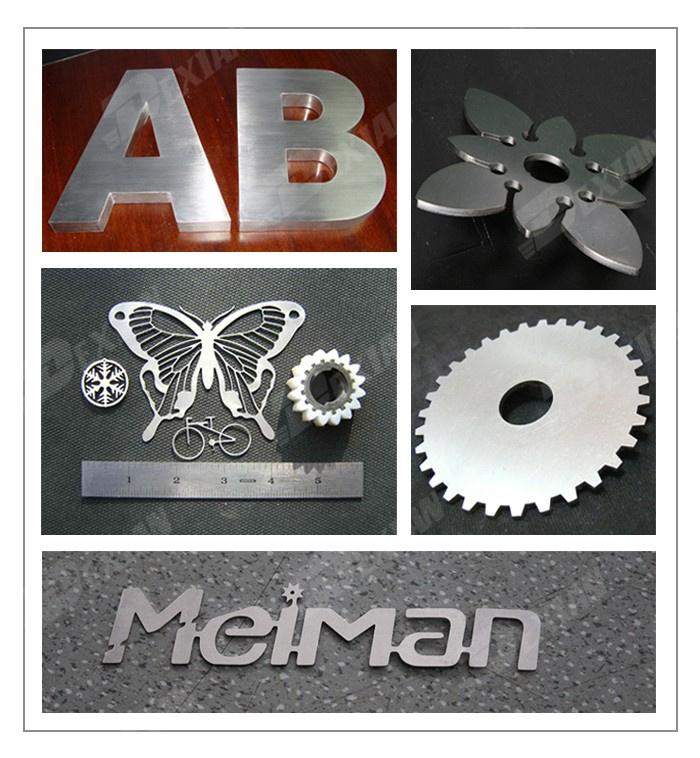

Products sample about cnc flame cutting machine:
- Application Materials: Stainless steel, mild steel, hard matel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc
- Application Industry:Sheet metal, kitchenware, components, decorations industry

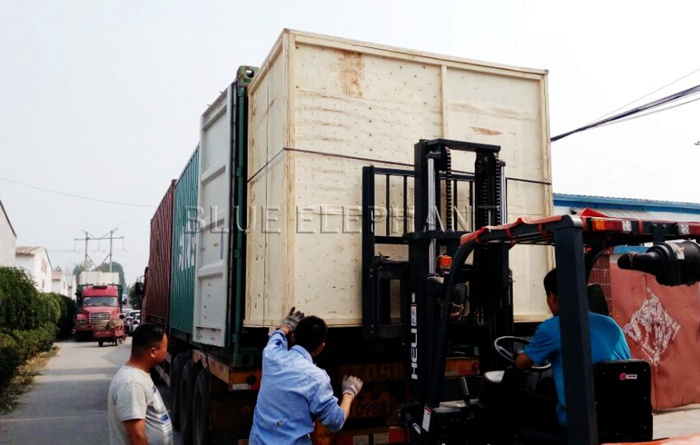

Packing & Shipping:
Packaging : 1.Outside package:Standard marine export plywood cases
2.Inner package:Stretch film and plastic film for humidity
Shipping: Maritime transport,air transport,land transport and the logistics transport
We can according to your request for the packing and shipping!
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.

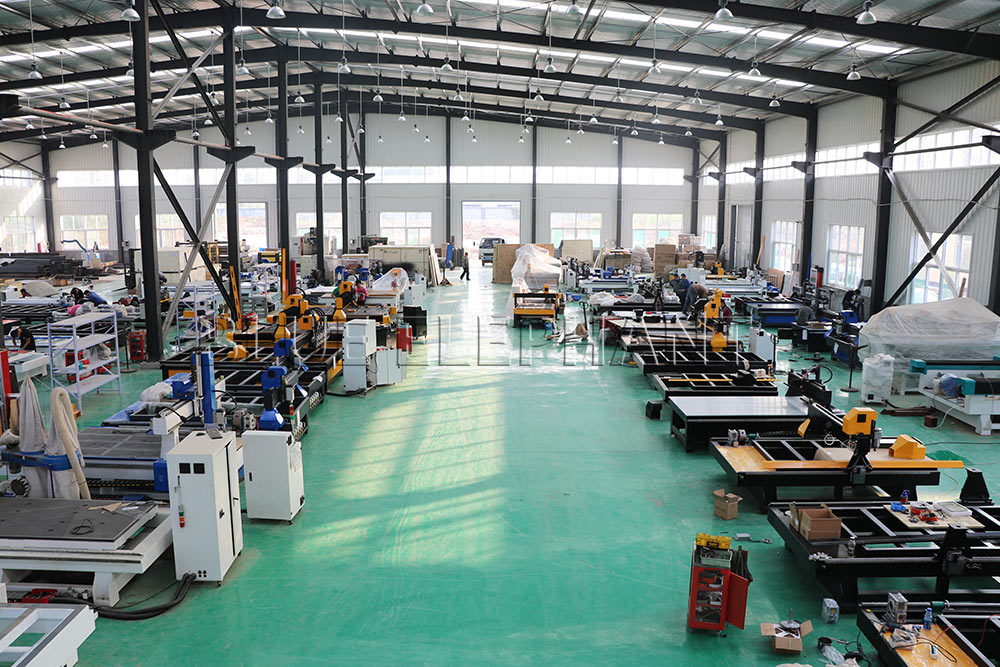

Welcome to our factory:
