| Prod Model: |
DXI20N-A |
| Model No.: |
Dxi20n-a |
| Diamater: |
20mm |
| Height: |
3.0mm |
| Rated Input Power: |
0.25W |
| Maxium Power: |
0.5W |
| Impendance: |
8ohm |
| S.P.L: |
87dB |
| Category: |
Speaker |
| Transmission Mode: |
Air-conduction |
| Transducer Principle: |
Permanent Magnetic Speaker |
| Style: |
Mini |
| Cone: |
Mylar |
Product Description

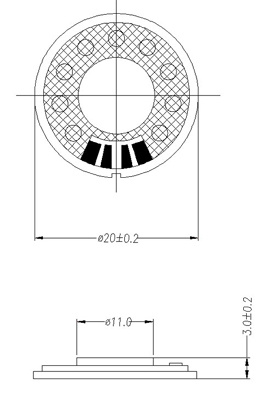

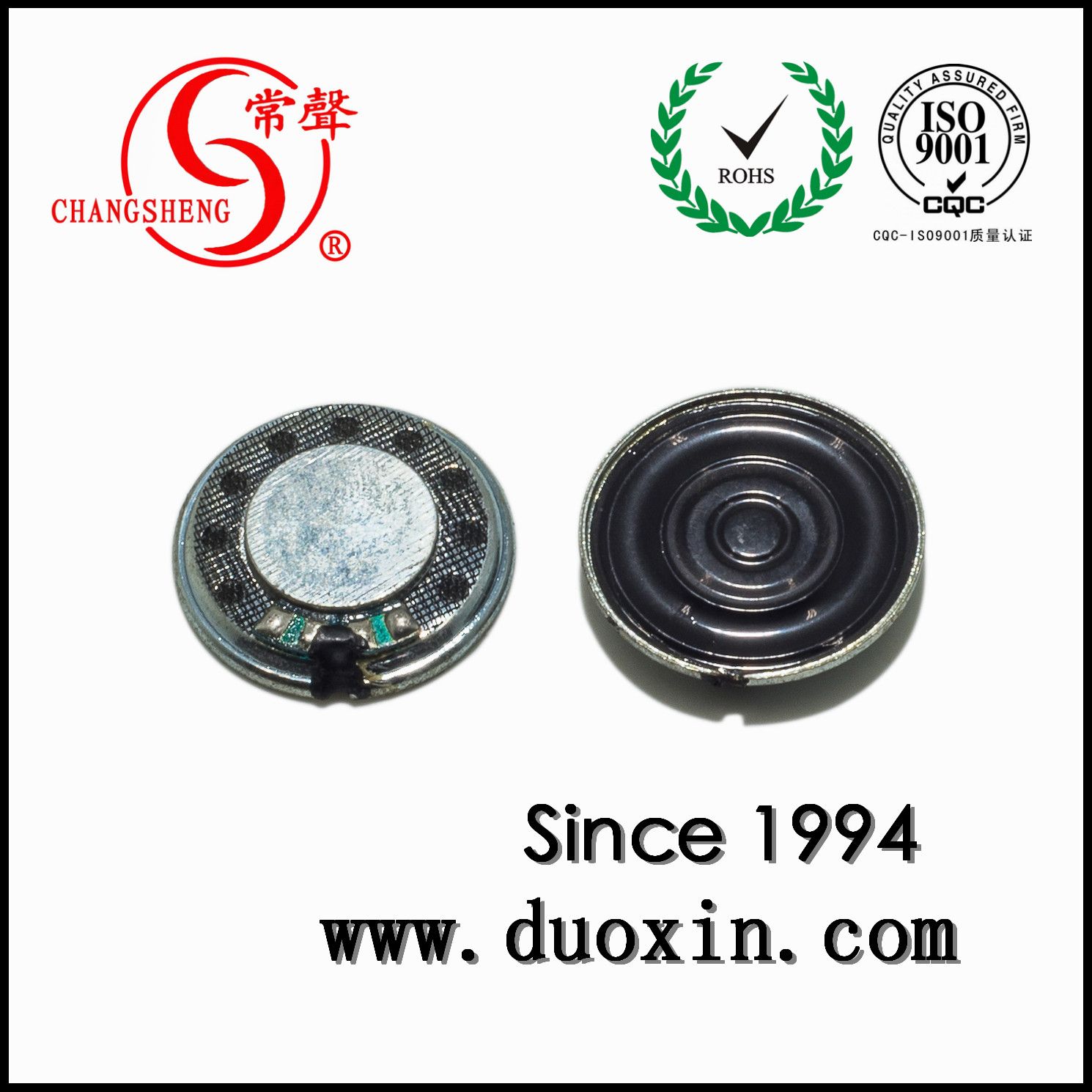

Diameter 20mm mylar speaker 20*3.0mm mobile phone speaker DXI20N-A
| Model | DXI20N-A |
| Impedance | 8, 16, 32 ohm |
| Nominal Power | 0.25 w |
| Maximum Power | 0.5 w |
| Resonance Frequency(Fo) | 600 Hz |

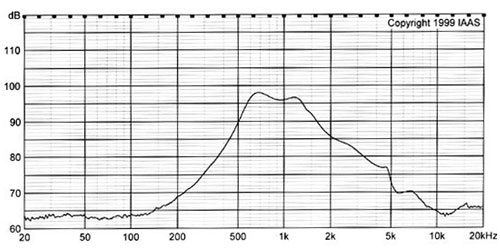

| Response: | 200~5KHz |
| S.P.L: | 87±2,84±2,82±2 dB |
| Height | 3.0 mm |
