| Prod Model: |
SCY-2350E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Controlling Mode: |
Artificial |
| Structure: |
Vertical Drilling Machine |
| Layout: |
Vertical |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| RoHS: |
Orange |
Product Description
Product Category: Diamond Drill Series>Velocity adjustable diamond drill series
Product Name: SCY-2350E
Drilling range: θ 15-235mm
Rated voltage: 110/220V
Rated frequency: 50-60Hz
Rated input power: 4180W
No-load speed: 0-600r/min

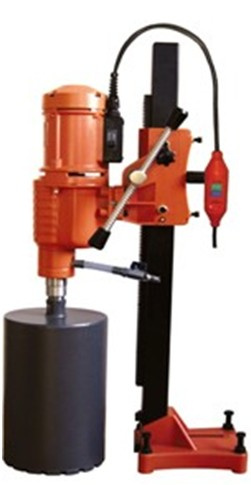

Diamond drill, also called concrete drill is a new type of tool which can drill on RC, brick and stone, rock, China and fireproof materials. It is hold such characteristics as working without dust, high efficiency, smooth wall of hole and accurate size. It is available in many fields of construction, quality-checking, airfield runway, tunnel of road, railroad and railroad bridge.
The velocity-adjustable diamond core drilling machine have function of soft-starting, constant power, overloading protection and steoless speed-regulating, etc.
|
Product Model |
SCY-1800E |
SCY-2050E |
SCY-2350E |
SCY-2550E |
|
Max Drill Range |
180MM |
205MM |
235MM |
255MM |
|
Rated Voltage |
110/220V |
110/220V |
110/220V |
110/220V |
|
Rated Frequency |
50-60HZ |
50-60HZ |
50-60HZ |
50-60HZ |
|
Rared Input Power |
3800W |
4000W |
4180W |
4350W |
|
No-Load Speed |
0-750RPM |
0-700RPM |
0-600RPM |
0-580RPM |
|
Spindle |
1 1/4''-7 UNC |
1 1/4''-7 UNC |
1 1/4''-7 UNC |
1 1/4''7UNC |
|
Max Stroke |
500mm |
500mm |
500mm |
500mm |
|
WEIGHT: |
22KGS |
22KGS |
23KGS |
25KGS |
