| Price: | US $ 17-20/Set |
|---|---|
| Min Order: | 1000/Set |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | 24040 |
|---|---|
| No. Of Rows: | Double Rows/ Two Rows |
| Precision Rating: | P0 P6 P5 P4 P2 |
| Certificate: | ISO9001-2008 |
| Applications: | Rolling Mill Gear Box, Rolling Mill Roller Bearing |
| Rollers: | Super Finishing Barrel Rollers |
| Inner Rings: | Cylindrical or Tapered Bores |
| Lubrication: | Oil Lubrication |
| Feature: | High Temperatuer Resistance |
| Capacity: | High Load Carrying Capacity |
| Internal Clearance: | C3 C2 |
| Rolling Body: | Roller Bearings |
| The Number Of Rows: | Double |
| Outer Dimension: | Extra Large (',440mm) |
| Material: | Bearing Steel |
| Separated: | Unseparated |
Spherical Roller Bearings design concept
Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. Therefore, the bearings are self-aligning and insensitive to misalignment of the shaft relative to the housing, which can be caused, for example, by shaft deflection. Self-aligning roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions.
Features:
Excellent alignment compensation
Suitable for large radial loads
axial forces in both directions and high radial forces.
very high load carrying capacity
cylindrical or tapered bores inner rings
Standards: DIN 616, DIN 635 (Part 2)
Series: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100
Mainly Application examples: heavy machinery (e.g. construction and mining machines), rolling mills, gear boxes, Vibrating screen,shaker screens, etc.
C: Stamped steel retainer and strengthened symmetric rollers for considerably higher load ratings;
CA: one piece brass retainer and strengthened symmetric rollers;
exchange with C design, especially for large size.
MB: Two-piece precision-machined brass retainer and strengthened symmetric rollers;
equivalent to C design in load capacity.
CC: steel cage, replace traditionalbrass cage.
E: Third generation design to improve stress distribution for much longer service life
| Products name | Spherical Roller Bearings |
| Bearing material | 100% Ccr15 Chrome Steel |
| Cage Material: | brass cage, steel cage |
| Model No.: | 24040 bearing |
| Size: | 200x310x109mm weight: 31.3kg |
| Brand: | SKF , , TIMKEN NTN CHIK |
| Seal type: | open |
| No. Of row | double row(two rows) |
| Type: | CC,CCK,CA,CAK,E,EK, K.MB, EAE4,E1.K |
| Precision | P0,P6,P5,P4,P2 |
| Clearance: | C0, C3, C4 ,C5 |
| Application: | Steel industry, oil industry, cement industry, mining & construction, papermaking machinery, rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery |

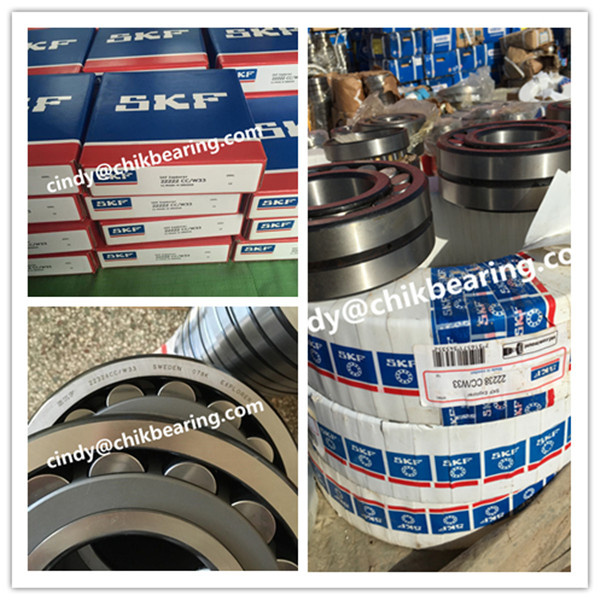

Product Show

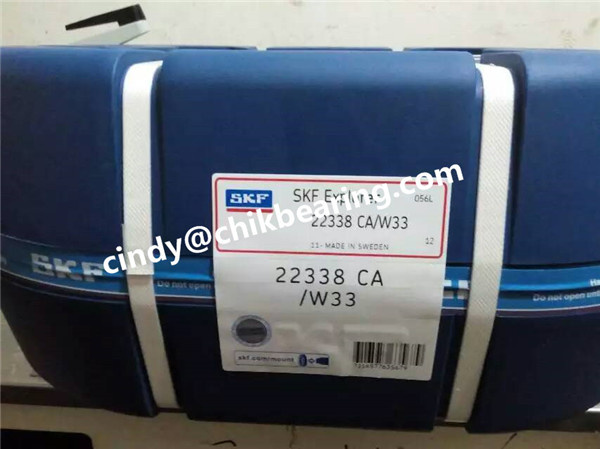

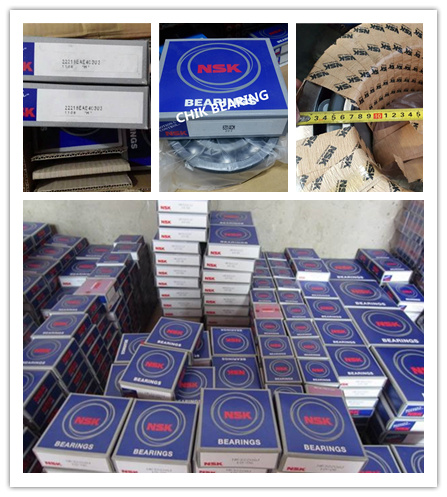

Packing of bearings :
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
