| Body Material: |
Steel |
| Structure: |
Piston Cylinder |
| Model Number: |
Yql |
| Brand Name: |
Louie |
| Gerenal Use: |
Industry |
| Specific Use: |
Car |
| Style: |
Cylinder |
| Inside: |
Nitrogen Gas and Oil |
| Sample: |
Free |
| Packing: |
Carton |
| Material: |
Steel |
| Usage: |
Furniture |
| Load Type: |
Compression |
| Shape: |
Cylinder |
Product Description

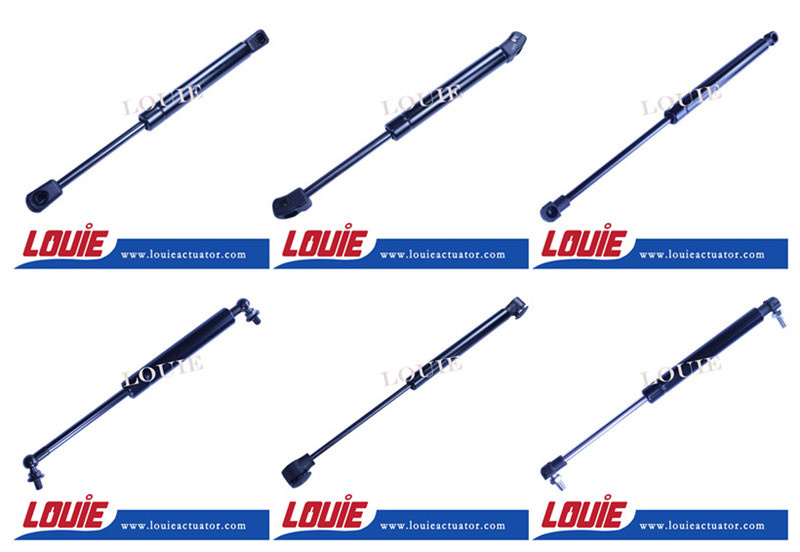

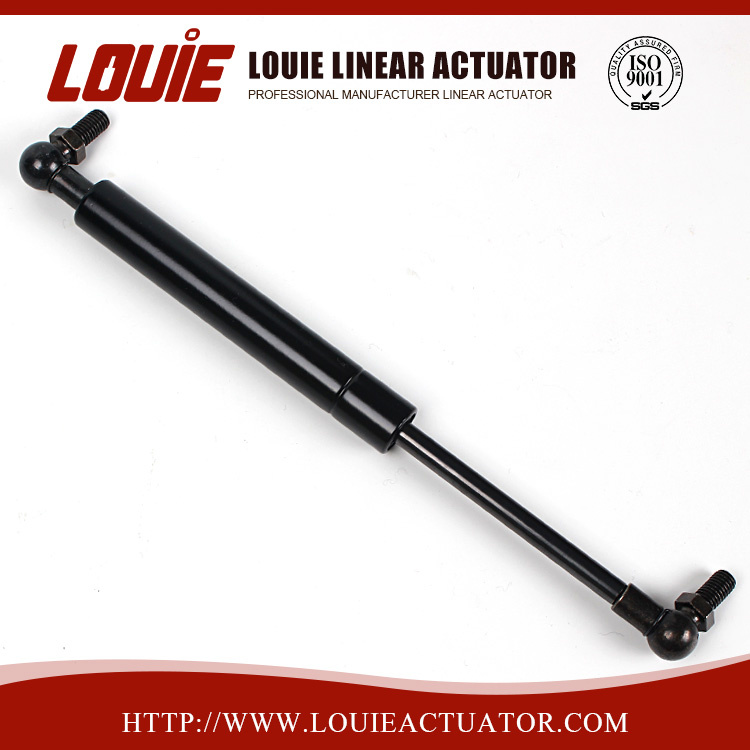

Gas spring/ gas strut/ gas lift/ gas stay / gas support
Product Description
1. ISO9001: 2000, SGS Approval
2. Samples will be freely sent to test first
3. Widely exported to US, Canada, Europe, Australia, more than 40 countries
4. Packaging Details: Poly bag or bubble bag, then carton, then pallet
5. Delivery Detail: Within 7 days for 10000pcs
16 years professional experience in producing high-qulaity gas springs in China.
Name | Gas spring/ gas strut/ gas lift/ gas stay / gas support |
| Quality | 1.180,000 times -passed TUV fatigue test |
| 2.ROHS certificated by SGS |
| 3.Passed ISO9001 and ISO/TS 16949 International Quality System Certification |
| Use | Automobile;Auto,car;Furniture;Machines,mechanical equipment; Boat,container,etc. |
| Material | steel/ss304/ss316 |
| Color | silver/black/others |
| Connector | ball connector/metal eye/clevis and so on |
| Advantage | 1.pass 180,000 times fatigue times |
| 2.we can supply samples for free |
| 3.Competivite price |
| 4.Fast delivery time:1000 pcs 3 days |
| The size can be made according the customer requirment. |
For you refer how to choose reasonable diameter as pressure
Product No. | Extended length | Stroke | DIA | Force |
| YQL | 100-300 | 30-100 | 12*4 | 5-100N |
| YQL | 300-600 | 100-200 | 15*6 | 10-300N |
| YQL | 600-900 | 200-300 | 18*8 | 50-600N |
| YQL | 900-1200 | 300-400 | 22*10 | 100-1200N |
| YQL | 1200-1600 | 400-500 | 25*12 | 100-1800N |
| YQL | 1600-2000 | 500-600 | 28*14 | 100-3000N |
| YQL | 2000-2500 | 600-700 | 28*16 | 100-3000N |
| YQL | 2500-3000 | 700-900 | 40*20 | 300-4000N |
| | The size can be made according the customer requirment. |
Specification:
1.All environmental friendly certification and approval
2.Color:Silver,black,others unlimited colors
3.Length can be cut upon your request
Competitive Advantage:
- Long life cycle rating
- Meet industry standard sizes and forces
- Extreme temperature ranges
- Economical
- Superior rod seal durability
- Robust side loading protection
- Reducible force valve option
- Specialty chrome plated
Applications:
Common applications include automobiles (where they are incorporated into the design of struts that support the weight of hatchback doors while they are open) and office chairs.They are also used in furniture, medical and aerospace applications.Much larger gas springs are found in machines that are used in industrial manufacturing (the press tooling industry).
Q&A:
Q: What is the lead time and shipping time?
A: goods usually takes about 7 days to finish. It will take about 15 to 35 days on the sea from shipping port to destination port. For South Asia and Oceania, it usually takes about 15days. For other regions, it usually takes about 25 to 35 days. The shipping time is changing with the distance and the shipping company we choose.
Q: Can the products be made with our logo or brand?
A: Yes of course we can make. We are OEM supplier for years and professional to make. But you need to give us the authorization if it is necessary..
Q: What can we do if we are interested in your products?
A: Please send us your precious inquiry on our website or talk directly with us by trade manager. Sometimes it will be more efficient for you to talk with us online. We can know each other and the products you want more clearly by talking.
Q: How do i know the products' quality and the packing ways are the ones we required?
A: Each product will be tested before sending out. We will send you photos for the goods to confirm again the packing ways.
Q: How do we make the payment?
A: we usually accept the payment by T/T, west union and other payment ways. We will confirm this when we conclude the order.
Q.Why choose changzhou LOUIE Gas spring ?
LOUIE manufacture high quality Linear Gas spring
we export more than 40 countries,got very good feedback from our cutsomers.
We have perfectly equipments and our team is very stronger,we have germany
engineers,and we also have deisgn,research and development group for meet
all your requirments.
Q:My order quantity is small,can you provide?
A:No matter how many you want,we will service you nice and quickly.
6.Loading port?
Shanghai,shenzhen,ningbo,guangzhou...no problems for us,as you need.
Any questions pls feel free to tell us. We will negotiate everything well for our mutual benefit.
CHANGZHOU LOUIE LINEAR ACTUATOR Co., Ltd. Supplies a full range of high quality Linear Actuators. Our factory is located in Wujin District, Changzhou City, Jiang Su Province, China, Nearby Shanghai.
Our factory adopt the full set of advanced production process, high levels technical management which coordinates with the advanced facilities.
The capacity of our production is 5 million with more than 1000 specifications. We had supplied to many research institute also. Our factory are specialized in production of high quality gas spring and linear Actuators, there 80% of sales is for exporting.
Our promise is for each piece of product must be with strictly testing, be sure of the quality and on time delivery. We are trying for customers with good quality and service. To make sure the customers will be satisfied and reassurance during using our product.
Our target is to make better quality product and grow company up as world class, of course with competitive price.
Our Linear Actuator are widely be used for medical bed, massage chair, robot, electrical sofa and so on. The quality and service will being assured at the same time for the customer. If you have any requests on our product, please contact with us, We also can design your request.
