| Prod Model: |
SYZH-Segment |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Diameter(mm): |
900 - 2000 |
| Structure: |
Sandwich or Layer |
| Application: |
for Marble & Soft Stone Cutting |
| Advantage: |
Price and Quanlity |
| Segment Length(mm): |
24 |
| Segment Height(mm): |
8 - 12 |
| Segment No.(PCS): |
64 - 128 |
| Grade: |
a-Grade |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Characteristic: |
Long Life |
| Shape: |
Conical |
Product Description
Specifications
1. Segment for 900-3500mm blade
2. Super quality/factory price
3. Optimum cutting segment
4. For cut marble
5. BV/SGS/ISO
Specification

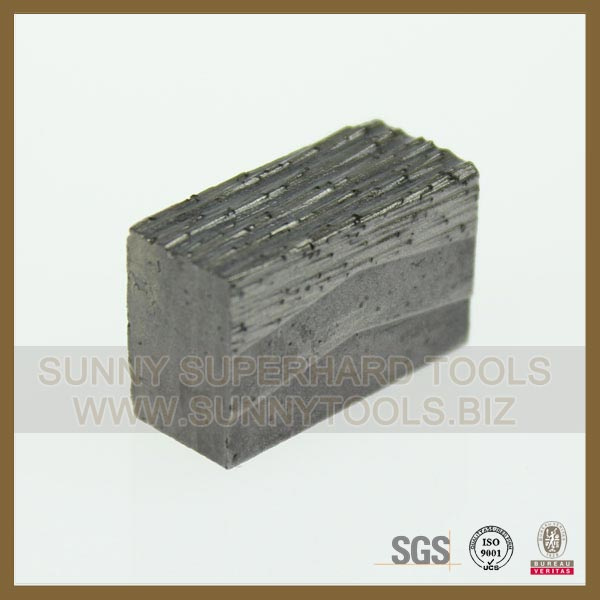

Diamond Segment of 900-2000mm circular saw blades for Block Cutting of Marble, Limestone, Slate, kinds of Soft Stone without quartz
1. Used for the saw blade from 900 to 2000mm.
2. We can design the diamond segment according to stone feature, such as hard, medium-hard or soft.
3. Our segment suit for single blade cutting, multi saw blade cutting or gang saw blade cutting. Etc
4. Market approved quality; All of our products have been strictly tested before access to market.
QUALITY CONTROL
(1). We test the hardness of the saw blade to check its quality
(2). We check the flatness degree to see if it if up to standard.
(3). We also does some cutting test to check the effect of using.
| Diameter | Segment Dimension (L × W × H) | Segment N o. | Structure |
| Length | Width (Box Type) | Height |
| mm | mm | mm | mm | pcs | Sandwich
(only)
|
| 900 | 24 | 6.5 | 8/10/12 | 64 |
| 1000 | 24 | 7.0 | 8/10/12 | 70 |
| 1200 | 24 | 7.5 | 8/10/12 | 80 |
| 1300 | 24 | 8.0 | 8/10/12 | 88 |
| 1350 | 24 | 8.0 | 8/10/12 | 88 |
| 1400 | 24 | 8.5 | 8/10/12 | 96 |
| 1600 | 24 | 9.0 | 8/10/12 | 104/108 |
| 1800 | 24 | 9.5 | 10/12 | 120 |
| 2000 | 24 | 10.5 | 10/12 | 128 |
QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
