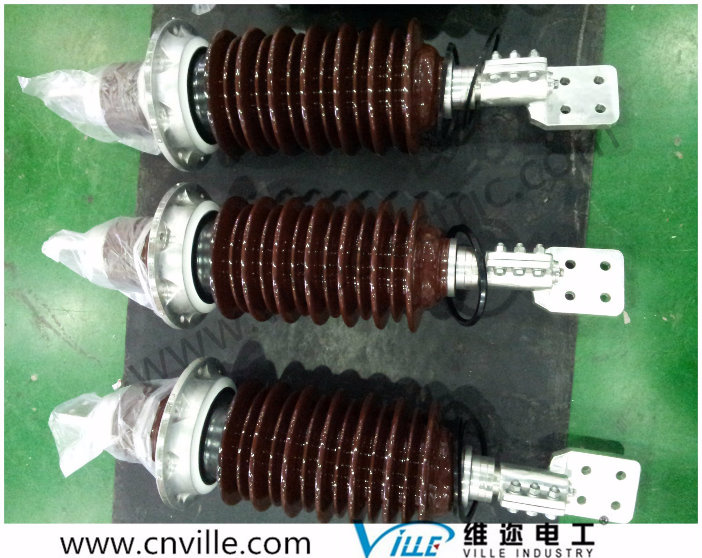

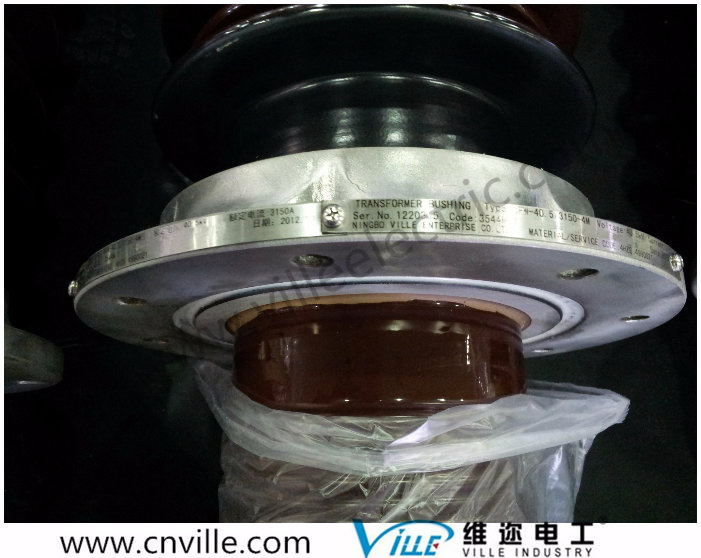

252kv Dry Type Bushing
| Price: |
US $ 500-80000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
VL |
| Enter Attribute Here (e.g.: Size): |
Enter Value Here (e.g.: 12 Inches) |
| Application: |
High-temperature |
| Material: |
Porcelain |
| Structure: |
Bushing Insulator |
| Type: |
B Type Insulator |
| Size Of Bearing Capacity: |
5000n |
| Color: |
Brown |
| Brand: |
Ville |
Product Description
Wall bushing is used for the power station and substation distribution equipment and high-voltage electrical appliances, for the wires through the ground partitions, walls, or electrical equipment enclosure to support the conductive part to make it right or housing insulation.
according to their use of the environment it can be divided into indoor and outdoor wall bushings. Through the center of the conductor can be divided into the bus ceramic wall bushings, copper conductor wall bushings and aluminum conductor wall bushings. When the copper conductor and the bus is directly connected, it's very easy to produce galvanic corrosion, the contact surface temperature is too high cause the joints to burn, affecting the life of the equipment, it should be using copper and aluminum transition joints, but to cause trouble for construction, the use of aluminum conductors porcelain The casing can solve these problems. Indoor and outdoor wall bushings are made by porcelain pieces, conductive rod, both ends of metal accessories and mounting flange assembled. Bus wall bushing is made by the porcelain pieces, both ends of the metal accessories, bus plywood and mounting flange assembly (bus plywood usually with bus size by the user). Technical parameters:
Rated voltage:72.5~252kV
Rated Current :630A~3150A

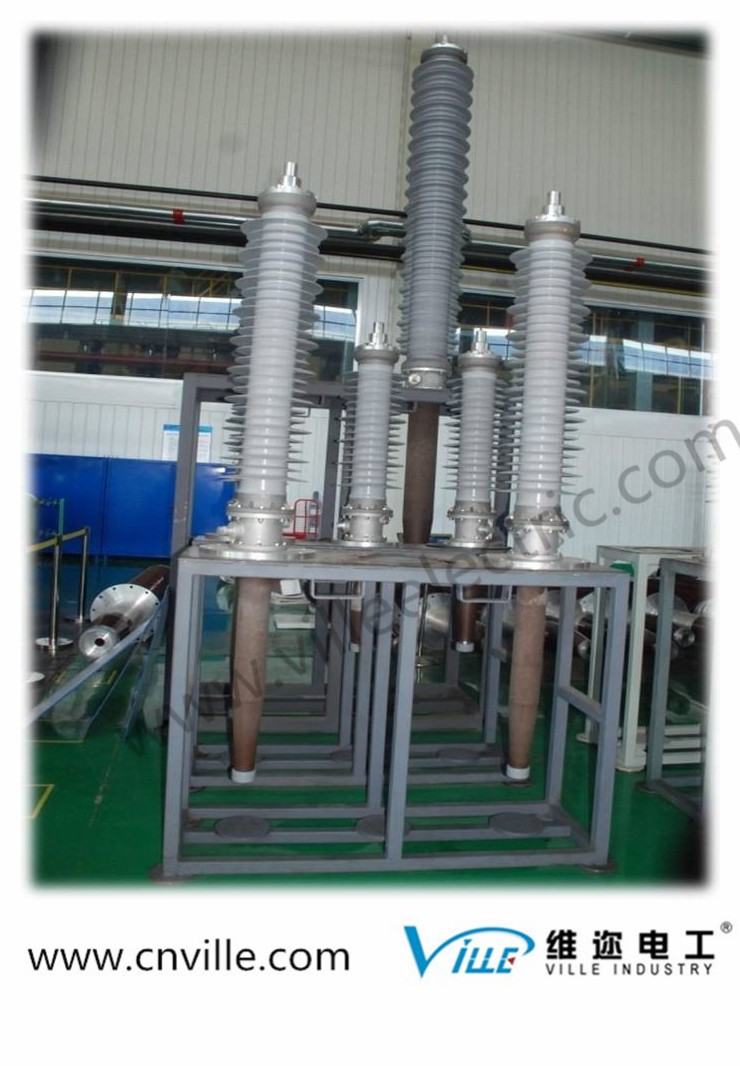

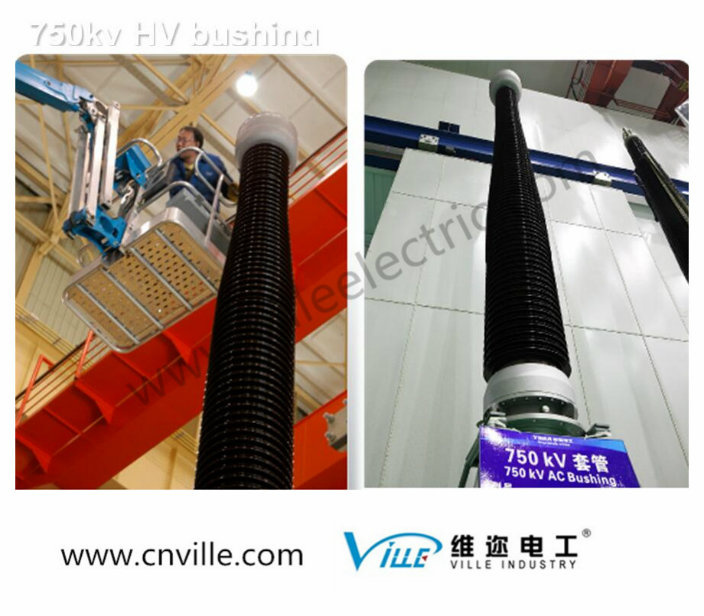

Other HV bushing reference:

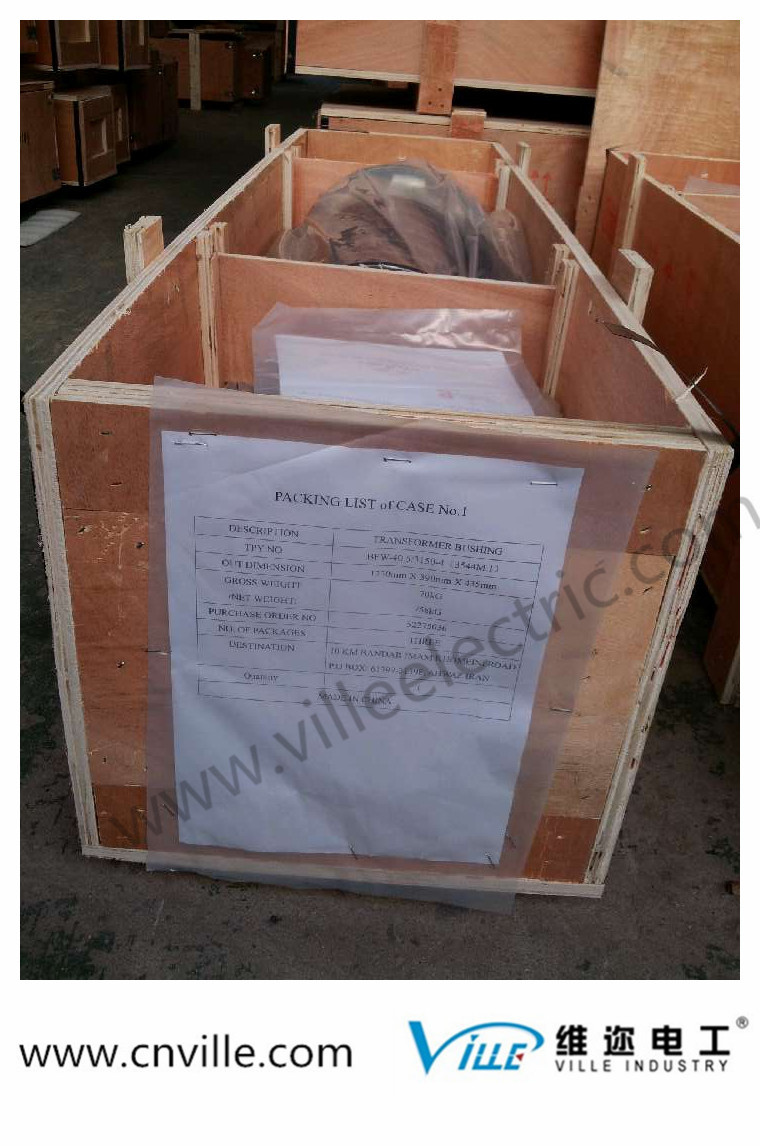

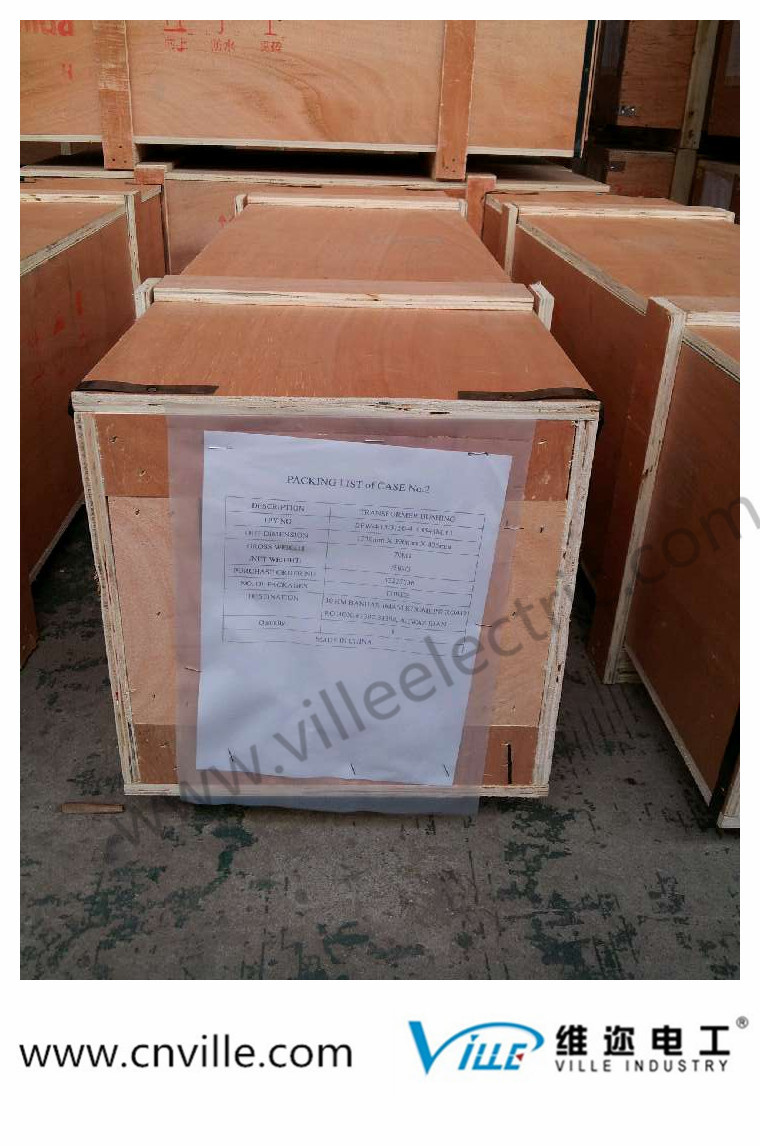

Package reference:
Ville Electric Company will keep up with the century, the epoch,
Sincerely look forward to your cooperation and win-wimn!
Create brilliant!
Ningbo Ville Electric Co., Ltd. One of wholly owned subsidiaries of VILLE INDUSTRY, It was invested by VILLE INDUSTRY, It is a well-know listed company in China specialized in R&D of electric power technology, equipment manufacturing and engineering services specialized in research, development, production of transformer and high voltage & low voltage electrical power equipment
Our Transmission and distribution companies can provide with whole solution for transformer substation and switch substation trunkey project!
The rated voltage from 11kV up to 132kV.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in power substation, power plant project and electrical power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products. Turnkey substation from 11KV to 132KV.
Our transformer factory main working is visiting end user's site do measure and reseach before designe, and providing economic transformer solution for customer. Engineering, manufacturing, executing, commissioning and repairing for different kind of transformer (04kv -500kv ).
The products are mainly used in Steel plant; Power - Fossil fuel plant, Nuclear power plant, Railway, Subway and Airport. Wind power generation; Hydroelectric plant engineering; International power generation plant; Power substation transmission and distribution; Residential housing estate power distribution system and so on.
Transformer factory Product includes:
Three phase double (three)- winding power transformer, generator power transformer, auto power transformer, rectifier transformer for each industry, furnace transformer, movable transformer, traction transformer and reactor, power plant auxiliary and standby transformers, transformers for substations of backbone and distribution networks. Transformer for metallurgical companies etc.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide transformer supplier"
Supply the guide drawings and installation manuals information directions on the method of handling, storage, mounting and erection of transformers.
Power equipment application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier
