| Prod Model: |
SY-ZH-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Painting Color: |
as Customer's Request |
| Support: |
OEM & ODM |
| Logo Carving: |
Laser Printing |
| Grade: |
a-Grade |
| Formula: |
Special Formula for Your Stone's Properties |
| Characteristic: |
Long Life |
| Certification: |
BV/SGS/ISO |
| Advantage: |
Quality and Price |
| Diamond Quality: |
Premium Diamond |
| Supplier: |
Quanzhou Sunny Superhard Tools Co., Ltd. |
| Type: |

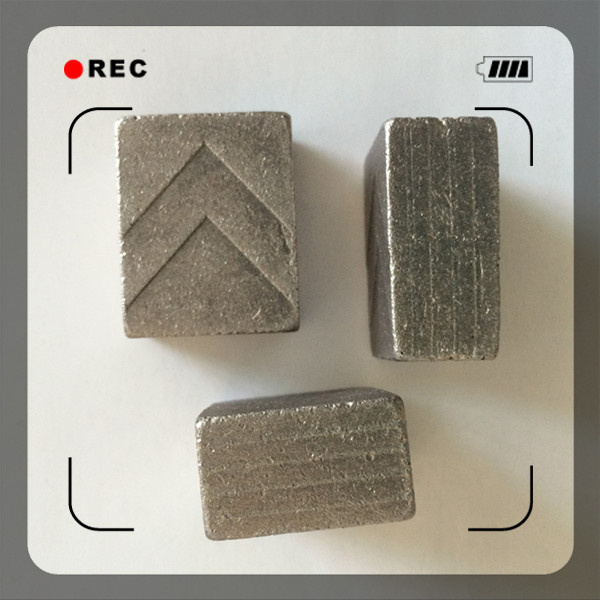

Cutting Segment |
Product Description
DESCRIPTION

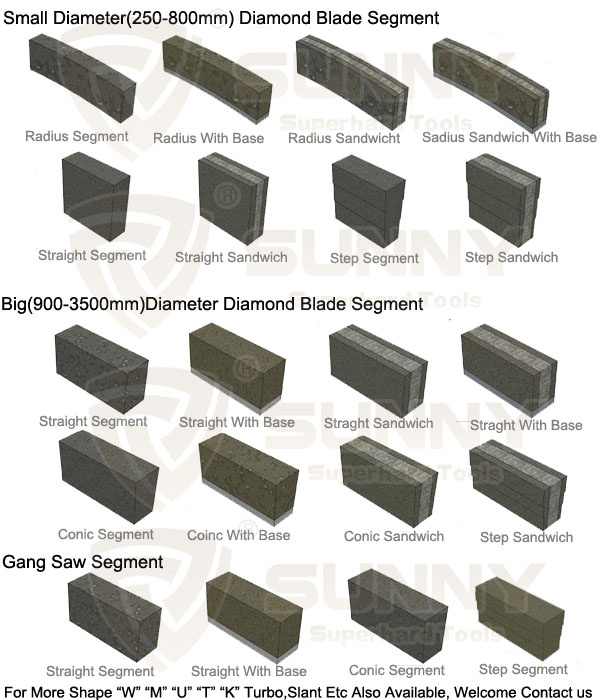

Diamond segment is widely used:
1. For different size blade: 350mm-3500mm with different shape and structure.
2. For various hardness stone cutting: Basalt, granite, marble, sandstone, limestone, andesite quartz, construction material etc
3. For different machine: Multi blade cutter, gang saw blade, bridge cutting machine, single arm cutting machine, manual handing machine, able cutting machine etc.
FEATURE
1. Long life & smooth surface.
2. Fast & stable cutting.
3. Smooth cutting.
4. High cutting efficiency to save energy consumption.
We will do our best to help you, if you have any question, call me please.
Welcome to add me.
| Diameter mm | Inch | Core Thickness | Segment Size | Segment Number |
| φ300 | 12" | 2.2/2.0 | 40x3.0/2.8x8(10)(12)(15) | 21 |
| φ350 | 14" | 2.2/2.4 | 40x3.0/3.2x8(10)(12)(15)(20) | 24 |
| φ400 | 16" | 2.6/2.8 | 40x3.4/3.6/3.8x8(10)(12)(15)(20) | 28 |
| φ450 | 18" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 32 |
| φ500 | 20" | 2.8/3.0 | 40x4.0/4.2x8(10)(12)(15)(20) | 36 |
| φ600 | 24" | 3.6 | 40x4.6x8(10)(12)(15)(20) | 42 |
| φ700 | 28" | 4.0 | 40x5.2x8(10)(12)(15)(20) | 42 |
| φ800 | 32" | 4.5 | 40x6.0x8(10)(12)(15)(20) | 46/57 |
| φ900 | 36" | 5.0 | 24x6.6/6.0x10(12) (15)(20) | 64 |
| φ1000 | 40" | 5.5 | 24x7.0/6.4x10(12) (15)(20) | 70 |
| φ1200 | 48" | 6.0 | 24x8.0/7.4x10(12) (15)(20) | 80 |
| φ1300 | 50" | 6.5 | 24x8.4/7.8x10(12) (15)(20) | 88 |
| φ1600 | 64" | 7.2 | 24x9.0/8.4x10(12) (15)(20) | 108 |
| φ1800 | 72" | 8.0 | 24x9.8/9.2x10(12) (15)(20) | 120 |
| φ2000 | 80" | 8.0 | 24x10.5/9.5x10(12)(15)(20) | 128 |
| φ2200 | 88" | 9.0 | 24x11.5/10.5x(15)(20) | 132 |
| φ2500 | 110" | 9.0 | 24x12.5/11.5x(15)(20) | 140 |
| φ3000 | 120" | 10.0 | 24x13.5/12.5x(15)(20) | 160 |
| φ3500 | 140" | 10.0 | 24x14.5/13.5x15 (20) | 180 |
2016-Italy

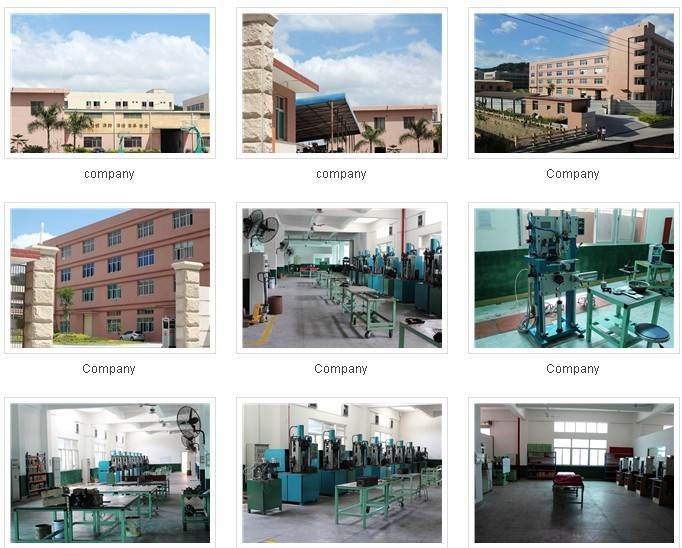

QUANZHOU SUNNY SUPERHARD TOOLS Co., Ltd is a professional and Dynamic Diamond Tools manufacturer, established in 1993, Located in Quanzhou, Fujian province, China, factory covering 15000 square meters. Our technical department is composed of experienced professors and engineers. We devote ourselves to researching and manufacturing cutting and processing Diamond tools for nature stone and building materials. Our tools are exported to more than 60 countries, including America, Brazil, Italy, Russia, Ukraine, India, Egypt, South Africa etc.
Main Products:
Cutting Tools (Saw blade, Segment, Wire saw etc)
Grinding&Polishing Tools (Calibration Rollers, Fickerts, Frankfurt, Cup wheel, Profilling wheel, Polishing pad, brush etc)
Drilling Tools (Finger Bit, Core drill etc)
The Philosophy of Sunny is "Superior product and service derived from standard and efficWe have a high efficiency team, each department strictly comply with company regulations.
From receiving your enquiry, put order in production and Dispatch to after-sales service, Ient management. "
In order to provide customer most suitable tools, we keep researching and analysing nature stone and engineering material. We cooperate with stone factory to test tools, and keep close contact with our customers by visit or communication to get knowledge of market demand.
We Response All Your Request efficiently To Save Your Time And Provide Your Utmost Convenience.
The deep understanding for customer's demand and strict quality control help us developing quickly, we wish to get your collaboration to achieve our objectives together!
Our aim is to provide our clients stable and consistant quality with competitive price.
Advantages enable clients benefits from our tools.
1. Experienced bond system
2. Advanced equipment and high grade raw material
3. Strictly production procedures control and quality inspection.
4. Customer's active feedback and support help us developing fast.
