| Prod Model: |
RSC-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Round Star |
| Function: |
an Electromechanical Valve for Water Liquid |
| Why Us?: |
We Have More Than 40 Years Experience Since 1965 |
| Certificate: |
CE, ISO, RoHS |
| Company Spirit: |
to Challenge Our Future and Pursue and Surpass Our |
| Company Value: |
to Make Wealth for Society and The Values of Emplo |
| Market Conception: |
What We Do Will Be Based on The Market and Custome |
| Company Style: |
Be Faithful, Practical, Coorperative and Efficie |
| Connection Form: |
Thread |
| Type: |
Direct Acting |
| Valve Structure: |
Direct Action Diaphragm Structure |
| Application: |
Household Usage |
| Power Supply: |
AC and DC |
Product Description

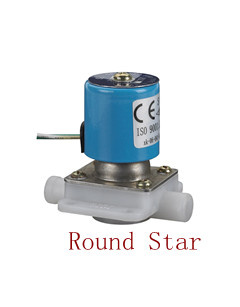

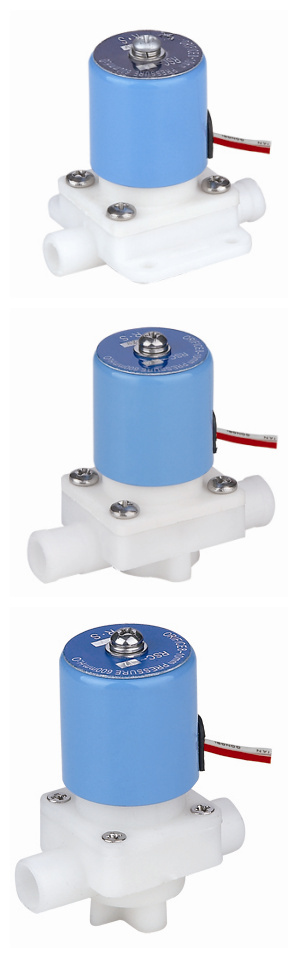

Direct Acting Poppet, Normally Closed DN8mm, 10mm, 12mm.
Direct acting normally closed solenoid poppet valves available either AC or DC operated in plastic body. High flow with stainless steel seat and soft magnetic alloy and EPDM disc for hot water applications. Field replaceable seat/orifice design for flexibility.
2-Way One inlet and one outlet, and are used to permit and shut off fluid flow.
2way PP Normally closed DC12V Water Dispenser plastic solenoid valveDirect acting valve available in a normally closed construction. Available AC or DC operated with plastic bodies designed to handle the challenges of harsh media.
Direct acting valve available in a normally closed construction. Available AC operated with plastic bodies designed to handle the challenges of harsh media
-- Media: Water, Air, Vacuum
--Temperature: 0 ~ 100º C
--Function type: Normally Closed (N/C)
--Mode of action: Direct acting type
--Body material: PP + Fiber glass
-- Sealing material: EPDM
--Protection class: IP54
--pressure: 0~8bar
| Model | Adapter tube size mm | orifice size mm | Cv value | L mm | H mm | W mm | pressyre(bar) | voltage | reaction time |
| RSC-8 | 12 | 8 | 1.3 | 65 | 61 | 25 | 600mm water pressure | 110V~240V AC DC24V ~12V | 6~20 millisecond |
| RSC-10 | 14 | 10 | 2.3 | 69 | 61 | 27 | 600mm water pressyre |
| 6~20 millisecond |
| RSC-12 | 13 | 12 | 3.0 | 59 | 70 | 17 | 600mm water pressur |
| 6~20 millisecond |
Our factory was founded in 1965. Through 50 years of development, we have become one of the most professional manufacturers of solenoid valves.
With great confidence in our products and services, our factory has obtained orders from all over the world. Our customers are from Australia, USA, Spain, Mexico, Saudi Arabia, Ireland, German, France and Canada.

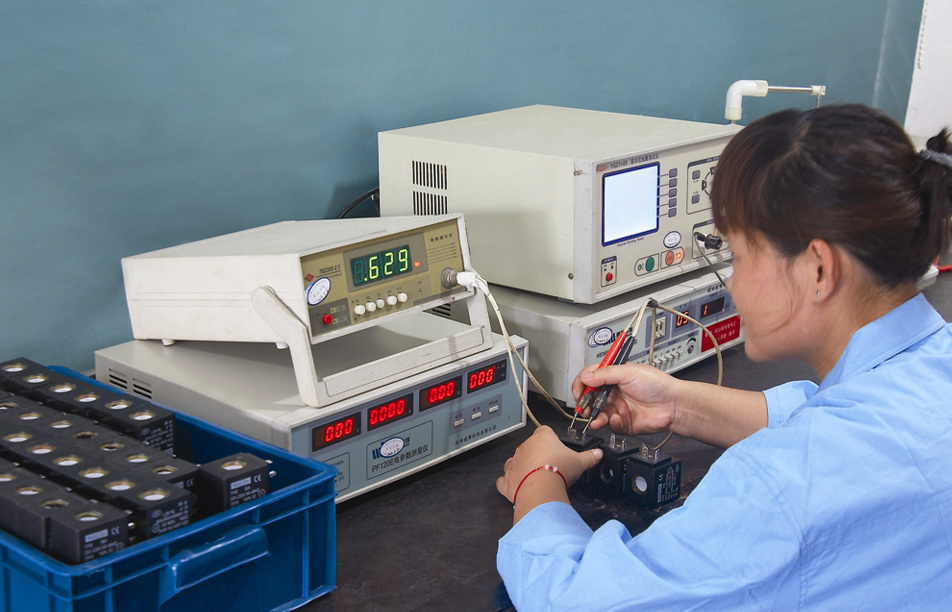

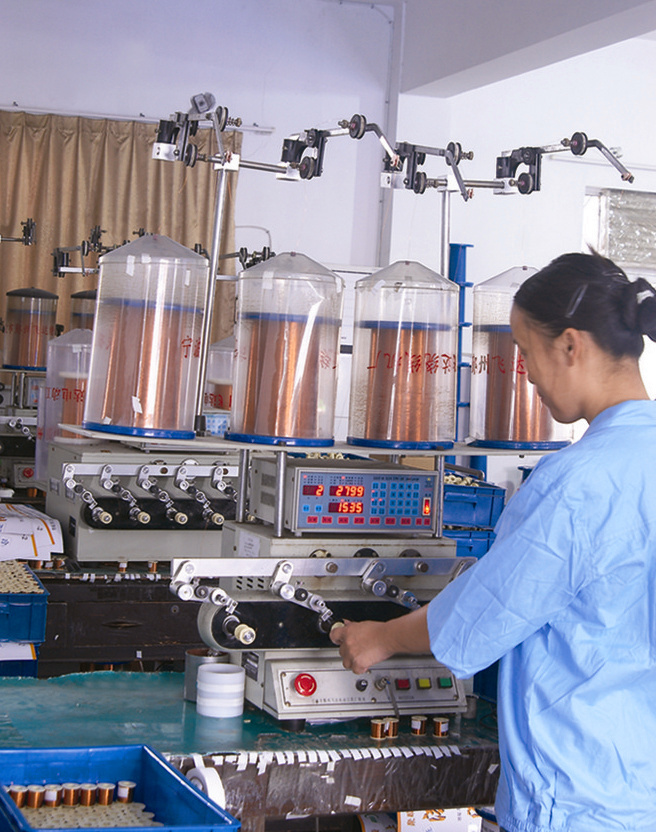

Our factory manufactures the products as per the ISO9001 quality management system and CE, RoHS, TUV, FDA standards. Our factory has been equipped with advanced processing machines, including CNC digital controlled apparatus. We have a strong R&D team to research and customize products to cater various requirements of customers.
We have been persisting in providing our customers with superior quality products and perfect services by constantly innovating and self-improvement. Customer satisfaction is our unswerving pursuit.
