| Price: | US $ 20-30/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 5/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: | HZ-MB300 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Welding: | High Frequency Welding |
| Slot Type: | U Slot |
| Saw Blank Material: | Manganese Steel |
| Apply For: | for Marble Cutting |
| Core Type: | Normal Core,Silent Core Is Available |
| Business Type: | Manufacturer |
| Service: | OEM & ODM |
300-600mm Stone Cutting Tool Diamond disc for Marble
Specification detail:
1.Inner core:50mm or can be design according to your requirement.
2.Usage:for marble cutting.Please tell us the rigidity of the marble you want to cut(or send us the image of stone is ok) and other requirements,our engineer will design the right products for you.Thanks.
Marble Diamond Disc Diamond saw blade parameters:
Diameter (mm) | Segment dimension L*W*H | Core thickness (mm) | Segment number (pcs) |
300 | 40*3.2*8(10)&40/42*3.2*8(10) | 1.8/2.2/2.4 | 22 |
350 | 40*3.4*8(10)&40/42*3.4*8(10) | 1.8/2.2/2.4 | 25 |
400 | 40*3.6*8(10)&40/42*3.6*8(10) | 1.8/2.6/2.8 | 29 |
450 | 40*4.4*8(10) | 2.2/2.8/3.3 | 33 |
500 | 40*5.5*8(10) | 3.0/3.3 | 36 |
550 | 40*5.0*8(10) | 3.0/3.5 | 40 |
600/625 | 40*6.0*8(10) | 3.0/3.6 | 42 |
700/725 | 40*6.5*8(10) | 3.6/4.0 | 46 |
800/825 | 40*6.5*8(10) | 4.5/5.0 | 46 |
900 | 30*8*10 | 5.0 | 64 |
Other specifications are available upon request.

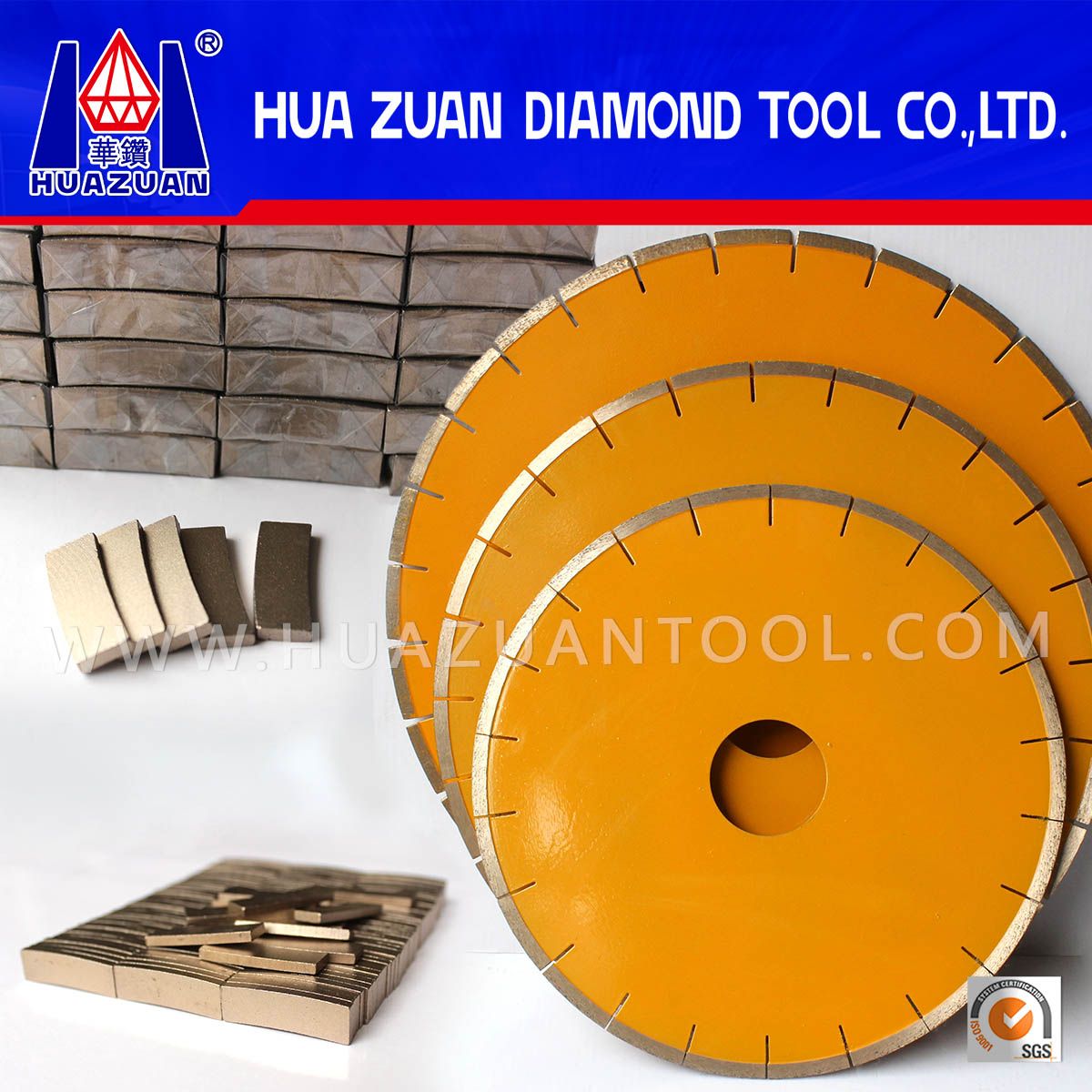

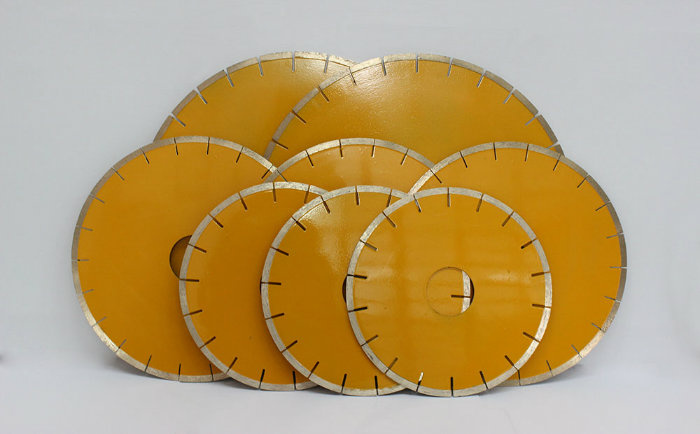

Product images of marble diamond disc:
Our advantages:
1.Enough sharpness and good cutting result.
2.Affordable,sharp and wear resisting.
3.Rich experience:more than 20 years' experience in research,development and stone cutting.
4.High sharpness:Our marble diamond segment is positioning in higher cutting efficiency.adjust lifespan according to their needs on the basis of enough sharpness.
5.Stable quality:spirit of striving for perfection,precisive fine training management,as well as stable and high professional produce team can make sure our products keep better quality stability.

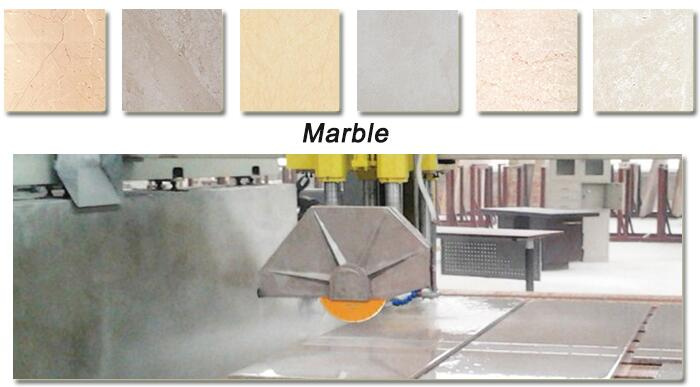

Application of marble blade:

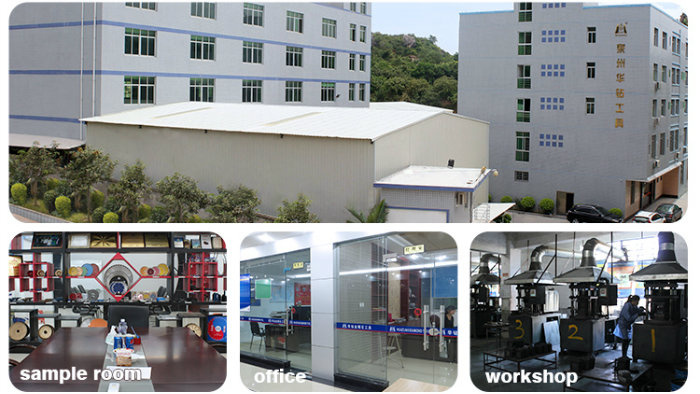

Company Introduction:
Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
FAQ
Q:Which design is best for you?
A:Considering to cut different objects,there are a lot of diamond blades with different thickness,size,materialproportion,design and technology.You need to teel us what you will cut,its hardness,thickness,sharp,the speed you need.Then our engineer will design the right blade for you.
Q: Which grade is suitable for you?
A: We have economical ones and pro ones,please tell us your target price and the market you will sell.Then we will analyze and provide you the best price for you.
Q: Blade with or without sound attenuation?
Tell us if your country has the laws that don't allow so much noise or not,then we will arrange well for you.
