| Prod Model: |
XGQT21S |
| Markets: |
North America,South America,Southeast Asia,Africa,Mid East |
| Lateral: |
90° |
| Head Code: |
Round |
| Finish: |
Painted/ Epoxy/ Galvanized |
| Pressure Rating: |
300psi |
| Raw Material: |
Ductile Iron/ Cast Iron ASTM A536 |
| Gasket: |
EPDM |
| Bolts And Nuts: |
Cold Heading Steel- Gold / Silver |
| Thread Standard: |
BSPT/BSPP/NPT |
| OEM/ODM: |
Yes |
| Type: |
Equal |
| Technics: |
Casting |
| Material: |
Iron |
| Certification: |
FM & UL |
| Connection: |
Threaded |
| Color: |
Red / Orange/ Blue/ White |
Product Description

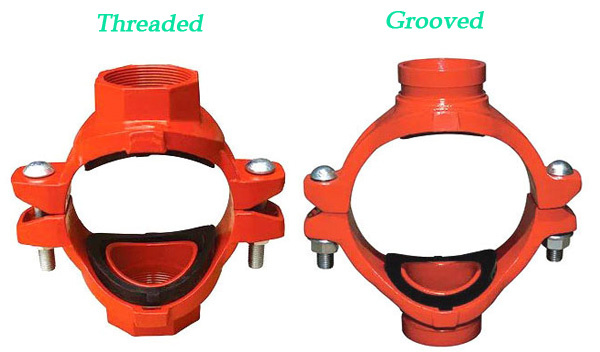

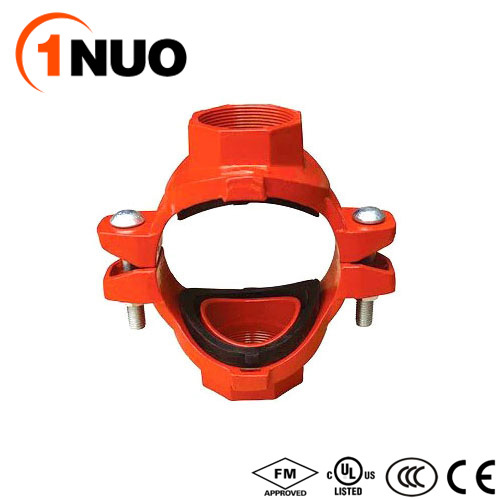

300 Psi Ductile Iron Threaded Mechanical Cross with FM/UL ApprovalPicture of Mechanical Cross
Range of productsRigid coupling, Flexible coupling, 90° Elbow, 45° Elbow, 22.5° Elbow, 11.25° Elbow, Tee, Reducing Tee(Grooved/Threaded), Cross, Reducing Cross(Grooved/Threaded), Mechnical Tee(Grooved/Threaded), Mechnical Cross(Grooved/Threaded), U-bolted Mechnical Tee, Reducer(Grooved/Threaded), Grooved Eccentric Reducer, Grooved Split Flange, Grooved Adaptor Flange, Cap.Detailed informationCertificate : UL listed & FM approved
Material : Ductile Iron conforming to ASTM A536, Grade 65--45--12
Thread : BSPT & BSP & NPT
Standard Coat : Epoxy-RAL3000
Optional : 1. painted 2.dacromat 3.galvanized
Color : Red, Blue, Orange, White
Gasket : EPDM / NBR / Silicon Rubber
Bolts and Nuts : ISO 898-1class 8.8
Payment term : T/T, LC at sight
Package : Cartons with pallet/ Wooden case
Delivery time : 25-40 DaysGasket | Gasket | Material | Temperature Range | Recommendations | Color |
| E | EPDM | -34ºC~+110ºC
(-30~+230ºC) | Recommend for hot water, dilute acid, oil-free gas and other mecmicals(except for hybrocarbon) within the specified temperature range. Not recommend for petroleum and hydrocarbon. | Green Strip |
| D | NBR | -29ºC~+82ºC
(-20~+180ºC) | Recommended for petroleum products, gas with oil vapors, mineral oil and vegetable oil. Not recommended for high temperature materials. | Orange Strip |
| S | Silicon Rubber | -40ºC~+177ºC
(-40~+350ºC) | Recommended for high temperature and dry air, and some high temperature chemicals. | White |
Why choose 1nuo?

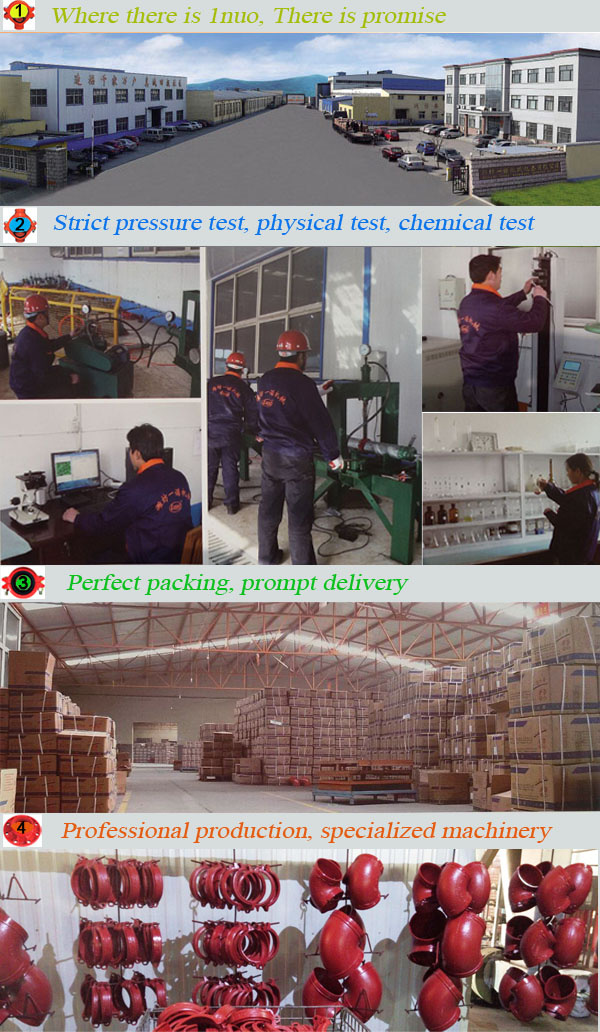

Weifang Yinuo has strong technical strength and possesses the world's first-class equipment and technology, as well as perfect testing methods. All rough castings of grooved fittings will be processed and produced by electric-furnace smelting, on-line monitoring and control and automatic molding methods. Now our facilities include eleven medium frequency furnace, four advanced vertical parting molding lines and three painting lines. Every customer's requirements can be satisfied by customized services.
Yinuo's ductile iron grooved fittings have successively passed the China national type test, ISO 9001 and FM&UL approvals etc. Our products are underwritten by China Ping An Insurance(Group) Co.,Ltd. The grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, low-pressure steaming, mine piping and ordinary piping delivery. FM Approved&UL Listed&CE Certificate
ø Corporate Vision: Where there is pipes, there is YINUO.
ø Corporate Mission: Connecting pipeline around the world, benefiting homes in every building.
ø Competitive Strategy: To supply market with perfect products, to win customers with excellent service.
ø Core Value: Pragmatic honesty, quality first, continuous innovation and win-win cooperation.
ø Quality Value: We survive with quality and develop by technology.
Weifang Yinuo Casting Co., Ltd is a large high -tech enterprise specialized in development, creation, casting, production and painting of ductile iron grooved fittings since 2001. The company locates in Weifang of Shandong Province, China. With convenient transportation closed to Jinan-Qingdao and Weifang- Laiyang motorway.
With the fast development, the factory and supporting facilities now covers more than 3000, the annual production capacity is well above 30.000tons, and there are more than 200 employees, among which there are 10 engineering technicians and 5 senior engineers.
The company has strong technical strength, and possesses the world's first-class equipment and technology, as well as perfect testing methods. All rough castings of grooved fittings will be processed and produced by electric-furnace smelting, on-line monitoring and control and automatic molding methods. Now our facilities include eleven medium frequency furnace, four advanced Vertical parting molding lines and three painting lines. Every customer's requirements can be satisfied by customized services.
Yinuo's ductile iron grooved fittings have successively passed the China national type test, ISO9001 and FM&UL approvals etc. Our products are underwritten by China Ping An Insurance(Group) Co., Ltd...The grooved pipe fittings are widely used in fire fighting, air-conditioning, water supply, sewage, cement, low-pressure steaming, , mine piping and ordinary piping delivery. Yinuo is spreading all over the world and winning the appreciations from users at home and abroad.
Weifang Yinuo pursues the core value as "Pragmatic honesty, quality first, continuous innovation and win-win cooperation" and insists on high quality products and competent service to win customers. We believe we would continuously develop new markets with YINUO brand and create a bright future together with our business friends.
