300 Rpm Electric Chainsaw Sharpener Saw Chain Grinder
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
chainsaw sharpener |
| Name: |
Electric Chainsaw Sharpener |
| Power Source: |
Electricity |
| Material: |
Aluminum Alloy |
| Type: |
Chainsaw Grinder |
| Object: |
Chainsaw |
Product Description

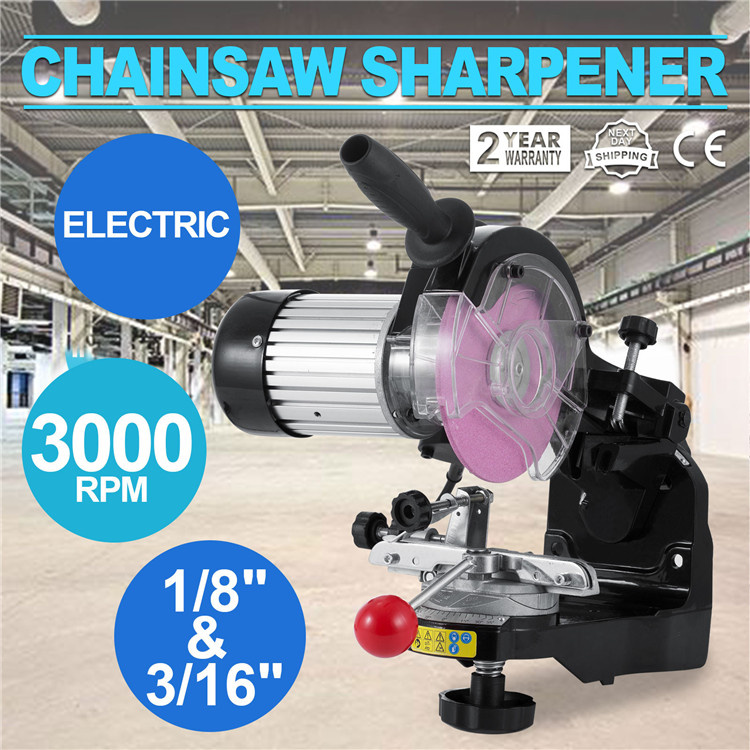

Saw Chain Grinder with Grinding Wheels Chain Grinder 1/8 and 3/16 Inch Electric Chainsaw Sharpener Bench or Wall Mounted
This versatile unit can be mounted on your workbench or wall for best results when sharpening your saw chain. The adjustable angle and large handle allow easy operation. Sharpens chains from 1/4in. to 3/8in. pitch. 110V, 60 Hz motor operates at 3000 RPM. 230 Watt motor input power. It includes lamp and disc guards and two grinding discs at 1/8in., 3/16in.
Grinding for Bench Mounted Workstation: All adjustables must be made prior to applying power to the unit.1. Position the saw chain to eb ground onto the vise.2. Setting top-plate cutting angle.a. Set grinder head angle to correct degree.b. Adjustment is made by loosening adjustment knob.c. At the back end of the grinder and rotating the grinder head to the desired angle.3. Cutter top-plate grind angle, rotate visa assembly to right of center(0°).4. Rotate vise assembly to left of center(0°).5. Setting vise-tilt angle. The cutting chain visa assembly has a tilting fearure, that is used to control the side plate hook angle on some chains. Use center mark for chains requiring 90°.6. Tilt visa to inward position for lefthand cutters.7. Tilt vise to outward position for righthand cytters.8. Ser the chain stop. Using the cutting chain stop centering knob. Center the chain stop behind the cutter. Make final adjustment to the chain stop by adjusting the knob at the bavk of the chain stop support.9. Center the cutting chain in the vise.Loose lock nut with 10mm wrench;Center chain by using 5.5mm Allen wrench;Once centered, retighted nut.Note: This setting will keep the left and righthand cutters equal when grinding top-plates.10. See grind depth. Locate the chain cutter for grinding. Lower the grinding wheel( with motor off). Set depth of grind by using the depth adjustment knob.11. Grind the cutters. Grind all right-hand cutters, rotate vise and grind all left-hand cutters.Application:It is powered by a 230W, 60Hz motor which peaks at 350W, grinds almost any chain type and size. - Made of sturdycast aluminum with reinforced hinges that improve strength and performance
- Work light and safety guards improve accuracy and provide superior protection
- Tilting vise accommodates semi-chisel & chisel style cutters

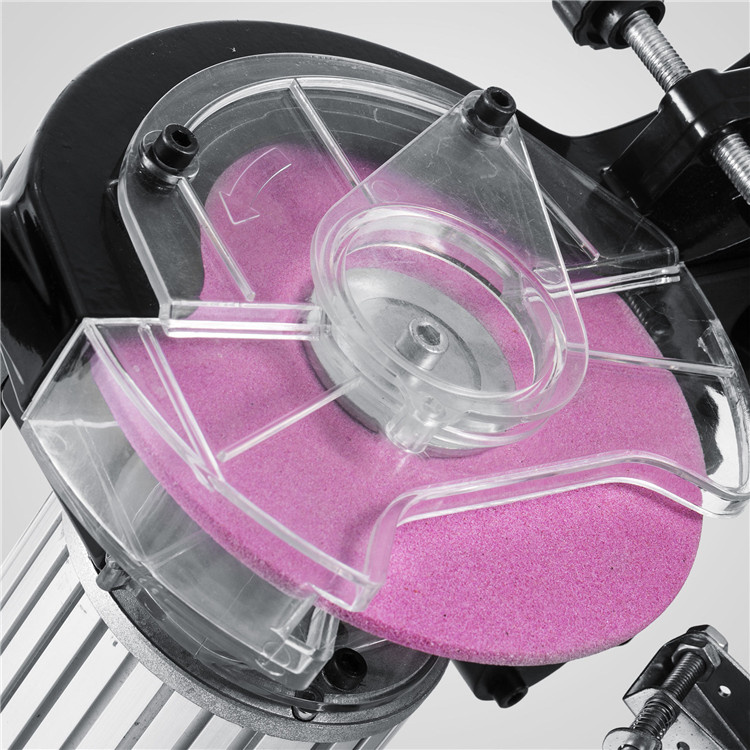

- Large grinding wheels(5-1/2" in diameter)
- Constant 3000rpm Commercial Motor ensures you never burn, hot spot or soften your chain
- Sharpen all pitches from 1/4, .325, .404, 3/8
- 2 years warranty
Specification:
- Supply voltage: 110V
- Motor input power: 230W
- Maximum speed: 3000rpm
- Protection: IP20
- Noise level: ≤85dB(A)
- Grinding wheels size: 5-1/2" Diameter
- Sharpens chain pitch: 1/4" / .325" / 3/8" / .404"

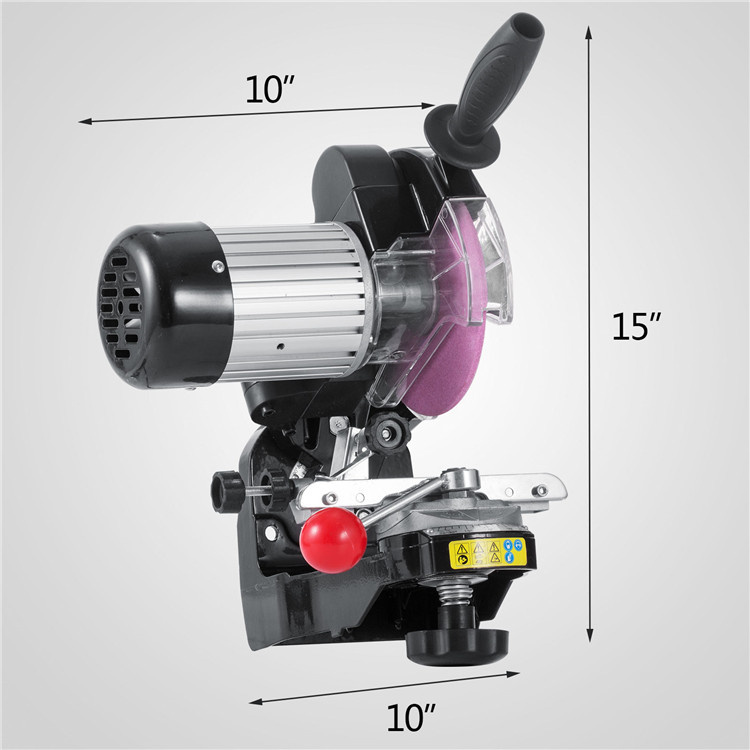

- Package dimension: 17"x11"x9"
- Weight: 12.8lbs
Images For Details:
- 1 X Grinder
- 2 X Grinding Wheels - 1/8" & 3/16" (5-1/2" diameter)
- 1 X Manual (with complete assembly andmaintenance instructions)
- 1 X 4mm & 5mm Wrenches
