| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Low Carbon Steel Wire |
| Application: |
Construction Wire Mesh |
| Hole Shape: |
Hexagonal |
| Technics: |
Woven |
| Usage: |
for Flood Control and Folld Fighting. |
| Surface Treatment: |
Galvanized and PVC Coated |
| Size: |
1X1X1,2X1X1,3X1X1,4X1X1,4X1X0.5 |
| Aperture: |
60X80,80X100,80X120,100X120,120X150... |
Product Description
Gabion
Product Description

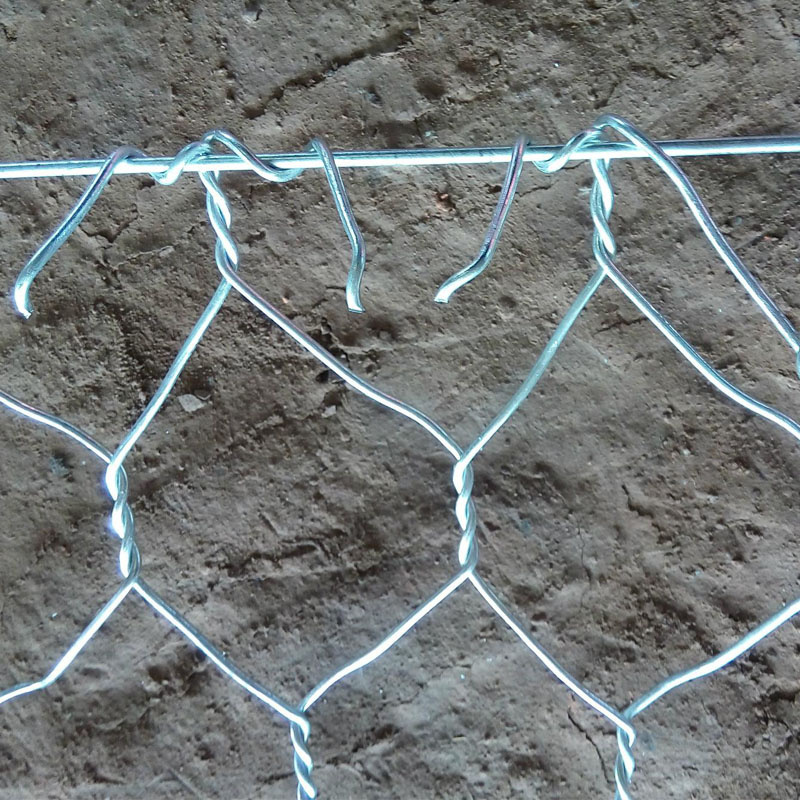

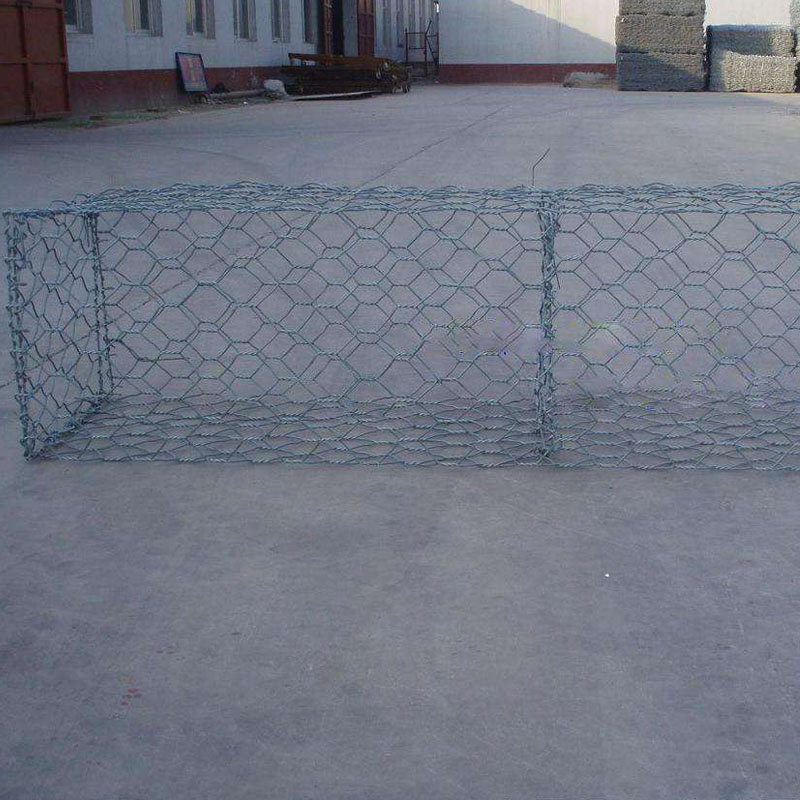

GABIONS (Greater than 1' in height) and MATTRESSES (Less than 1' in height) consist of rectangular units, fabricated from a double-twisted hexagonal mesh. Filled with stones, gabions become large, flexible and permeable elements from which a broad range of structures may be built.
GABIONS or MATTRESSES are divided into cells with diaphragms (usually spaced at 1 meter or 3' intervals), whose function is to reinforce the structure. The mesh (except for the diaphragms) is reinforced on all edges with wires of a larger diameter to strengthen the gabions and facilitate the assembly and installation.
All Kinds Of Gabion or Mattress
> Hot-dip galvanized, ( Zinc coating: 50g/m2)
> Heavy Hot-dip galvanized, ( Zinc coating: Min 240g/m2)
> Galfan Coating, (Zn - 5Al - MM coating)
>Electro Galvanized +PVC Coated, Hot-dip galvanized+PVC Coated, Heavy Hot-dip galvanized +PVC Coated.
> Galfan coating +PVC Coated.
All kinds of colors can be coated according to customers' special requires| Gabion Cage / Box |
Wire Mesh
(mm) | Galvanized
Wire Thickness
(mm) | PVC Coated
Wire Thickness
(mm) | Overall Size
(M) |
| 60x80 | 2.0-2.8mm | 2.0/3.0--2.5/3.5mm | 2x1x1
3x1x1
3x2x1
4x1x1
4x2x1
5x2x1
6x1x1
6x2x1 |
| 80x100 | 2.0-3.2mm | 2.0/3.0--2.8/3.8mm |
| 80x120 | 2-3.2mm | 2.0/3.0--2.8/3.8mm |
| 100x120 | 2-3.4mm | 2.0/3.0--2.8/3.8mm |
| 100x150 | 2-3.4mm | 2.0/3.0--2.8/3.8mm |
| 120x150 | 2.0-4.0mm | 2.0/3.0--3.0/4.0mm |

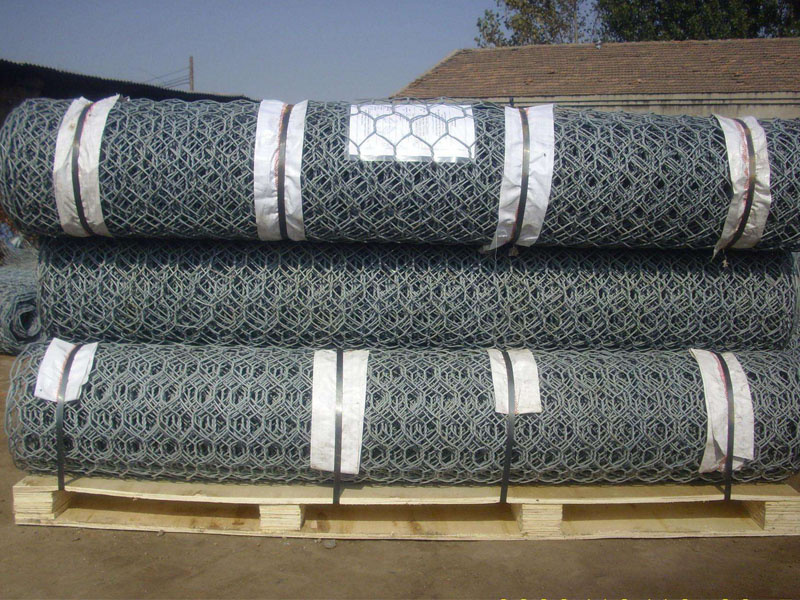

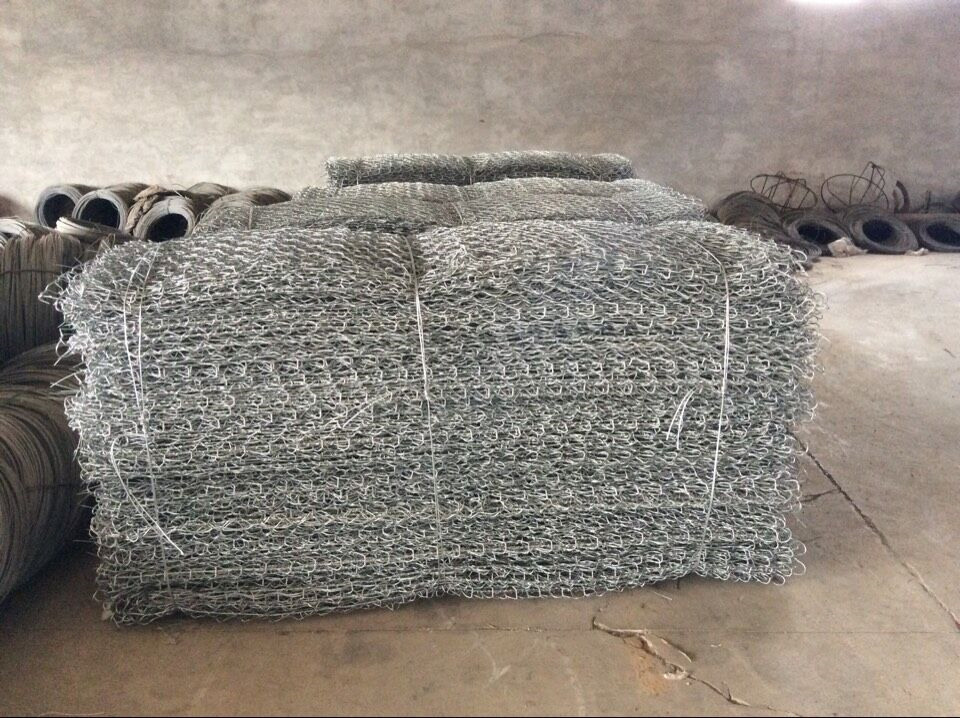

Package:
>Flat bundle,binding with steel strape or strands
>Plastic film outside per dozen.
>Special requires package and brand label will be accepted.
Usage:
Gabion it's used to fill with selected stones to make a stable building material in the controlling and guiding of water of flood, protection of seawall, slope,bride protection system,road and other civil engineering, is a superior material for flood control and folld fighting.
Anping County Maorong Wire Mesh Products Co., Ltd is located in famous "China Wire Mesh-Anping Town", we're a specialized Manufacture and Self-managerial Import &Export Authority factory.
For our company products variety:
Our company products are mainly in wire mesh, fence and iron wire. It's detail in covering such as welded wire mesh, waving wire netting, galvanized and black iron wire, barbed and razor barbed wire, stainless steel wire or mesh, square mesh, gabion, window screen series, expanded steel sheet, perforated metal and wire mesh fence including highway, railway and airport fence etc. The products are used in industry, farming construction, transportation and mining for protection of structure, safety segregation, keeping of poultry and livestock and decoration etc.
For our company products price, quality and service:
Our company is armed with advanced precision mold manufacturing equipment, automatic assembly line and inspection/testing devices to produce according to IS9001 standard. The company adheres to the business principle of "attractive in price and quality", and provides considerate service based on its years of experience in these products.
For our company sales team:
Our company has strengthened sales operation with a team of experienced and responsible members to open market throughout the world, such as Europe, South America, Africa, Russia and Southeast Asia.
