| Prod Model: |
HD5186 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| OEM: |
Yes |
| Panle Materials: |
304 Stainless Steel |
| Handle Materials: |
304 Stainless Steel |
| Mortise Type: |
U.S.a Standard or EU Standard |
| Cylinder: |
EU Standard/Hidden |
| Battery: |
4 PCS 1.2V Batteries |
| Packaging Details: |
8 PCS/Carton |
| Delivery Detail: |
15 Work Days |
| Suitable Door Thickness: |
38-70mm |
| Quality: |
CE,FCC and Intertek |
| Type: |
Mifare Card |
| Material: |
Stainless Steel |
| Surface Treatment: |
Brushed Stainless Steel |
| Style: |
Modern |
| Remote Control: |
With Remote Control |
| Power Type: |
AC |
| Data Storage Types: |
Offline |
| Certification: |
Intertek |
| Color: |
Silver |
| Usage: |
Apartment |
Product Description

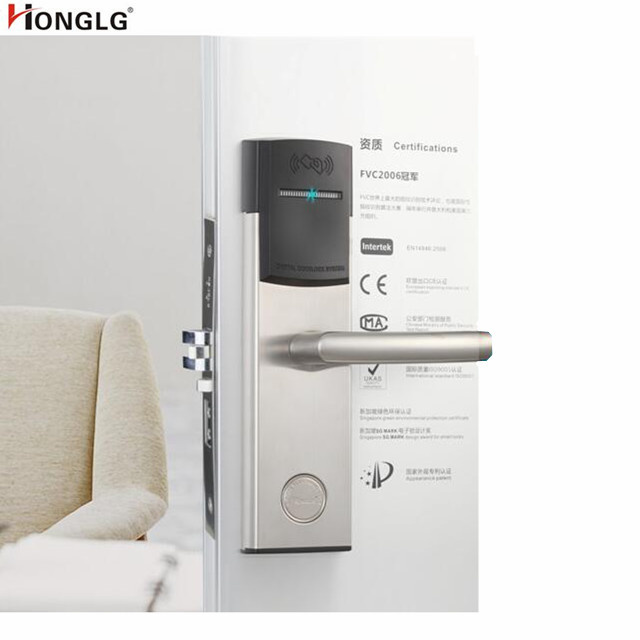

Manufacturer Supply 304 Stainless Steel Electronic Smart RF Card Hotel Door Lock (HD5186)
*Basic information
1. Panel and handle material: 304 stainless steel
2. Surface treatment: PVD, drawing, electro plating, satin

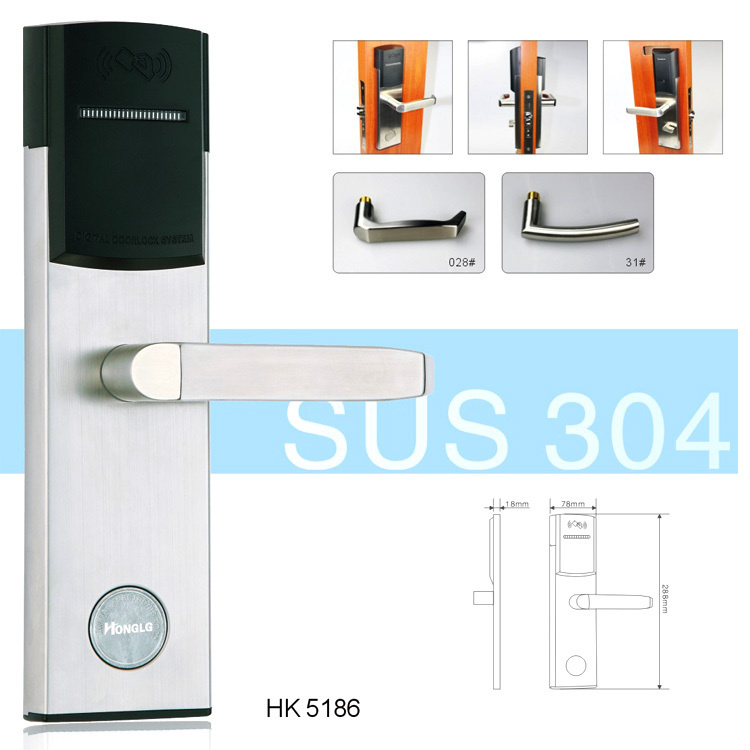

3. Product Dimension:
Outside Panel: 288mm(L)×78mm(W)×18mm(D);
Inside Panel: 288mm(L)×78mm(W)×18mm(D);
4. Unlocking ways: card+mechanical key
*Technical Parameters | Card capacity | 128 pcs |
| Reading time | <1s |
| Reading range | <5cm |
| T5557 sensor frequency | 125KHZ |
| M1 sensor frequency | 13.56MHZ |
| Working voltage | 4 pcs AA alkaline battery |
| Static current | <15μA |
| Dynamic current | <30μA |
| Low voltage warning | <4.8V, 250 times at least |
| Working temperature | from -10°C to 60°C |
| Working humidity | 0%-95% |
| Material | 304 stainless steel |
| Suitable door thickness | 40mm-60mm |
| Battery life | 14 months |
| Lock use life | 10 years |
| Color | silver/golden/bronze |

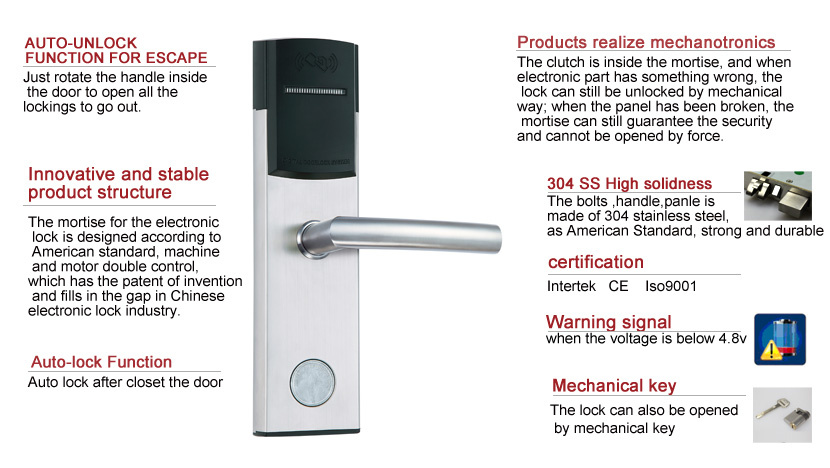

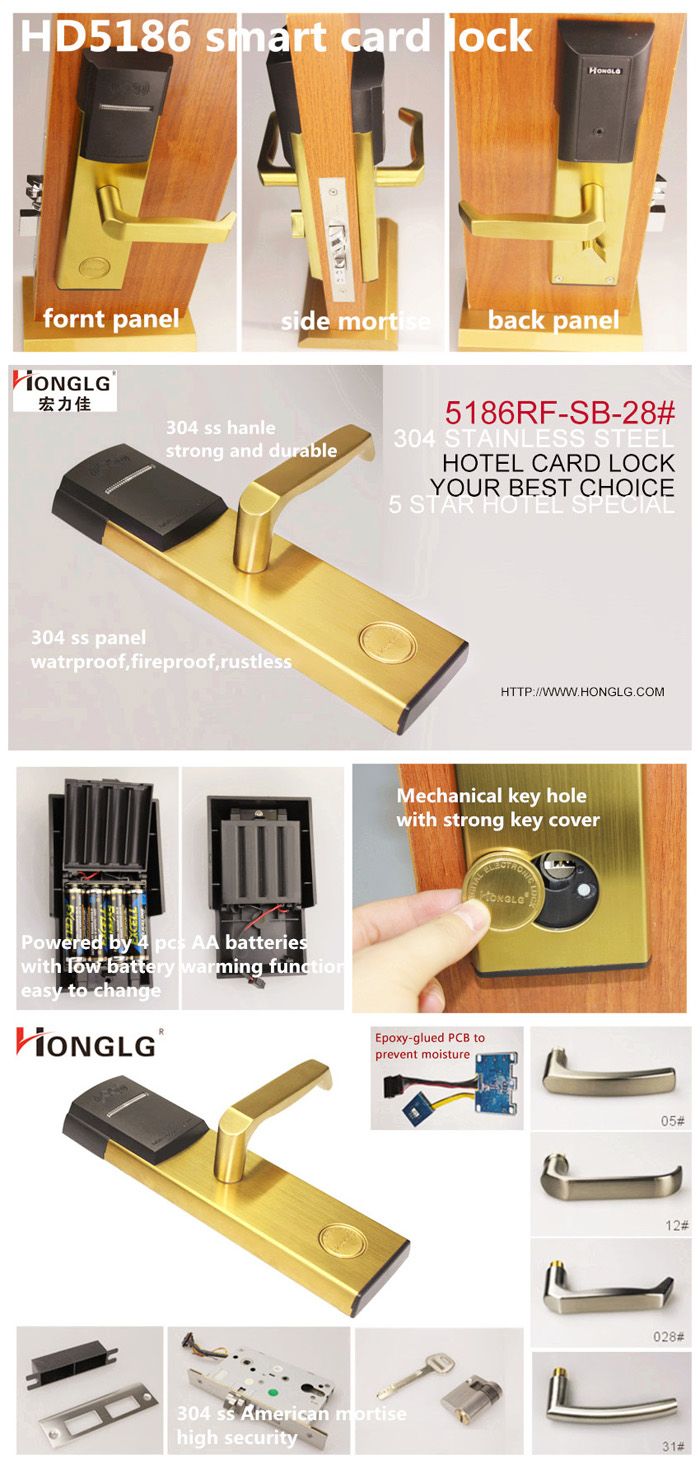

*Product details
1.PCB is specially treated with anti-oxidant glue which is dust-proof and water-proof.
2.U.S.A standard mortise with five latches
3.with CE certificate, MA test report and EU highest standard Intertek certificate
4.high security cylinder
5.unique design to match pin tumbler structure
6.pass through 100,000 times of opening testings
*The control system of HONGLG hotel intelligent lock
1.Electronic key door lock , which install on the doors, to keep room security.
2. Encoder: To issue all the open door cards, the master cards, floor control card for waiters, building control card, guest cards and so on.
3. Card: To open the door, and insert to the switch to get power in room.
4. Recorder: To collect the open door date, such as who, at what time, use which card to open the door.
5. Energy saving switch: install in room, to control the room power after insert the open door cards.
6 .Software system: install on computer to manage the whole working system, at the reception, for guests check
*About us
*Established in 2002 initially name was Dongguan Shijie HongLG Electronic Factory;
*In 2004 manufactured the first aluminum alloy material electronic hotel lock in China;
*In 2005 manufactured the first split model electronic hotel lock HD8018, HD8019 in China;
*In 2006 supplied over 2000 locks for Doha Asia Games Athlete apartment.;
*In 2007 developed the first biometric fingerprint lock;
*In 2009 supplied for 2nd Summer Youth Olympic Games Athlete apartment;
*In 2011 supplied for 10th national games Athlete apartment;
*In 2012 the first face recognition lock in China;
*In 2013 supplied for 12th National Games Athlete apartment;
*In 2016 updated to Dongguan Yinlang Electronic Technology Co. Ltd
*In 2017 we launched 7 new products for customers providng more suitable options for market.
We keep moving….
*Our service:
*Delivery terms:
DHL,UPS,EMS, sea trasportation are available.
The locks will be shipped whithin 7 days upon receiving your payment
*Warranty
2 year warranty.
If the lock does not work under warranty (except man-made improper factors), we will not charge any parts cost. If it goes broken after the warranty, cost of replacing parts and maintenance will be charged.
*Our quality:
1. CE certificated
2. FCC certificated
3.Intertek certification
4. ISO 9001:2000-certified management
5. King Dee ERP system
6. 16-step QC regimen
7. Advanced production equipment to make sure the good quality
*Our Customers:
*Our Contact Information:
HONGLG electronic factory was established in 2002. HONGLG is an innovative internationalhigh-tech enterprise. We specializes in the development and application of the electronicdoor lock, we provide professional electronic lock solutions for hotel, apartment, office building, college and household users etc.
In 2007, HONGLG enter and be stationed in the international electronic manufacturing city-Dongguan.
HONGLG became the one-card-pass door lock nominated supplier of 2006 Doha Asia Games Athlete Aaprtment in this field.
We are honord to became the special supplier of 12th National Games Aaprtment Electronic Lock in 2013 again.
HONGLG built a good relations of cooperation with many hotel management company for the moment.
We service the public with our brand based on serialization, professionalization and exquisite products.
The whole HONGLG series products had gained the EU Intertek certification, CE and MPS MA certification. Honglg built EU RoHS instruction system and operating efficiently in this field. HONGLG is one of the most famous brand electronic lock manufacturer now.
HONGLG have great research team and perfect production management team, we formated innovative develop mode in system intelligent and electronic product technical widespread use. HONGLG team always working hard, trying our best to make the intelligent electronic lock system more perfect.
The future marketing strategy core of HONGLG is brand construct promotion and differentiation segmentation.
HONGLG! Let's fighting together!
