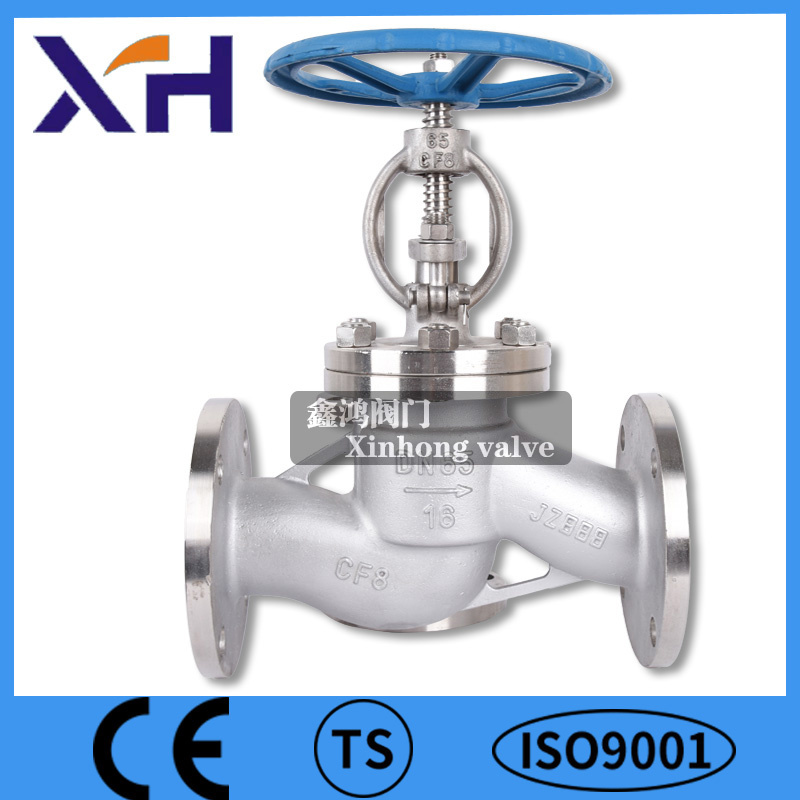

304 Stainless Steel Hight Quality Flanged Globe Valve Dn15

304 Stainless Steel Hight Quality Flanged Globe Valve Dn15
Price: US $ 21.2-21.4/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: J41W
Name: Flanged Stop Valve
Body Material: 304
Working Pressure: 1.0~1.6MPa
Connection: Flanged
Material: Stainless Steel
Connection Form: Flange
Channel: Straight Through Type
Structure: Fixed Ball Valve
Type: Flexible Ball Valve
Application: Water Industrial Usage
Function: Control Pipe

Product Description

PRODUCT
  Sealed valve flange globe valve belong to mandatory, so the valve is closed, must be pressure on the disc, to force a sealing surface does not leak. When medium by disc below into the valve 6, the operating force needed to overcome the resistance, is stem and packing of the friction force and the thrust produced by medium pressure, close the valve strength is stronger than open the valve, so it's bigger, the diameter of the stem or stem top bending failure happens. In recent years, from the valve seal, flange globe valve is replaced by the disc above the medium flow direction into the valve cavity, in the medium pressure at this moment, close the valve of the force is small, and the strength of the valve, the valve stem diameter can be reduced accordingly. At the same time, in the role of media, this kind of valve is tight. Valve in China "three for" regulation, the flow of cut-off valve, shall be applied. The cut-off valve opens, the opening of the disc height, is 25% ~ 30% of nominal diameter, flow has reached maximum, said valve to full open position. So stop valve fully open position, should be determined by disc's schedule. This valve shall generally be installed in the pipeline.

Material: stainless steel

Working pressure: 1.6-2.5Mpa

Size: 1/2 "~8"

Applicable media: water, gas, oil etc.

COMPANY INFORMATION:








WENZHOU Xinhong valve&pipe fitting Co., Ltd was established in 2003, which is specialized in designing and manufacturing Stainless Steel& Carbon Steel Ball Valves, Gate Valves, Globe Valves, Check Valves and pipe fittngs. With almost 16 years of production experience, we have become one of the leading manufacturers in this field.

Our company strictly complies with ISO9001: 2008 system, and we have certificates CE, TS ect. We mainly produce valves according to standard ANSI, DIN, JIS and China GB standards. Our products are widely used in the fields of water, oil, gas, petroleum, chemical and city pipeline networks. With good quality and services, we have gained a good reputation from customers from home and abroad.

Facing the furious competition of the valves market, we will fully exert our advantages in technology and management to continously improve our product quality and manufacture high quality valves to satisfly customers.

We welcome friends from home and abroad to join us, and share the markets around the world.
