304 Stainless Steel Wire Mesh 1 Micron for Filter
Price: |
US $ 25.6-67.8/Roll |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Roll |
Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Prod Model: |
QK0001 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Wire Diameter: |
0.1-5mm |
Mesh: |
1-1635mesh |
MOQ: |
10 Rolls |
Have Exported: |
USA, EU, Japan and Africa, etc |
Feature: |
Acis Resist, Alkali Resist |
Sample: |
Free |
Surface: |
Smooth |
Color: |
Silvery |
Width: |
0.914m, 1m, 1.2m, 1.5m, etc |
Mesh Range: |
0.01mm-50mm |
Material: |
SUS304 |
Hole Shape: |
Square |
Application: |
Cages |
Type: |
Stainless Steel Plain Wire Mesh |
Material Type: |
Stainless Steel Wire |
Weave Technique: |
Plain Weave |
Technique: |
Woven |
Nickels: |
8% |
Certification: |
SGS |
Wire Mesh Width: |
3FT, 4FT, 5FT, 6FT, Ect |
Product Description

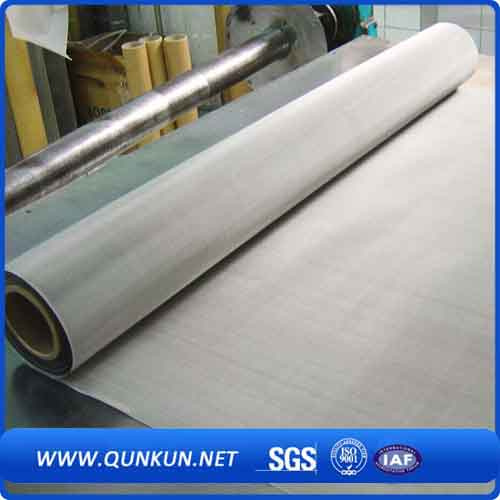

Stainless Steel Wire Mesh
1. Products Description- Material: SS 201,202,304,304L, 316,316L, 321, 430,ect
- Usage:The wire mesh made of stainless steel is extensively used in mining , chemical industry, food industry and pharmaceutical industry.
- MOQ: 10 rolls
- Woven style: plain,twill,dutch
- Mesh :1-100mesh
- Diameter: 0.02-5.0mm
- Packaging Details: inner kraft, outside plastic cloth, put into wooden pallet or case
- Delivery Detail: 10-15 days after received your deposit.
- Have exported: USA, EU , Japan and Africa, etc
- We have free sample,if you want
2. SpecificationsMesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB) /100 Square Foot |
Inch | MM | Inch | MM |
1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |

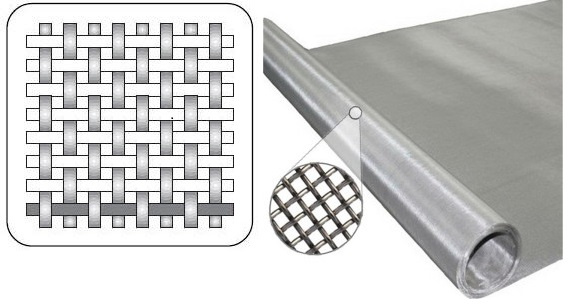

Plain Weave: Each weft wire passes over one and under one warp wire, and each warp wire passes over one and under one weft wire, every weft wire have and warp wire the same diameter.
Characteristics: square aperture ,high flow through , relative high open area, as result less pressure drop during filtration suitable for all kinds of filtration up to 63 µm.

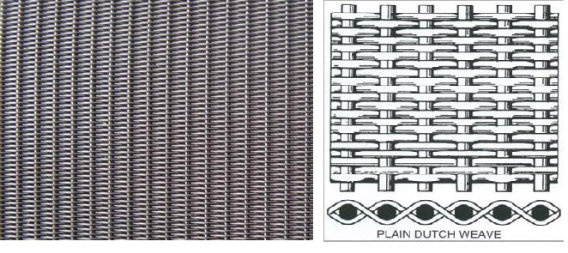

Plain Dutch Weave: woven as a plain weave. Each warp wire and each weft wire passes over and under the next adjacent complementary wire, as in normal Plain Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction.
Characteristics: "zero"-aperture, more solid than square or rectangular mesh, relative high open area, suitable for all kinds of filtration.
Twill weave: Each weft wire passes over two and under two warp wires, and each warp wire passes over and under two weft wires. The wire diameter for both(warp and weft)is mostly the same.
Characteristics: square aperture, less rigid than plain weave, especially suitable for deforming, strong wire cloth due to ratio of wire diameter and aperture, it is mostly used for filtration less than 63 μm . Dutch Twilled Weave: Each warp wire and each weft wire passes over and under the next two adjacent complementary wires, as in a normal Twill Weave, except the warp wires are larger in diameter than the weft wires. This allows a greater mesh count in the weft direction. This weave pattern enables the weft wires to be woven more densely, and much smaller aperture sizes can be achieved without forsaking cloth thickness.
Characteristics: "zero" aperture, light-proof woven, high resistance due to tight wire position, extreme low absolute grade of fineness(down to 5-6μm),high filtration performance in case of low viscose medium, it is the finest filtration in hydraulic systems, especially for critical applications as aero-space, fuel-and combustion. 3. Advantages we have:
1.More than 10 Experiences supplier
2.We are madeinchina trade assurance,factory recognized by "CE/FSC/ISO9001" and so on.
3.7x24 service for you,all the question will be dealed anytime.
4. Benifit you get:
1.Stable quality:Coming from good material
2.Low price:No cheapest but the lowest at the best quality.
3.Good service:Satisfactory service before and after sale.
4.Delievey time:10-20 days for mass production
5. Produce Process
Dear friend,our requirement for produce process is strict.So you do not need worry the quality.If you want to know any details.Just Tell us.
6. Packing & Shipping
7.Company InformationHebei Qunkun Metal Product Co., Ltd is a premier manufacturer and supplier of wire mesh products located in Anping Town, the famous Wire Mesh Land of China. We have engaged in wire drawing, wire mesh weaving and metal fabricating for about ten years and have accumulated rich experiences in this field.
Our Products:
Stainless steel wire mesh Hexagonal wire netting, gabions, chain link fence, wire mesh fences,
welded wire mesh, welded wire panels,expanded metal mesh,Dutch woven wire cloth,galvanized
square wire mesh, galvanized wire, insect screen, barbecue grill netting, razor wire, barbed wire and fencing accessories.Any need,just told us.
