| Price: | US $ 4589-4893/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union |
| Prod Model: | TKS-040 |
|---|---|
| Frequency: | 50 & 60Hz |
| OEM: | Acceptable |
| Customized: | Acceptable |
| Protection: | IP55 |
| Internal Efficiency: | 85% |
| Material: | Aluminum |
| Flow Direction: | Centrifugal |
| Pressure: | High Pressure |
| Certification: | TUV |
| Usage: | Air Drying/ Cleaning System |

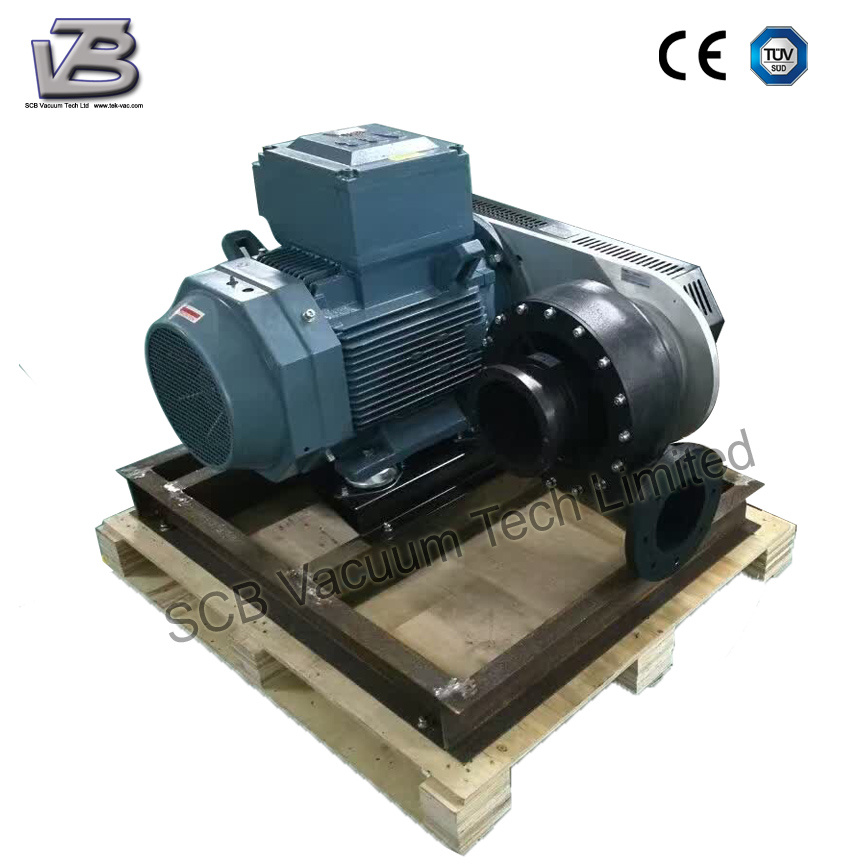

Biogas Power Generation 30kw High Air Flow Super Blower Introduction
SCB Vacuum are a company which develop blower for some years. Our main products is air blower, vacuum pump, belt-driven blower, vacuum blower, regenerative blower, ring blower, side channel blower and all parts. The full range models will support you much well in the market.
Air blower are using Die-casting technique, to make sure provide all blowers with stable the capacity and peformance.
The terms we appreciate is FOB, CFR, CIF and EXW etc.
Welcome contact us for more technical information and competitive price!
Biogas Power Generation 30kw High Air Flow Super Blower Advantages
1. Energy conversion reaches 85%, save more energy
2. Max air flow reaches 6000m3/h
3. ABB motor, IE2, IE3 standard, stable capacity
4. 1set 7.5kw belt-driven blowers replace 4sets 7.5kw side channel blower, save energy
5. New design, competitive price
6. Company passed TUV and ISO
7. Pump head using Teflon, anti-corrosion!
Biogas Power Generation 30kw High Air Flow Super Blower Specifications
| Model | Power | Working Point | Internal Efficiency | Air Density | Rated Speed | N.W. | |
| Air Flow | Pressure | ||||||
| KW | m3/h | mbar | % | (kg/m3) | RPM | Kg | |
| TKS-025 | 18.5 | 1926 | 300 | 85 | 1.12 | 18000 | 220 |
| TKS-030 | 22 | 2267 | 300 | 85 | 1.12 | 18800 | 230 |
| TKS-040 | 30 | 2859 | 350 | 85 | 1.12 | 20000 | 250 |
| TKS-050 | 37 | 3270 | 400 | 85.5 | 1.12 | 20000 | 300 |
| TKS-060 | 45 | 3591 | 450 | 85.5 | 1.12 | 21000 | 320 |
| TKS-075 | 55 | 3848 | 500 | 85.5 | 1.12 | 22000 | 350 |
Model: TKS-040 Brand: SCB
Frequency: 50/60Hz Motor: IE2 / IE3
Power: 30 kw Voltage: 220V / 380V
Air flow: 2859m3/h Pressure: 350 mbar
Packages: Packed in cartons Dimension: 1450*1250*1350
Installation ways: vertical and Horizontal Outlet: 360 around

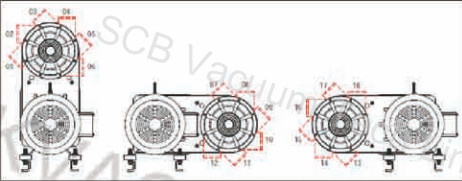

Biogas Power Generation 30kw High Air Flow Blower Outlet Installation Ways

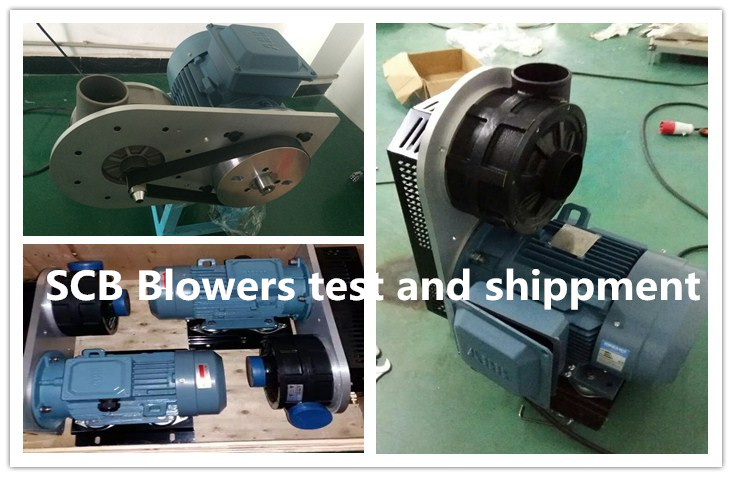

Biogas Power Generation 30kw High Air Flow Super Blower Test and Shippment

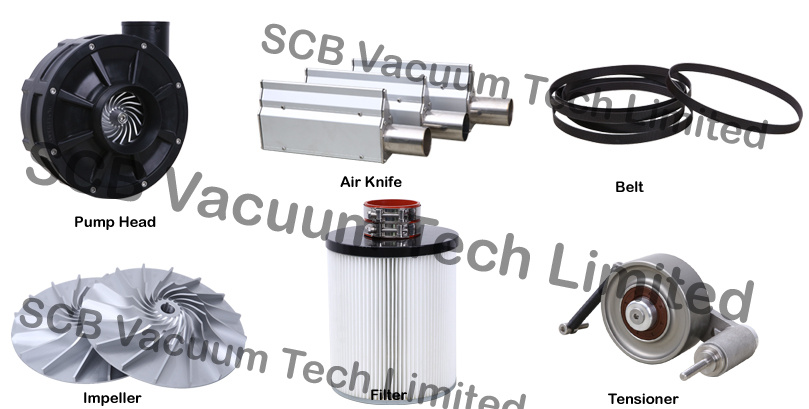

Biogas Power Generation 30kw High Air Flow Super Blower Fittings

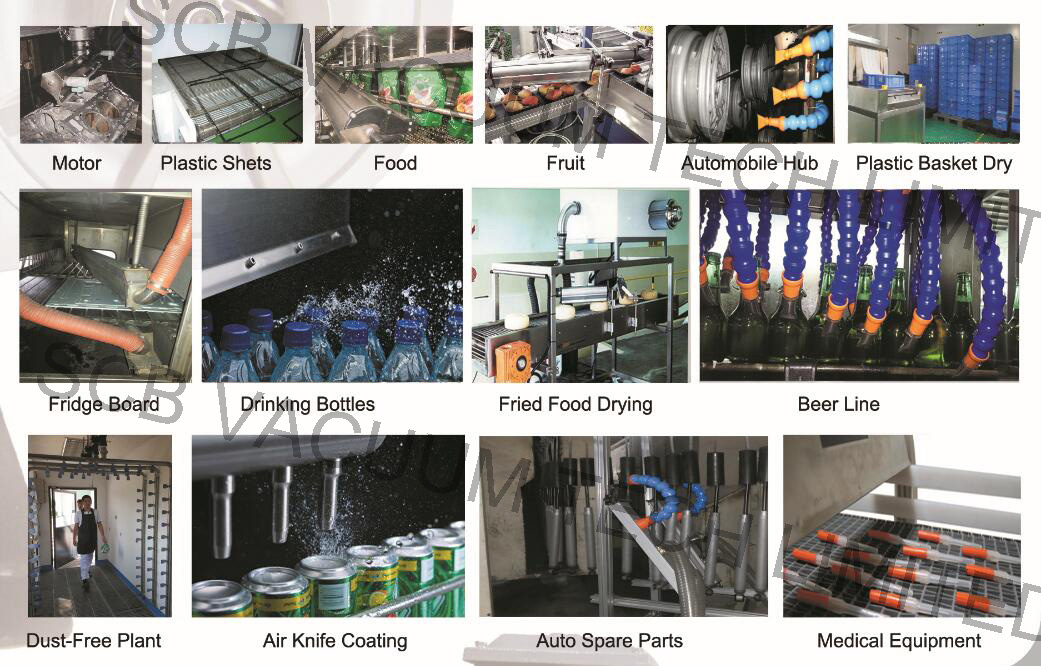

Biogas Power Generation 30kw High Air Flow Super Blower Applications
A. Ultrasonic Washing and Cleaning Equipment
B. Fridge board drying
C. Dust-Free Plant
D. Auto part Drying
E. Plastic sheet Drying
F. Electroplating parts Drying
G. Plating Drying and Cleaning System
H. PCBA Cleaning and Drying Equipment
I. Material Handling and Conveying
J. Water Treatment
K. Tank Aeration & Aquaculture & Shrimp (Fish) Farm
L. Vacuum Filling Equipment & Bottling drying system
M. Spa Pool & Swimming Pool Equipment & Jacuzzi Spas
N. Air Coating & Spraying System
O. Biogas Transportation & Biogas Power Generation
Etc.

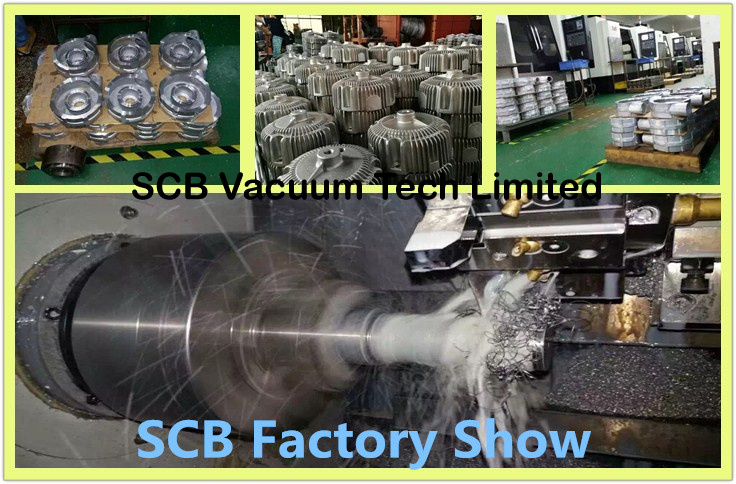

Biogas Power Generation 30kw High Air Flow Super Blower Factory
SCB Vacuum Company service
A. Professional design and die-casting blowers make sure the stable capacity
B. Engineer Teams help you choosing the best suitable models
C. OEM service available
D. Full products range: ring blowers, belt-driven blowers, Atex blowers, IP55 etc
E. 1 year warrenty, 24hours service support
F. Super quality with Competitive Price
G. Delivery time is 1week after payment
H. Certificates: CCC, CE, TUV
Welcome contact us to get the latest datas and price!
