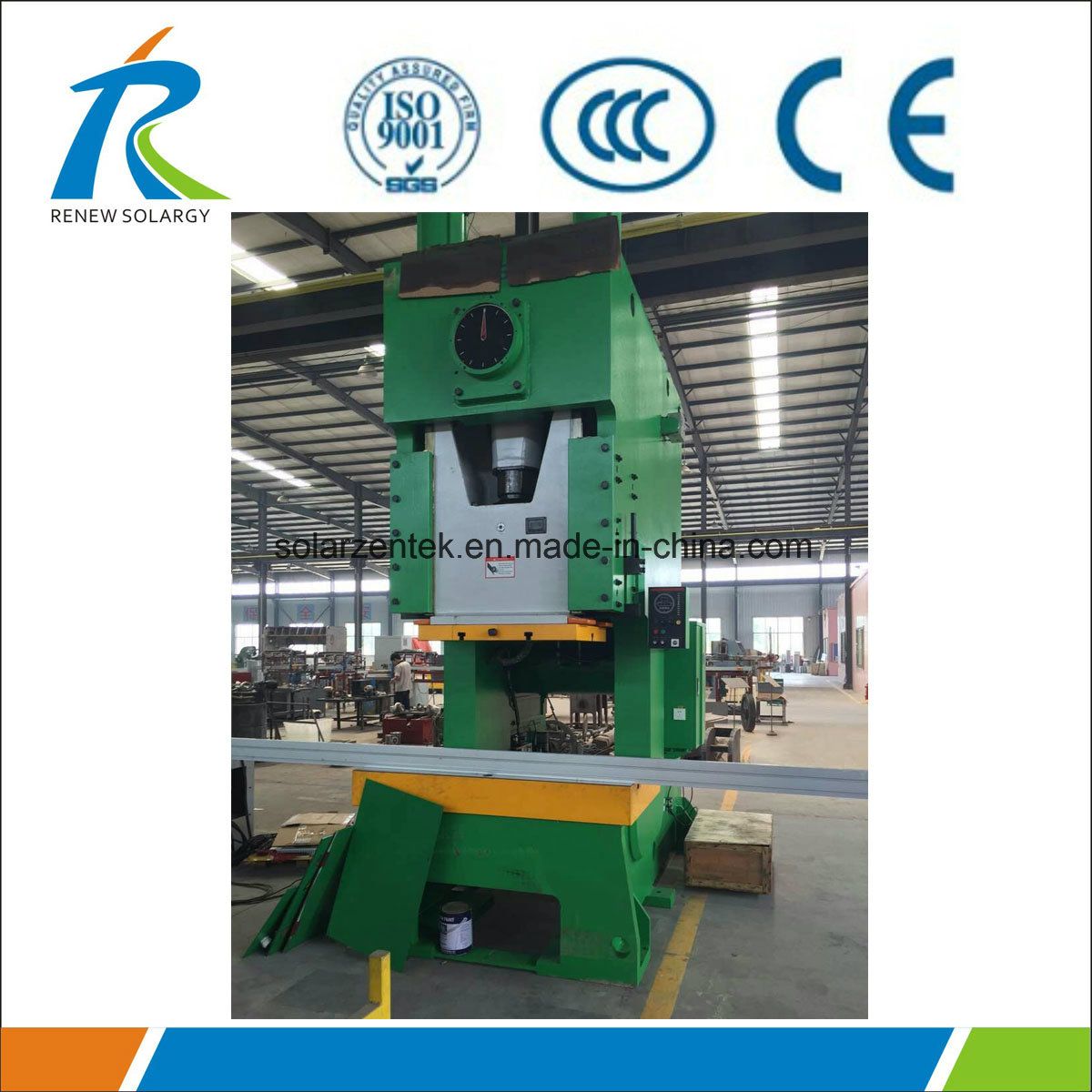

315t Metal Sheet Punching Machine with Mechanical Power

315t Metal Sheet Punching Machine with Mechanical Power
Price: US $ 64000-100000/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Rated Force: 3150kn
Rated Travel Distance: 7mm
Slider Tarvel Distance: 280mm
Column Gap: 980mm
Work Table To Ground Distance: 1000mm
Main Motor Power: 30kw
Type: High-Speed Punching Machine
Automatic Grade: Automatic
Power Source: Mechanical Drive
Precision: Precision
Controlling Mode: Mechanical

Product Description

This machine is mainly used to press/punch metal sheet (carbon steel, stainless steel <2.5mm) with 3150KN power. Mode is customized.



Detail parameters as following:

Power Press Machine Parameter
ItemUnitParameter
Rated forcekn3150
Rated travel distancemm7
Slider tarvel distancemm280
Speedmin30
Max.die setup heightmm500
Die setup height adjust rangemm12
Distance of slider to bodymm450
Column gapmm980
Slider bottom sizeLeft-rightmm950
Front-backmm700
Die handle hole sizeDiametermm70
Depthmm100
Work table sizeLeft-rightmm1540
Front-backmm880
Thicknessmm190
Material cuttong hole sizemm200
Work table to ground distancemm1000
Foundation bolt gapFront-backmm2150
Left-rightmm1500
Main motor powerkw30
Outside dimensionFront-backmm2880
Left-rightmm1750
Heightmm3920
Weight (approximately)kg26800

Machine package:

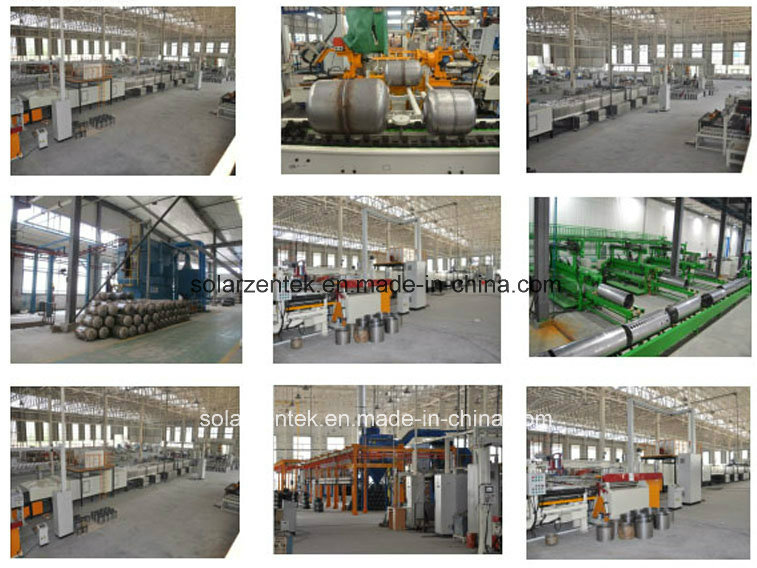

We have build complete production line in India, Uzbekistan, Egypt, UAE. Machines also simple machines exported to Brazil, Turkey, LTU, Mexico and so on.

Other Electric Water Heater Production Machine that we are offering:




Our Services:

-  professional package

-  professional engineer offer tech. support

-  machine try running and test before sending out

- engineer able offer overseas support

- professional intro manual documents and videos

If you have any interests to product electric water heater locally or update the machine that you are using, please feel free to contact us Technical service and best machine price will be offered at the first time.

Looking forward to hearing from you.

CSP Holding Group is dedicated to provide world-class hydraulic cylinder, solar energy products, automatic production line equipments and 5.0 pharmaceutical glass tubing for worldwide.

According to over 30 years experiences in our field, our quality and technology win high reputation from our customers and partners. Right now, we have worked with more than 20 countries partners around the world., such as USA, India, UAE, Uzbekistan, South Africa, Germany, Thailand and so on.

Our company is contributing to the energy saving and climate change in the spirit of openness and cooperation.

Hydraulic cylinder: Sino truck supplier, export to Vietnam, North Korea and so on, yearly 50% incresed sales and 0 send back rate.

Solar vacuum tube: Yearly more than 10 million PCS capacity, export over 2million tubes per year, brand name in India, Turkey, Mexico and so on

Water heater manufacturing automation line: First turnkey line abroad made sucessfully, India, Uzbekistan, Turkey, Mexico, UAE and so on. Top brand first choice, such as MIDEA, GREE, HAIER, GEMAKE, WEBER and so on

5.0Pharmaceutical glass tubing: First qualified 5.0 glass tubing in China, 20000tons /year, we are loking forward the global agent to use our quality tubes.

We are looking forward your kindly visit and discussion in any time
