| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Prod Model: | HZ-MB350 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Segment Dimension(L*W*H): | 42/40*3.4*10cm |
| Segment Numbers: | 25PCS |
| Welding: | High Frequency Welding |
| Slot Type: | U Slot |
| Saw Blank Material: | Manganese Steel |
| Apply For: | for Marble Cutting |
| Silent/Normal Blade: | Normal for This One,Silent Blade Is Ok for Your Re |
| Business Type: | Manufacturer |
| Quality Certifications: | ISO 9001-2000;SGS |
| Service: | OEM & ODM |
| Usage: | Engineering Material |
| Manufacturing Arts: | Welding |
| Kind: | Diamond Wheel |
| Saw Blade External Diameter: | 350mm |
| Graininess: | 60# |
| Thickness: | 2.4mm |
| Specification: | 14 Inch |
| Brand: | Hua Zuan Tool |
350mm Fan-segmented Type Mable Blade Belong to High Profit Margin Products:
Specification detail:
1.Segment size:42/40*3.4*10cm
2.Segment numbers:25pcs
3.Blank thickness:2.4cm
4.Inner core:50mm or can be design according to your requirement.
5.Usage:for marble cutting.Please tell us the rigidity of the marble you want to cut(or send us the image of stone is ok) and other requirements,our engineer will design the right products for you.Thanks.
Our advantages:
1.Enough sharpness and good cutting result.
2.Affordable,sharp and wear resisting.
3.Rich experience:more than 20 years' experience in research,development and stone cutting.
4.High sharpness:Our marble diamond segment is positioning in higher cutting efficiency.adjust lifespan according to their needs on the basis of enough sharpness.
5.Stable quality:spirit of striving for perfection,precisive fine training management,as well as stable and high professional produce team can make sure our products keep better quality stability.
Marble Diamond saw blade parameters:
Diameter (mm) | Segment dimension L*W*H | Core thickness (mm) | Segment number (pcs) |
300 | 40*3.2*8(10)&40/42*3.2*8(10) | 1.8/2.2/2.4 | 22 |
350 | 40*3.4*8(10)&40/42*3.4*8(10) | 1.8/2.2/2.4 | 25 |
400 | 40*3.6*8(10)&40/42*3.6*8(10) | 1.8/2.6/2.8 | 29 |
450 | 40*4.4*8(10) | 2.2/2.8/3.3 | 33 |
500 | 40*5.5*8(10) | 3.0/3.3 | 36 |
550 | 40*5.0*8(10) | 3.0/3.5 | 40 |
600/625 | 40*6.0*8(10) | 3.0/3.6 | 42 |
700/725 | 40*6.5*8(10) | 3.6/4.0 | 46 |
800/825 | 40*6.5*8(10) | 4.5/5.0 | 46 |
900 | 30*8*10 | 5.0 | 64 |
Other specifications are available upon request.

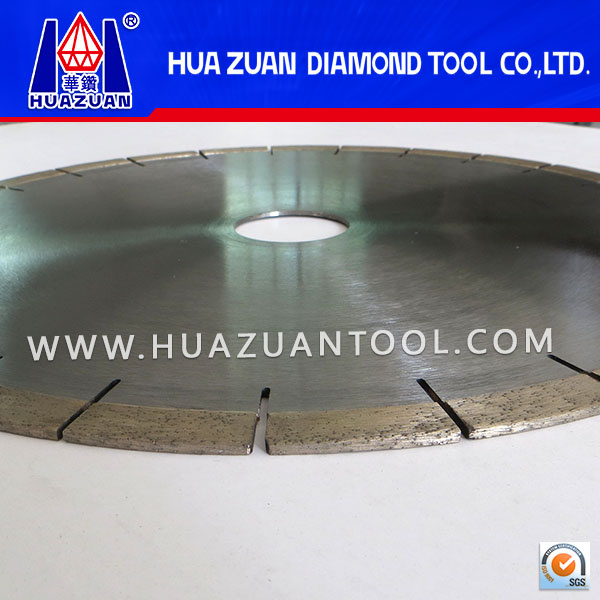

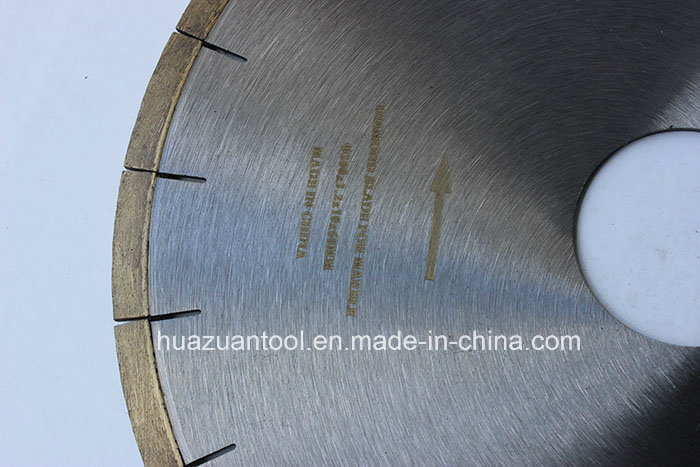

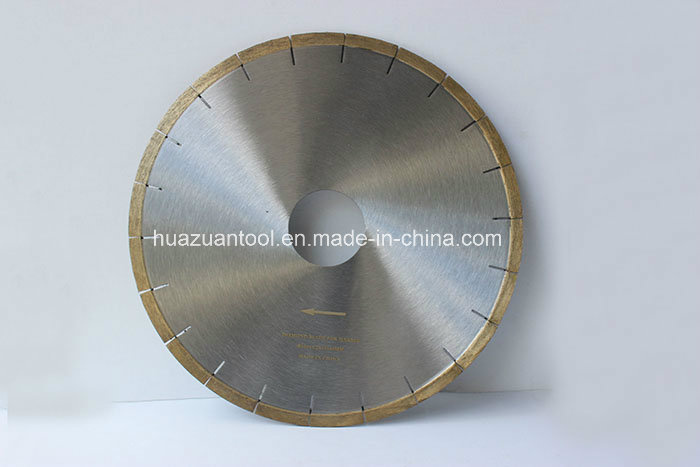

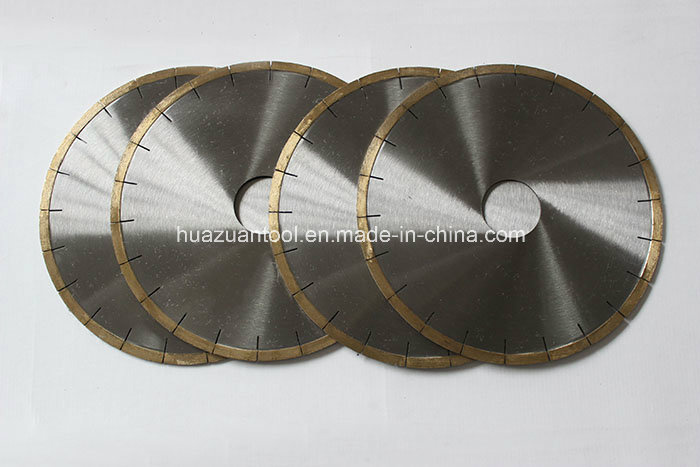

Product images:
Company Introduction:
Quanzhou Huazuan Diamond Tools Co.,Ltd.,established in 1994 and covering an area of more than 10,000 square meters,is an enterprise with more than 20 years' experience in research, development and production.
"HUAZUAN" means made in China,as solid and stable as diamond.Driven by diamond saw blade,diamond segment and diamond wire saw as for main products,company produce a series of high quality diamond grinding and polishing tools.
Continuous innovation are made with the aims to provide high efficient safe and environmental diamond tools for customers.
With the support of Huaqiao University Tool Research Institute as well as more than 20 years research and practice, we keep the lead of industry for product quality and producing technology,and build the outstanding business relationship with more than 50 countries and region partners.
We pursue the dreams that make HUAZUAN become the arena of realizing the dreams for clients,suppliers and staffs.In recent years,company make and practice a strategic plan to reinforce a high quality production system,create a consultant service team" and reached great success.
At present,China diamond tool constantly embody the competitiveness in the world ,we expect to contribute ourselves to change the poor quality image of China diamond tool in the world with our effect.
FAQ
Q:Which design is best for you?
A:Considering to cut different objects,there are a lot of diamond blades with different thickness,size,materialproportion,design and technology.You need to teel us what you will cut,its hardness,thickness,sharp,the speed you need.Then our engineer will design the right blade for you.
Q: Which grade is suitable for you?
A: We have economical ones and pro ones,please tell us your target price and the market you will sell.Then we will analyze and provide you the best price for you.
Q: Blade with or without sound attenuation?
Tell us if your country has the laws that don't allow so much noise or not,then we will arrange well for you.
