3D Maker Corrugated Box Manufacturers in China
| Price: |
US $ 20000-150000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
SYKM 420*3000 |
| Ink Type: |
1~6 Color |
| Usage: |
Paper Printing Slotting Machine |
| Belonging: |
Packing Machine |
| Using: |
Corrugated Sheet Printing Slotting |
| Used For: |
Carton Box Making |
| Working Type: |
Printing and Slotting |
| Making Type: |
Roll Print and Slot |
| Product: |
Carton Box Sheet |
| Automatic Grade: |
Automatic |
| Type: |
Carton Box Machine |
Product Description

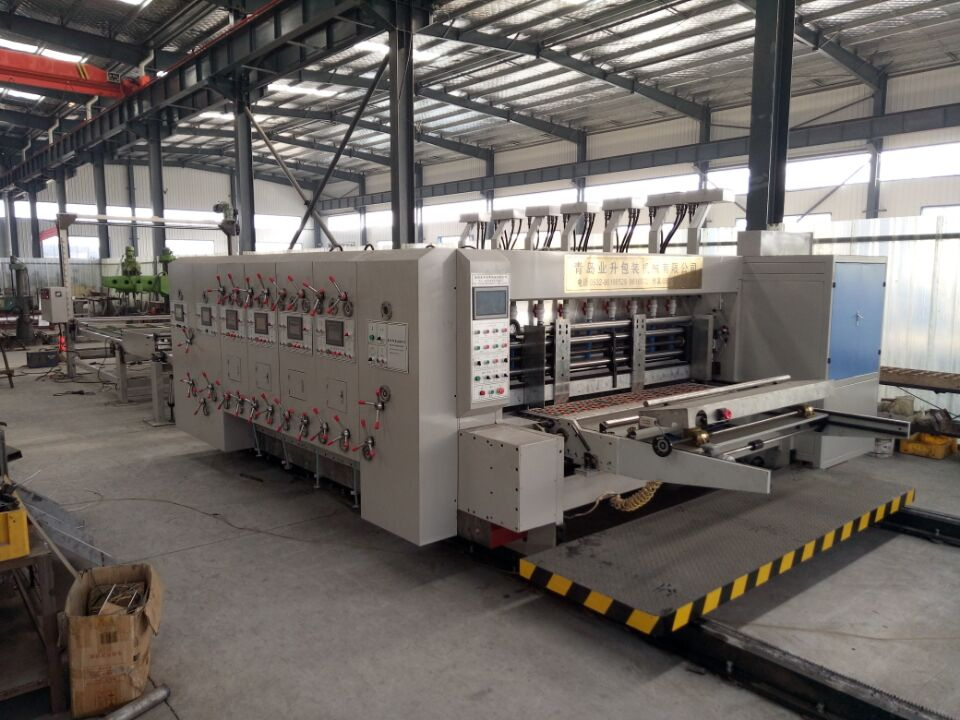

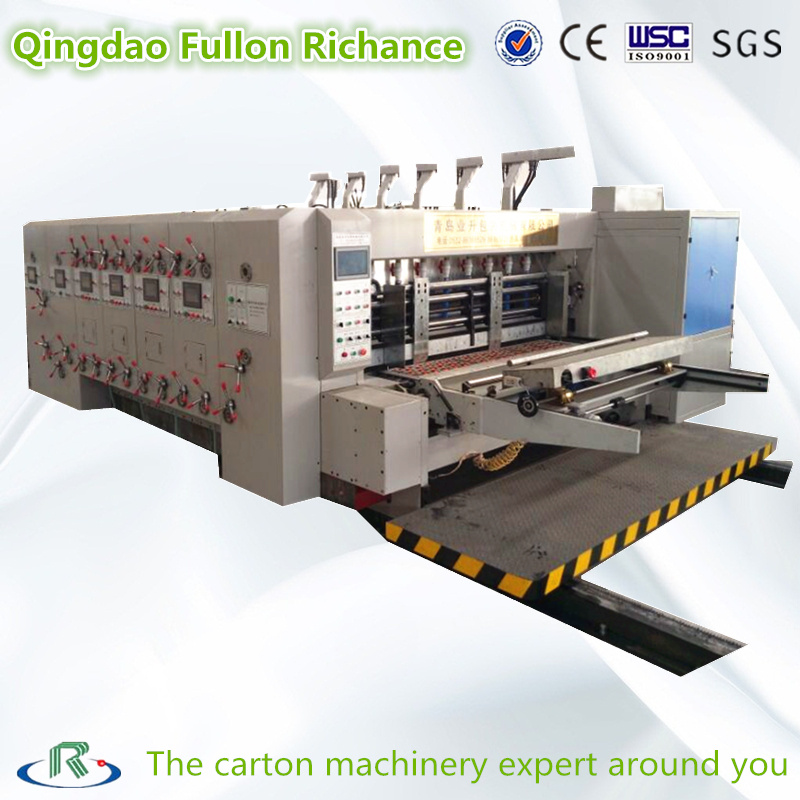

1 Series Corrugated Paper Board Printing Machine(Slotting)
About us:
1.We are the professional manufacturer of package printing machinery with more than 30 years production experience.
2.In the same industry of China, we are the first through the IS
O9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.
Features and features:
Electrical and computer software are used internationally renowned brands, stable and reliable quality;
The whole wall panels and important parts, are used to deal with aging, tempering to eliminate metal internal stress; are used high-precision machining center production, CNC grinding machine grinding processing.
Machine shaft, roller are used high-quality steel, tempering, quenching and tempering treatment; grinding processing, high-precision computer dynamic balance correction, the surface hard chrome plating
The whole transmission gears are all made of 45 # steel, high frequency quenching, grinding processing, to ensure long-term use of high precision chrome.
Machine transmission parts (shaft, tooth connection), are used key-free connection (expansion sleeve), to eliminate the connection gap, suitable for long-term high-speed high-speed operation.
Drive bearings, important transmission parts are used to strengthen the aligning bearings, easy maintenance, longer service life.
The whole lubrication system adopts spray automatic lubrication, intuitive display device, equipped with double oil line oil level balance system.
Machine adjustment preset function, feed, print, slot, die cutting, automatic zero, memory automatic reset.
machine work gap adjustment, the use of fast wrench adjustment, the implementation of fast and convenient adjustment.
host using frequency control, start, run more stable, more energy efficient.
The paper feed section is vacuum-fed and the leading edge is fed.
Optional: ceramic anilox roller; scraper set ink system; stacker.
Lack of ink alarm device, real-time monitoring ink system working conditions.
Machine with limit and overtravel display.
Machine work gap electric adjustment
Technical parameters| Model | SYKM 420*3000 |
| Plate | Printing |
| Color & Page | 1~6 Color Printing Press |
| Usage | Paper/Board Printer |
| Mechanical Inside Width | 3500mm |
| Max. Paper Size | 1300×3200mm |
| Min. Feed Height | 350×800mm |
| Max. Printing Area | 1300×3000mm |
| Skip Feeding Size | 1500×3200mm |
| Color Precision | +1-1mm |
| Standard Plate Thickness | 6mm |
Thickness of The Board
| 2-11mm |
| Min slotting interval | 150×50mm (Negative knife)
80×80mm (Positive knife) |
| Max. Production Speed | 150 Sheets/Min |
| Economical Working Speed | 120 Sheets/Min |
Advantage:
1.we promise you excellence in both quality and after-sale service.
2.we guarantee delivery your order in time.
3.as we are factory,we can provide you highestquality with the most competitive price.
4.If you are interested in our products and have any questions, please let us know, we will try our best to help you!
Thanks for your visit!
Qingdao Richocean Industry Co., Ltd is located in west coast of the Qingdao which is one of the most beautiful city in China, it is a wholly owned subsidiary of Jiaonan general machinery factory which was build in 1982 and one professional manufacturer for textile machinery series productions. Richocean Industry joined paperboard, carton machinery and cardboard printing machinery manufacturing industry in 1991. The company covers an area of 60 acres, existing production workshop 18000 square meters and more than 300 employees. Since the plant founded thirty years, company has been continuously develop and expand. We have perfect quality assurance system, in the same industry in China, we took the lead through the ISO9001 international quality system certification. Our Products sell well in more than 20 provinces and cities nationwide, also in western Europe and other countries.
Richocean has strong technical strength, sophisticated production equipment, owning vehicles, milling, planing, boring and other machining equipment more than 100 sets, and there are two manufacturing bases in different city of China. Richocean also has domestic most advanced tungsten carbide corrugated manufacturing and repair center, large computer-controlled grinding machine corrugated stick, intermediate frequency quenching furnace, and large cylindrical grinder, etc. Full set of advanced production processing and testing equipment.
Richocean Industry focused on technological progress, product upgrading, gradually formed a corrugated board production line, single-sided machine, printing (slotting, die cutting) series, 50 varieties, more than 100 specifications of the product system, could meet different level user' S needs. In 1996 Richocean launched three, five, seven corrugated board production line, and obtained national patent products. We independently developed computer control automatic high speed printing, slotting, cutting machine with high speed, high accuracy etc technical advantages, gain global market' S acclaim and recognition.
Richocean Industry adhere to the "integrity-based, scientific and technological innovation", formed to the quality of survival, integrity and development, as customers for God' S business philosophy. We will adhere to scientific and technological progress, pay close attention to market, continuously developing new products to meet the new requirements of customers.
Qingdao Richocean Industry Co., Ltd all the staff will use frist-class products and sincere service, hand in hand all the friends develop together!
