Prod Model: |
Q11F |
Delivery: |
15days |
Payment: |
Tt or LC |
Load Port: |
Shanghai or Ningbo |
Main Market: |
North America,MID-East,Asia,Europe and Etcs |
Material: |
Stainless Steel |
Connection Form: |
Thread |
Channel: |
Straight Through Type |
Structure: |
Floating Ball Valve |
Type: |
Floating Ball Valve |
Application: |
Industrial Usage |
Nominal Pressure: |
3000wog |
Product Description

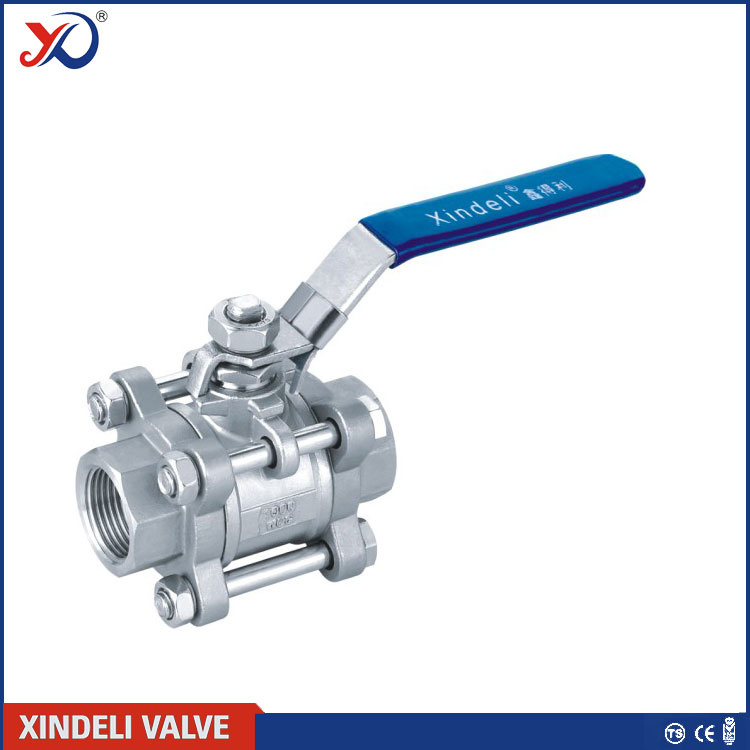

Description:3-Piece Stainless Steel Ball Valves
FULL PORT. 1000 WOG to 3000WOG
Thread End : BSPT, NPT, DIN259, DIN2999
Materials :ASTM A351-CF8M (DIN 1.4408) Stainless steel ASTM A351-CF8(DIN 1.4308) Stainless Steel ASTM A216-WCB(DIN 1.0619) Carbon Steel
SIZE : 1/4"-4" Full BORE
* High quality investment casting body caps.
* Bolted / in line easy maintenance
* Pressure temperature rating : 1000 PSI (PN 63) / 450 deg. F
* PTFE.15% reinforced glass fibrous Teflon seats, in-line repairable.
* Blow-out proof stem S/S 316, adjustable stem packing.
* 100% Tested air-under water at 100psi
* (6 Bars) open & close position
OPTIONS : * Padlocking Handle. Pneumatic Actuator or Electric Actuator.
* Mounting Bracket & Extension Shaft.
Main Parts and Materials
1 | CAP | CF8M/CF8/WCB | 8 | STEM | SS316/SS304SS |
2 | BOLT WASHER | SS304/SS/SS316 | 9 | THRUST WASHER | PTFE |
3 | HEX NUT | SS304/SS/SS316 | 10 | PACKING | PTFE |
4 | BOLT | SS304/SS/SS316 | 11 | GLAND | SS304/SS |
5 | BODY | CF8M/CF8/WCB | 12 | SPRING WASHER | SS304/SS |
6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
7 | BALL | SS316/SS304/SS | 15 | BLOCK ONLY RETREAT | SS |
Main DimensionsDN | G | D | L | W | H1 | H2 | E1 | E2 | Ra | Rb |
6 | 1/4" | 6 | 60 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
10 | 3/8" | 10 | 60 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
15 | 1/2" | 14 | 75 | 9 | 9 | 40 | R3 | R3 | 18 | 21 |
20 | 3/4" | 19 | 80 | 9 | 9 | 45 | R3 | R3 | 18 | 21 |
25 | 1" | 24 | 90 | 11 | 11 | 55 | R3 | R3.5 | 21 | 25 |
32 | 11/4" | 32 | 110 | 11 | 11 | 60 | R3 | R3.5 | 21 | 25 |
40 | 11/2" | 38 | 120 | 14 | 14 | 75 | R3.5 | R4.5 | 25 | 35 |
50 | 2" | 50 | 140 | 14 | 14 | 83 | R3.5 | R4.5 | 25 | 35 |
65 | 21/2" | 65 | 185 | 17 | 17 | 108 | R3.5 | R4.5 | 25 | 35 |
80 | 3" | 80 | 205 | 17 | 17 | 116 | R4.5 | R5.5 | 35 | 51 |
100 | 4" | 98 | 240 | 22 | 22 | 130 | R4.5 | R5.5 | 35 | 51 |
FAQ1 Are you a factory or trading company?We are a factory specialized in manufacturing valves and fitting over 15 years.
And we have got the verification of compliance for ball valve from ECM and ISO9001&CE certificate of
manufacturing and processing of valves and fittings.2 Where are the main markets for your products?We hope to make business with companies from all over the world. And for now, our valves and fittings have
been exported to especially in North America, South America, South Asia, Europe and Middle East.3 Do you have a minimum quantity of the products?No, we will build business with you with even 1pc. We believe this cooperation will be a long-term relationship for our high quality, competitive price and good after-sale service.4 Are samples available to be sent with free?It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.5 Can you print our Logo on the valves?Yes, we can totally produce products according to your special request, even manufacture it base on your drawing.6 What is your lead time?It's around 15 days normally. If we have the products in stock, it will be about one week.7 How can I check your factory situation while it's difficult for me to come to China?We have photos and videos on our website and facebook, It shows every step of the manufacturing.8 How can you guarantee the quality of products?Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified. Wenzhou Xindeli Valve Co.,Ltd
Add:Dushan Industrial Zone Longwan District Wenzhou City Zhejiang Province China
Mob:0086-13758463268
Tel:86-577-85983077
Fax:86-577-85986799
Website:www.xdl-valve.com

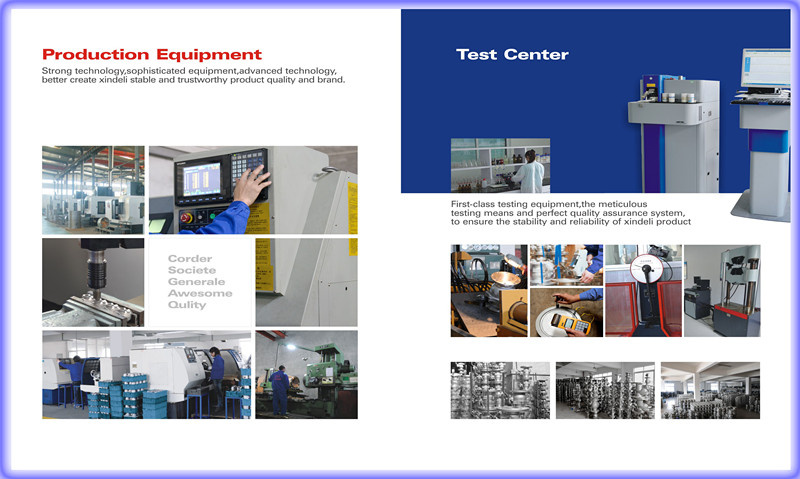

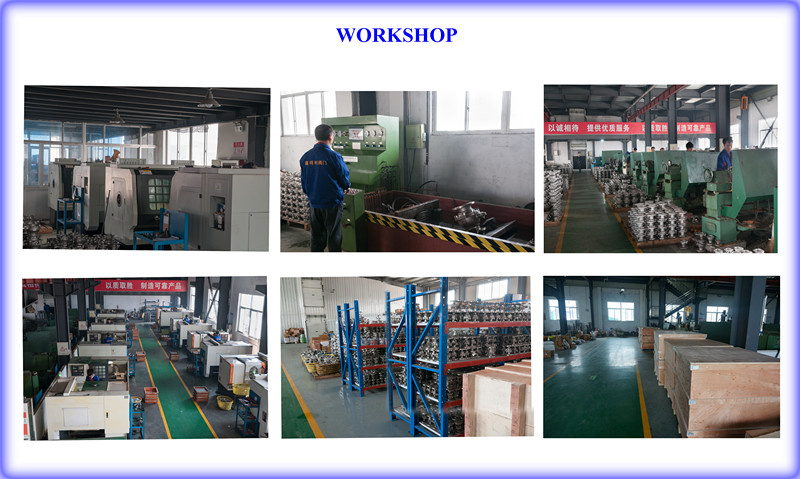

Wenzhou Xindeli Valves Co., Ltd, located in the Dushan Industrial Park, Longwan District, Wenzhou City (called as the hometown of valves in China), is a modern enterprise integrating research and development, design, manufacture and sales of stainless steel and carbon steel valves. The Company has great technical capabilities, and the new product research and development center, manufacturing workshop, warehousing and packaging center as well as the inspection and quality control center are set up in the plant area. Moreover, the internationally advanced professional production equipment and the inspection equipment (including the computer-based multi-element joint measurement analyzer, carbon-sulfur analyzer, metallographic analyzer, Leeb hardness tester and thickness gauge) and testing equipment (including the life testing machine and pressure testing machine) are also provided there.
The Company persists in improving the core competitiveness with the enterprise culture and developing the principles of integrity, innovation and customer service into the cultural essence of Xin De Li...Company has been the first to pass multiple certifications such as the ISO9001: 2000 international quality system certification, CE certification and HSE system certification. With our persevering pursuit, the manufactured products are endowed with excellent quality via the consistently improved production process. We conduct every step of the inspection and test as per the international quality management system. The main products provided by the Company cover ball valves, stop valves, check valves, filters, gate valves, butterfly valves and pipe fittings in female connection, male connection, snap-on connection, welded connection and flanged connection of manual, pneumatic and electronic devices. The products are widely applied to petroleum, chemical engineering, natural gas, light engineering, power, pharmacy, dye, metallurgy, fiber, leather, textile, food, military, construction engineering, refrigeration and water supply industries. Since the establishment of the Company, the products are popular among clients at home and abroad and exported to America as well as the countries and regions in Europe and South-east Asia. The quality assurance and after-sales service of the purchased Xindeli series products are well ensured by the reliable quality assurance system and trained staff.
We whole heartedly welcome the clients at home and abroad to pay a visit, and negotiate and cooperate with us. We can create the business opportunities together.
