| Prod Model: |
YUZHENG-Q11F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
1/4"-4" |
| Description: |

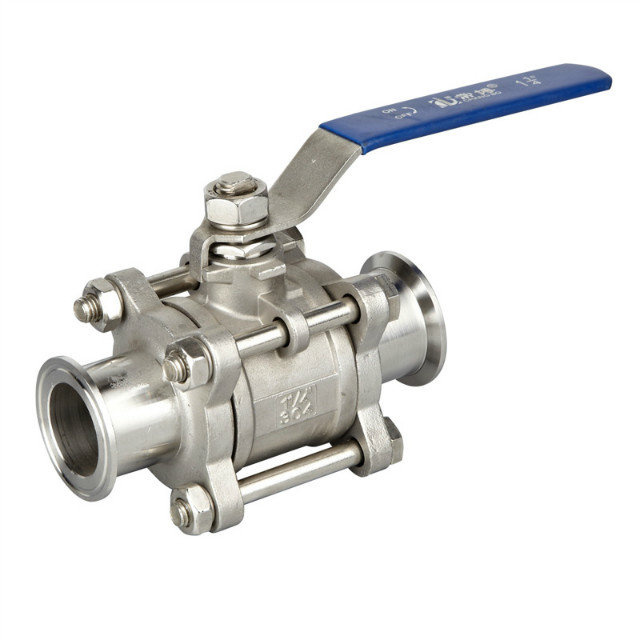

Clamp Ball Valve |
| Materials: |
Ss304/316 |
| Pressure: |
1000psi |
| Material: |
Stainless Steel |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Connection Form: |
Clamp |
Product Description
1) Material: Stainless steel 304 316 WCB
2) Size: 1/4"--- 4"
3) Working temperature: 0C ----150C
4) Working pressure: 1000PSI
5) Bore: Full bore
6) Connection type: FF( female thread end), SW (socket weld), BW(butt weld)
7) Optional BSP. BSPT. NPT. DIN2999
8) Suitable media: Water, oil, air and some corrosive liquids
9) The specifications can be designed and satisfied for customers
10) Mounting pad: ISO5211 standard
Special requirement
Any interest you, pls contact with us freely, looking forward to our coopetation!
| Product name | Ball Valve |
| 1)Material | SS201 SS304, 304L, 316, 316L |
| 2)Size | 1/4''-4''&DN6-DN100 |
| 3)Certificate | ISO9001: 2000,CE |
| 4)Working pressure | 1000psi(6.4MPa) |
| 5)Connection Ends | Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW). |
| 6)Suitable medium | Water, gas, air and some corrosive liquid |
| 7)Temperature Range | -20-300 degree C |
| 8)Investment | casting body and cap |
| 9)Sealing | PTFE, RPTFE, PPL |
| 10)stem | SS201,SS304,SS316 Adjustable stem packing, |
| 11)Locking | option |
| Our advantage | Survival by quality and development by credibility.
Quality first, customer upmost ! |
| | 100% leakage tested at 100 psi air under water |
| | Blow-out proof stem, ball are made of ss316 or customer request |
| | Pure Teflon seals and seats |
| | Can do OEM products |
| Shipment | |
| Delivery time | usual 20 days around and can negotiate as per order qty |
| Shipping port | Ningbo, Shanghai |
| Term of Payment | 30% TT deposit, the balance is paid before shipping the goods |
| Package detail | inner CTN, ourside ply-wooden case |
| MOQ | 10 PCS/size |
| Gurantee Period | 18 monthes |
| Capacity to produce | 100, 000 PCS/week |
FAQ
1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and fitting over 10 years.
And we have got the verification of compliance for ball valve from ECM and ISO9001 certificate of manufacturing and processing of valves and fittings.
2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.
3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1pc. We believe this cooperation will be a long-term relationship for our high quality, competitive price and good after-sale service.
4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.
5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your this kind special request, even manufacture it based on your drawing.
6 What is your lead time?
It's around 30 days normally. If we have the products in stock, it will be about 15days
7 How can I check your factory situation while it's difficult for me to come to China?
We have photos and videos on our website and face book, It shows every step of the manufacturing.
We also have a showroom in CA, USA. If you have time, you can take a look.
8 How can you guarantee the quality of products?
First of all, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
9 How long is the quality guarantee period?
We supply 6 to 12 months for quality guarantee according to customers' using frequency.
10 How do you pack?
1.Plastic bags→2.Paper box→3.Cartons→4.Plywood Case
WENZHOU YUZHENG VALVE Co., Ltd has been a manufacturer of Stainless Steel Ball Valves and Pipe Fittings since 1998. With the concept of "Customer First", we have achieved stable and fast development, we will keep on innovation and expand our business all over the world. It is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
The articles we produce including Stainless Ball Valve, Check Valve, Gate Valve, Strainer, Pipe Fittings and so on. All of them are ISO9001, CE approved. Yuzheng company also been inspected and approved by SGSThe standard of thread are, BSPP, BSPT, NPT, therefore our products can match the requirement of customers from different district. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. They are widely exported to Southeast of Asia, Middle East, Europe, South America and other areas.
Our strict production and professional sales team will be your guarantee during the cooperation, please don't hesitate to join us if you are specialized in the products.
