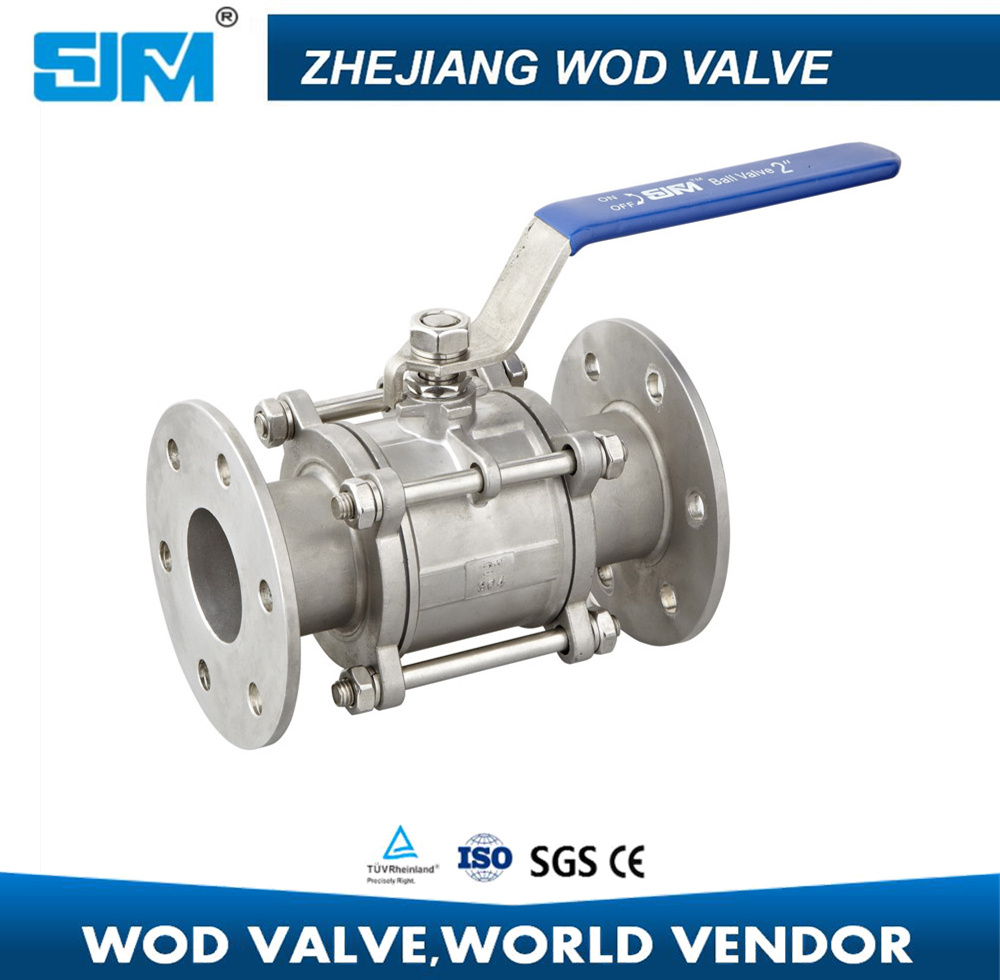

3PC Stainless Steel Flanged End Ball Valve
| Price: |
US $ 2.77-111.8/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Q41f |
| Connection: |
Flange |
| Size: |
1/4"--4" |
| Material: |
Stainless Steel |
| Connection Form: |
Flange |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
| Nominal Pressure: |
1000wog |
Product Description
| Product Name | 3PC Stainless steel Flanged End Ball Valve |
| Size | 1/4"-4" |
| Material | Body: SS304/SS316/SS201 |
| Ball/Stem:SS304,SS316,SS201 |
| Others:SS201 |
| Seal :PTFE/ RPTFE/ PPL |
| Pressure | 1000WOG/1000PSI,PN63 |
| Ball Type | 1/4" to 1" are solid ball,11/4" to 4" are empty ball |
| End Connection | Flanged |
| Working Temperature | -20-120 °C(PTFE),-40-180 °C (RPTFE),-150-300 °C (PPL) |
| Port | Full Port |
| Locking | Option |
| ISO5211 | Option |
| Inspection&Test | API 598 EN12266 |
| Design Standard | ASME B16.34 |
| Thread Standard | ASME B16.34 GB12224 |
| Certificate | CE&ISO9001,SGS,TUV |
| Packing Details | inner CTN, outside ply-wooden case |
| Shipping Port | Ningbo/Shanghai,China |
| Shipment Terms | FOB/CIF/CFR/EXW,ETC |
| Payment Terms | L/C |
| 30% TT deposit, the balance is paid before shipping the goods |
| Delivery Time | 30-45 days after received the deposipol |
Features
1)Investment casting body and cap
2)Working pressure 1/4"-1'' PN63,1/4''-2'' PN25, 21/2''-4'' PN16
3)Adjustable stem packing
4)Pure teflon seals and seats
5)Temperature range : -40 to 300 degree C
6)Blow-out proof stem
7)100% leakage tested at 100PSI air under water
8)Locking device (optional)
Zhejiang WOD Valve Co., Ltd. Was founded in 2008. WOD company is a diversified manufacturer. It deals with research, design, manufacture, sales, import and export autonomy, self customs clearance
It is located in China Valve City---Wenzhou Economic and Technological Development Zone, Zhejiang Province, it is about 5 minutes away from Yongqiang Airport, and half an hour from Wenzhou Train Station. Ningbo Port and Shanghai Port are very close to our factory.
WOD Company mainly produces medium and low pressure valves, Such as ball valve, gate valve, globe valve, check valve, strainer, cam lock coupling, manhole cover, water equipment etc. The material has ASTM 304, 316, WCB, etc. Products' standard including API6D, ASTM, MSS, ANSI, JIS, DIN, ISO, GB, etc. WOD series products are widely used in oil, gas, chemical, electric power, metallurgy, lifting, water supply, auto ship manufacturing oil-water road heating system control, food, pharmaceutical, daily chemical industry, municipal construction, mechanical equipment, etc.
WOD company has obtained CE, ISO9001 certifications, also been inspected and approved by SGS, TUV
Our production spirit and service concept is "Innovation, Serves attentively ". Welcoming customers from all over the world come to visit WOD company and attend technical exchange
