| Prod Model: |
PQ11F-1000PSI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Connection Form: |
Thread |
| Channel: |
Straight Through Type |
| Structure: |
Floating Ball Valve |
| Type: |
Floating Ball Valve |
| Application: |
Household Usage |
Product Description

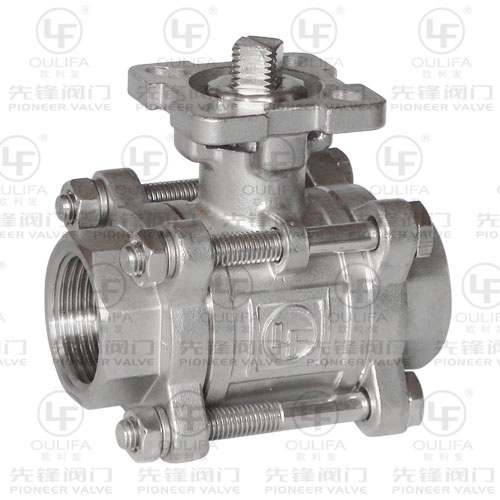

Using ISO5211 standard platform design, without connecting bracket and sleeve, so that the actuator becomes simple.
Leak-proof stem design
1. The use of anti-blow out stem design.
2. The first stage sealed, tapered stem seals effectively prevent stem rotation in the process of media leaks, and unusual boost in the state, also effective to prevent leakage.
3. The second stage seal, a combination of V-shaped packing is compressed in the expansion to either side, thus preventing leakage.
4. Release the preload of disc spring, automatic fill packing and stem seal wear.
5. The use of stem nut compress all of the stem seal system, to prevent leakage.
6. Only the back pad fixed stem nut to prevent its release.
Manual locking design
Switch must be kept locked in the position of the valve to prevent the existing risk of accidental misuse. Platform and the handle with a ball lock, padlock will be used in the closed position or open valve position lock.
WENZHOU PIONEER VALVE is a technology innovation-based valve manufacture since 1993. Have Wafer Type Ball Valve enterprise standard. "OULIFA" and "PIONEER" are registered trademarks for domestic and export trading.
After 20 years development, we accumulated technical experience and developed our own ERP business management software, to achieve enterprise-wide process information management and also passed the ISO 9001: 2008 quality management system certificate, CE 97/23/EC certificate and the TS certificate (manufacture License of the special equipment, pressure piping components).
Main Products:

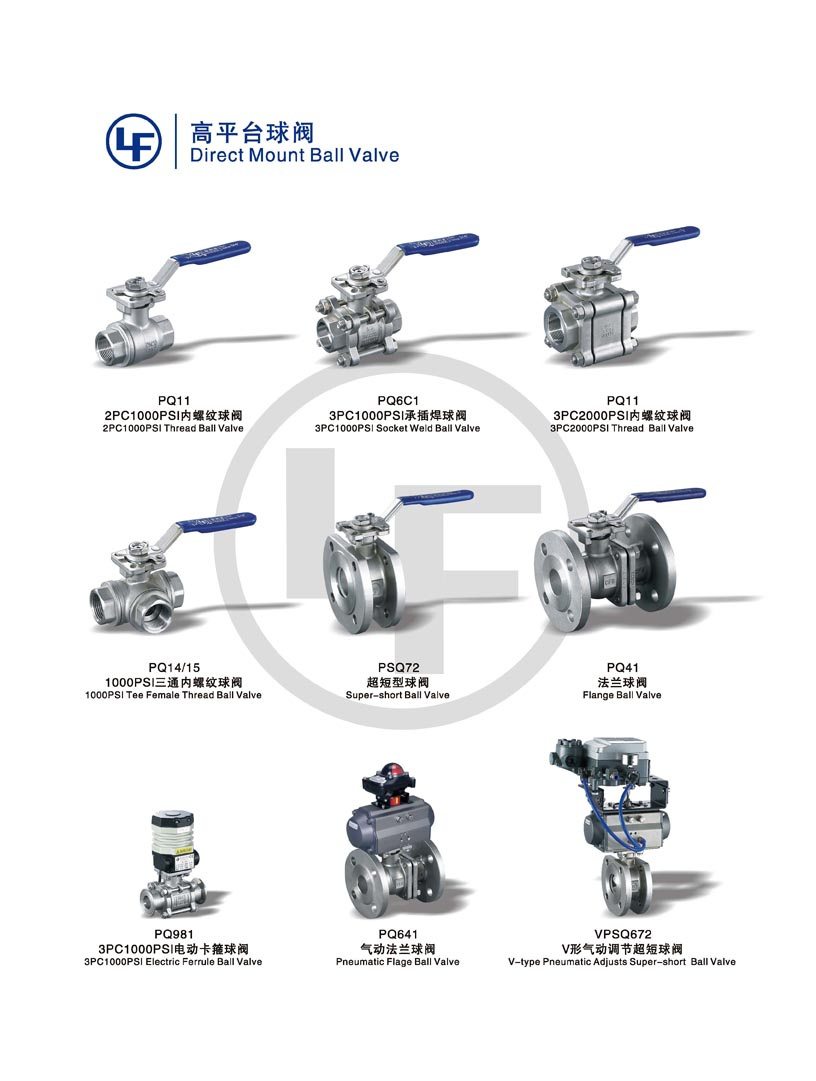

Wafer type ball valve (Thin type flanged ball valve), flush tank bottom ball valve, jacketed ball valve, 3-Way ball valve, direct mounting high platform ball valve, V-port segment ball valve, sanitary ball valve, and a number of pressure valves like check valve, globe valve, gate valve etc.
Vacuum range like vacuum angle valve, vacuum ball valve, vacuum butterfly valve, vacuum gas charging valve, electromagnetic vacuum valve, vacuum gate valve, vacuum baffle valve, vacuum metering valve etc.
"Quality as the pioneer, service as the backup force" is our business concept. With highly capacities of developing, design and manufacturing, we ensure to provide high quality products and also do OEM which meet your requirements are welcome. We sincerely hope to establish long-term partnership with old and new customers in the future.
