| Prod Model: |
SJYZ0.3-6 |
| Color: |
Red/Yellow |
| Voltage: |
110V/220V/240V |
| Load Capacity: |
300kg |
| Lifting Height: |
6m |
| Working Height: |
8m |
| Grade Ability: |
10% |
| Platform Size: |
2270*1120mm |
| Overall Size: |
2480*1150*1500mm |
| Weight: |
1850kg |
| Extend Platform: |
900mm |
| Application: |
Building Crane |
| Carrying Capacity: |
Light Level |
| Driven Type: |
DC |
| Running Mode: |
Moving |
| Feature: |
Explosion-Proof |
Product Description
4-14m 2018 new design mini hydraulic battery power electric scissor lift table platform with low cost
Product Description:1.Products advantagesSelf propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
2.Moving methodThe chargeable battery provides the power to move and steer around.
3. Lifting PowerThe chargeable battery provides the power to raise up the lift platforms.
Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.
4. Applications It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline

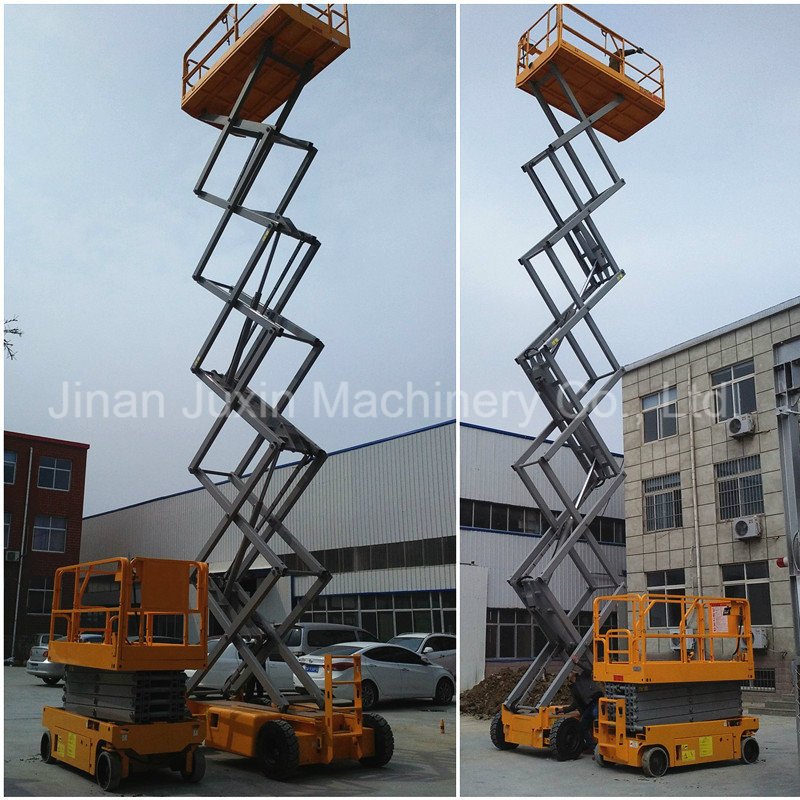

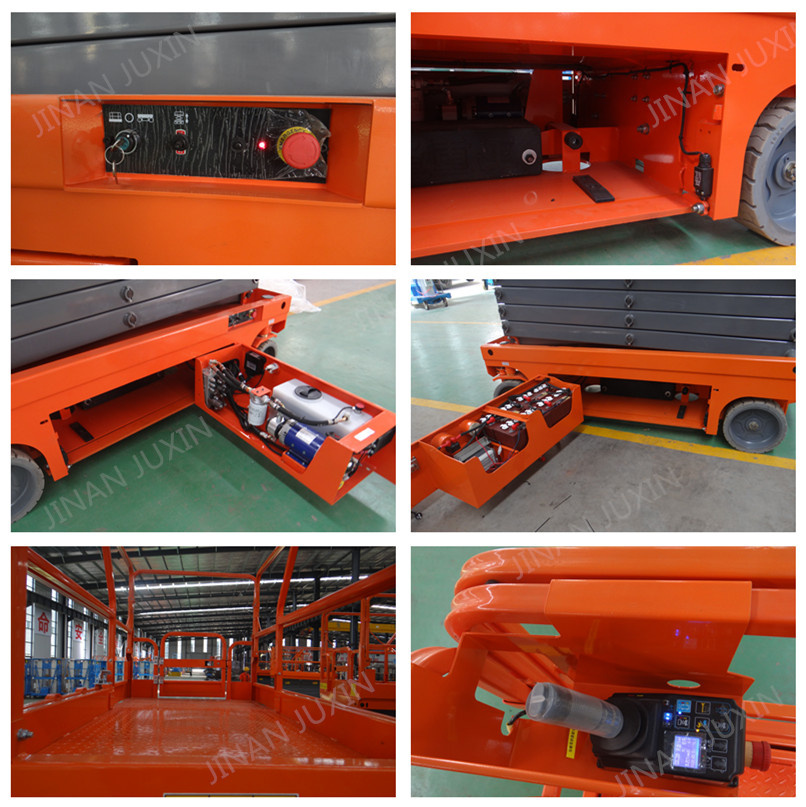

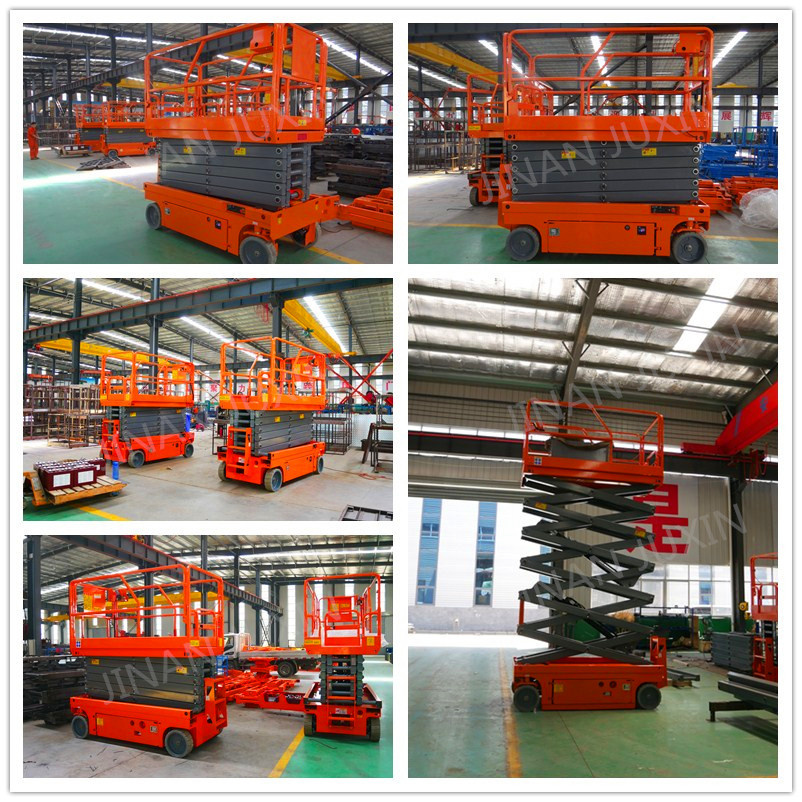

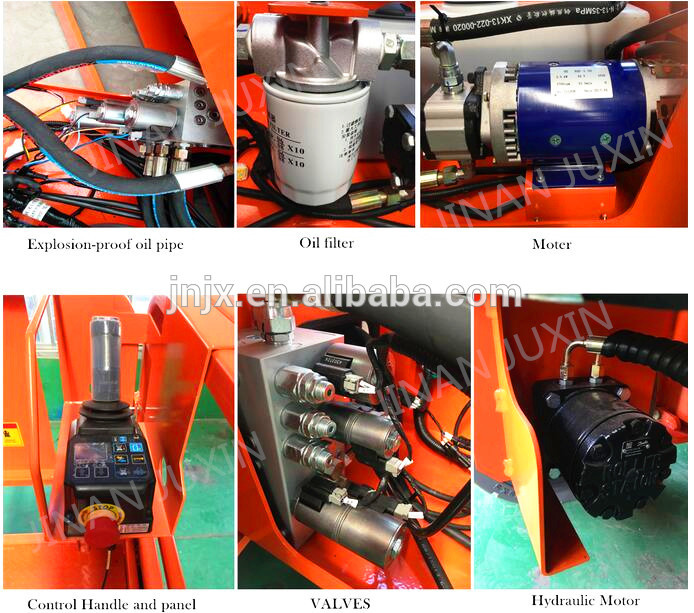

Detailed images:
Main parameters:| Model | SJYZ06 | SJYZ08 | SJYZ10 | SJYZ12 |
| Working Height | 8m | 10m | 12m | 14m |
| Platform Height | 6m | 8m | 10m | 12m |
| Platform Size | 2.27x1.12m | 2.27x1.12m | 2.27x1.12m | 2.27x1.12m |
| Lift Capacity | 300kg | 300kg | 300kg | 300kg |
| Weight | 1850kg | 2250kg | 2500kg | 2800kg |
Overall Dimension
(L*W*H) | 2.48x1.15x2.18m | 2.48x1.15x2.34m | 2.48x1.15x2.48m | 2.48x1.15x2.59m |
| Lift-Up | 30s | 37s | 45s | 50s |
| Lift-Down | 30s | 32s | 35s | 38s |
| Gradeability | 25% | 25% | 25% | 25% |
| Maximum Tilt | 3° | 3° | 3° | 3° |
| Battery | 4x6V | 4x6V | 4x6V | 4x6V |
Main features:Product
presentation | Small scissor lift is widely used to workshop building site, hotel, airport, station, dock and so on.
Mainly used to installing, repairing and cleaning high aerial equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving working efficiency and making aerial working, more convenient and quick. |
Security
assurance
| 1. Control voltage is DC24V.Keeping working person safe.
2. Electrical control box is water-proof design. |
3. Installing Emergency button,Can keeping working person safe.
4. Self-locking function will work when electricity is suddenly cut off. |
5. System have Emergency drop valve,which can let platform down safely.
when electricity is suddenly cut off.
6. Four hydraulic supporting legs in button.which can keep machine stable. |
Main
features | This type scissor lift own automatic walking function.It can be used in different working condition,and do not need external power supply and artificial traction.It is mobile flexible, convenient operation, lift freely, only one people can finish forward, backward, steering, fast and slow walk. It's easily moved with high working efficiency.This type scissor lift can be move while extended and controlled from platform by the operator.It is walking,reversing, turning and lifting can be achieved on the platform board, self-movement at a the full height.Low noise allows the operation personnel work in a silent environment and the large-angle steering system provides a good maneuverability. |
Certification:

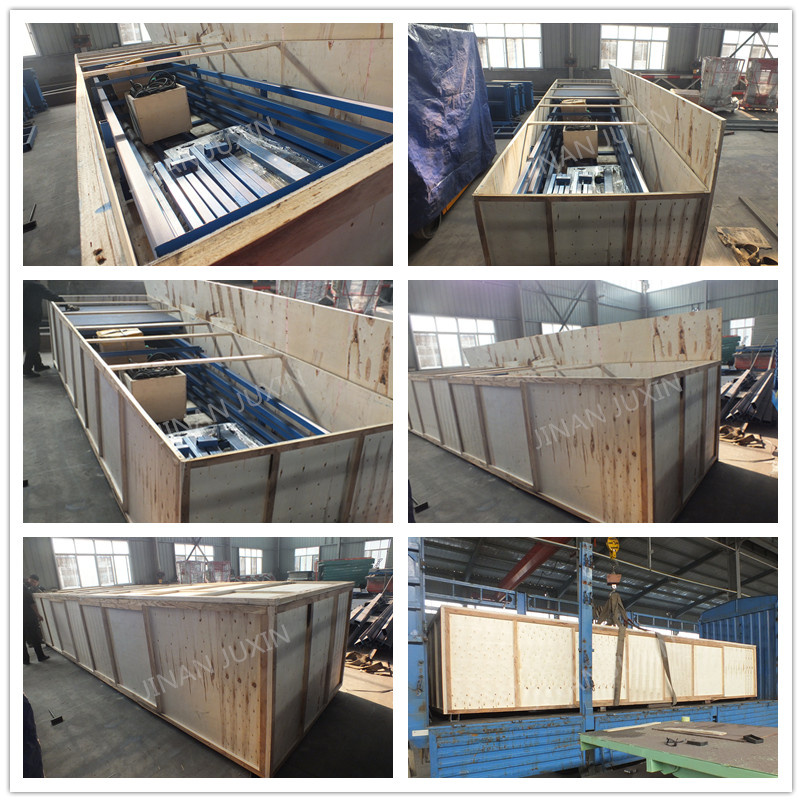

Shipping & Packing:
Our Services:1.Good service
We assure you reply the email within 12 hours.
We assure you 24 months quality warranty time.
During the warranty period we guarantee to supply free replacement parts to any defective of our product
2.Keeping innovations
We welcome every recommendation and opinion from you and make progress together with you.
We can design a new machine as your requirements,until to your satisfaction.
Founded in 2007. Jinan Juxin machinery Co., Ltd. Specializes in manufacturing hydraulic scissor lift platform. A comprehensive hydraulic equipment enterprise who has the ability to design, develop, manufacture, market and export, our major products include Hydraulic scissor lift & platform, Aluminium alloy lift platform, aerial working equipment, material handing equipment and etc. With the strict management over years, we are become one of the leading hydraulic equipment production enterprise.
Nowadays, we have more than 200 employees that has engaged in this field over several years, among which about 20 are professional technicians. With the advanced management methods, strict quality control systems and a good after-sales service team, all its products conform to the state and industry standards and have passed the testing of the state testing station for special equipment. Our company has passed ISO9001-2000 quality system certification and the quality and performance of our products have won acceptance, all its products are not only sold well at home, but also exported to 50 countries around the world, mainly in Europe, USA, middle-east, south-east Asia and south-Africa. We can design and manufacture according to buyer's requirements & OEM is welcome.
"Quality first, the customer is supreme, the good faith for this" is the management idea of our company. No matter where you, can feel our professional technology personnel excellent service. We welcome friends from any sectors to give supervision and guidance to our products.
