| Prod Model: |
HHB-BS6500 |
| Model: |
Hhb--BS6500 |
| Bits: |
#5 |
| Power Type: |
Alternating Current Power Supply |
| Total Length: |
227mm |
| Weight(Kg): |
0.5kg |
| Rated Speed: |
700-1000rpm |
| Place Of Origin: |
Shenzhen China |
| Torque Range: |
20 Kgf.Cm; 2.0n.M |
| Input Voltage: |
220V |
| Rotation: |
Double |
| Type: |
Precision Screwdriver |
| Screw Head Type: |
Phillips |
| Structure: |
Straight Type |
| Brand: |
Hhb |
| Handle Color: |
Blue |
Product Description
(0.4-2.0N.m) Full Automatic Brushless Electric Screwdriver for Fastening&RepairingModel:. HHB-BS6500Spec.| Model | Torque range | No Load speed(rpm)±10% | Screw bits applied | Screw Applied(mm) |
| Level start type | (Kgf.cm) | (N.m) | Machine screw | Tapping screw |
| HHB-BS2000 | 0.3-2.0 | 0.03-0.2 | 700-1000 | #4 | 1.0-2.2 | 1.0-2.0 |
| HHB-BS3000 | 0.5-5.0 | 0.05-0.5 | 700-1000 | #4 | 1.0-2.6 | 1.0-2.3 |
| HHB-BS4000 | 1.0-12 | 0.1-1.2 | 700-1000 | #4/#5 | 1.4-3.0 | 1.4-2.5 |
| HHB-BS6000 | 2.0-16 | 0.2-1.6 | 700-1000 | #5/S1/4 | 2.0-3.5 | 2.0-3.0 |
| HHB-BS6500 | 4.0-20 | 0.4-2.0 | 700-1000 | #5/S1/4 | 2.0-4.0 | 2.0-3.5 |
| HHB-BS6800 | 5.0-25 | 0.49-2.5 | 700-1000 | #5/S1/4 | 2.0-4.5 | 2.0-4.0 |
Features:1.High-performance low-voltage brushless motor is used and produces no dust, low noise and durability.
2. Torque output of brushless motor will be more stable, suitable for high-precision industries and 5C industries.
3.Ergonomic size ,high temperature durable, weak vibration , good grip, new appearance, light weight easy to operate for a long time without fatigue, improve efficiency.
4.High precision of the torque , with step-less torque adjustment, simple operation, it can be generally used for electrical and electronic lightening products.
5.Uphold Taiwan sophisticated manufacturing technology, presenting sophisticated industrial screw fastening tools.
Application in:
Electric products. Home appliance hardware, daily provisions, etc

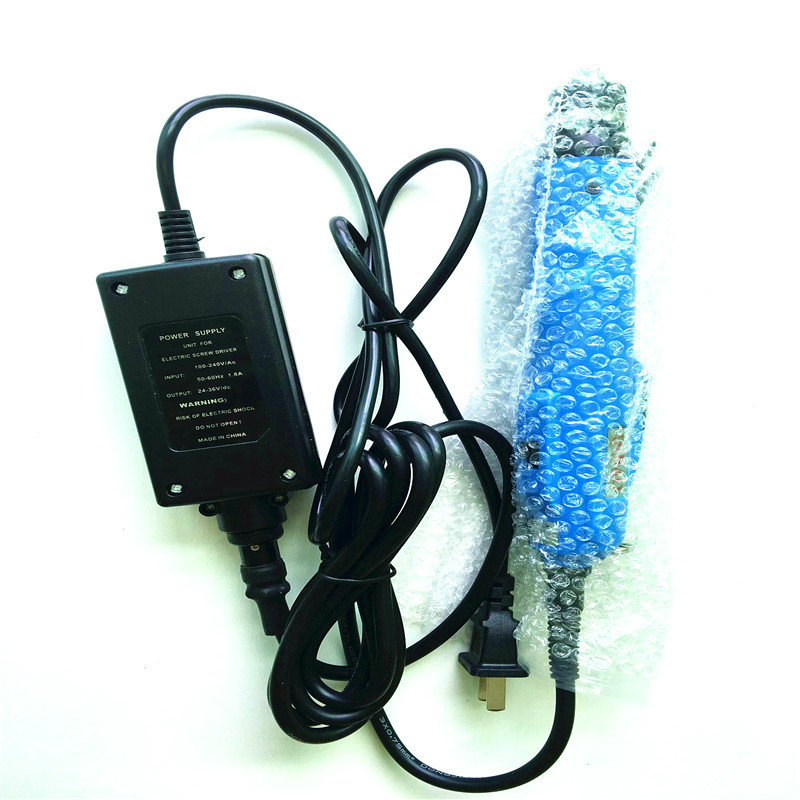

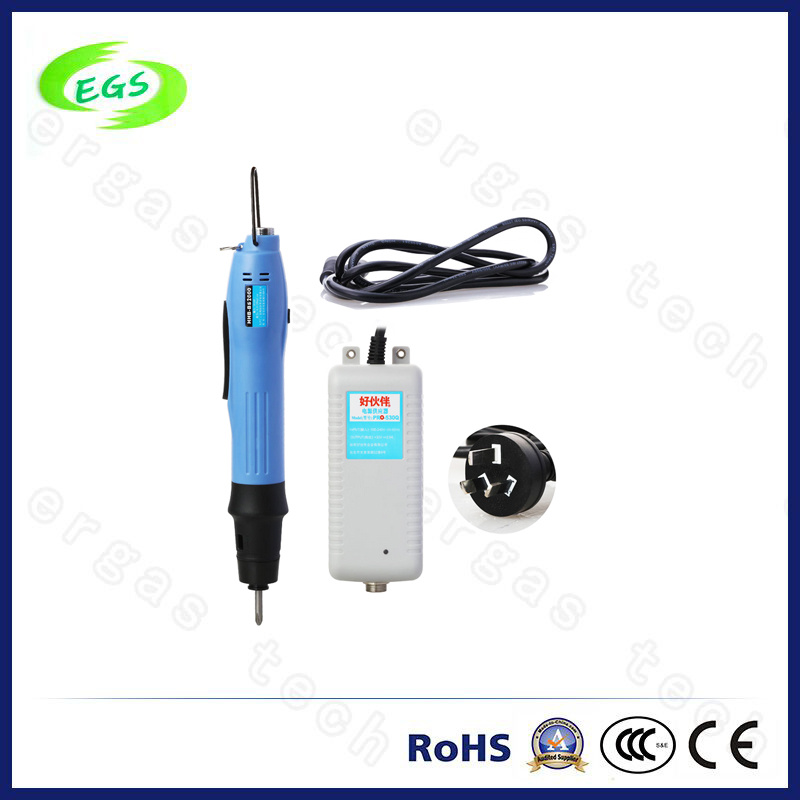

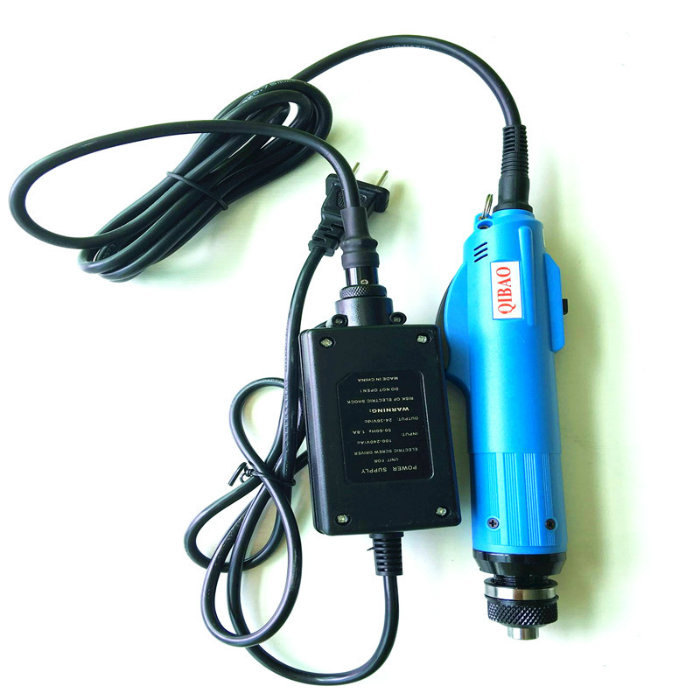

Product photos
Operation Method:
1, 6 turning on the power supply (note with power small 2 line socket is cathode consistent)
2, press 4 the machine can work, let go of that stop
3, the reversing switch 5 push up for inversion, push down for the forward
4, 1 according to the need to change cutter bar, the tool bit pressure into the lock set of 2, can be smoothly under the dip and plug in tool rod
5, torque control set of 3 according to clockwise torque increase, whereas decreased
6 set, automatic stop, adjust the torque control set of 3 at a desired location, can through the test and to determine the required position, such as large output torque, to counterclockwise rotation, the back of the opposite to the clockwise rotation
7, in the work if you want to change the direction of rotation of the cutting tools must let go of compressive bar 4, positive &negative switches 5 again
8, the suspension loop for hanging
