| Prod Model: |
HHB-BS6500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Hhb-BS6500 |
| Bits: |
#5 |
| Weight: |
0.5kg |
| Power Type: |
Alternating Current Power Supply |
| Total Length: |

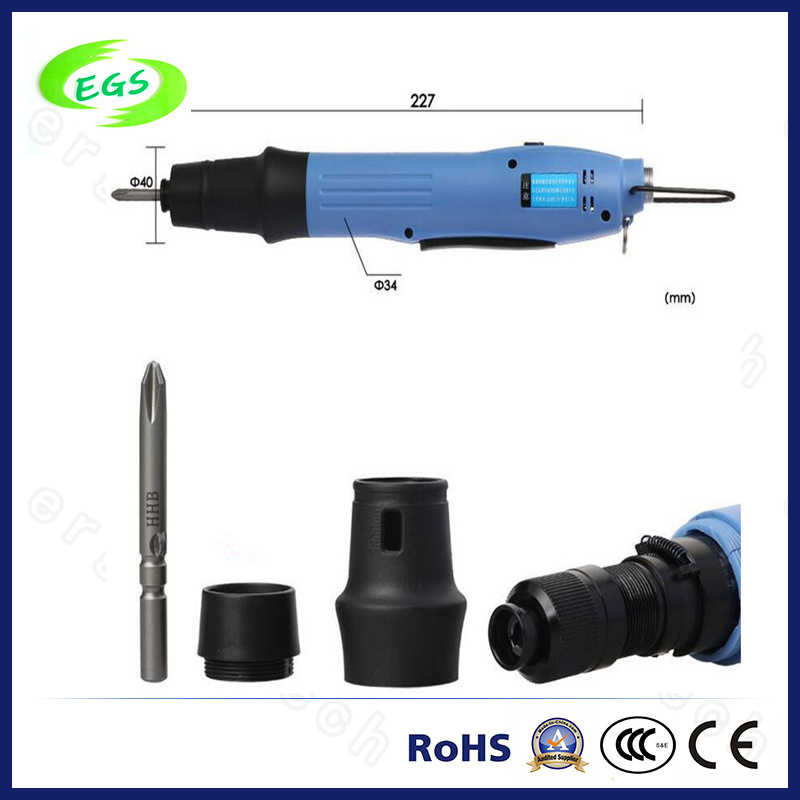

227mm |
| Rated Speed: |
700-1000rpm |
| Input Voltage: |
220V |
| Place Of Origin: |
Shenzhen China |
| The Highest Torque Meter: |
20 Kgf.Cm; 2.0n.M |
| Application To The Power Supply: |
PRO-630q |
| Type: |
Precision Screwdriver |
| Screw Head Type: |
Phillips |
| Structure: |
Straight Type |
| Brand: |
Hhb |
Product Description

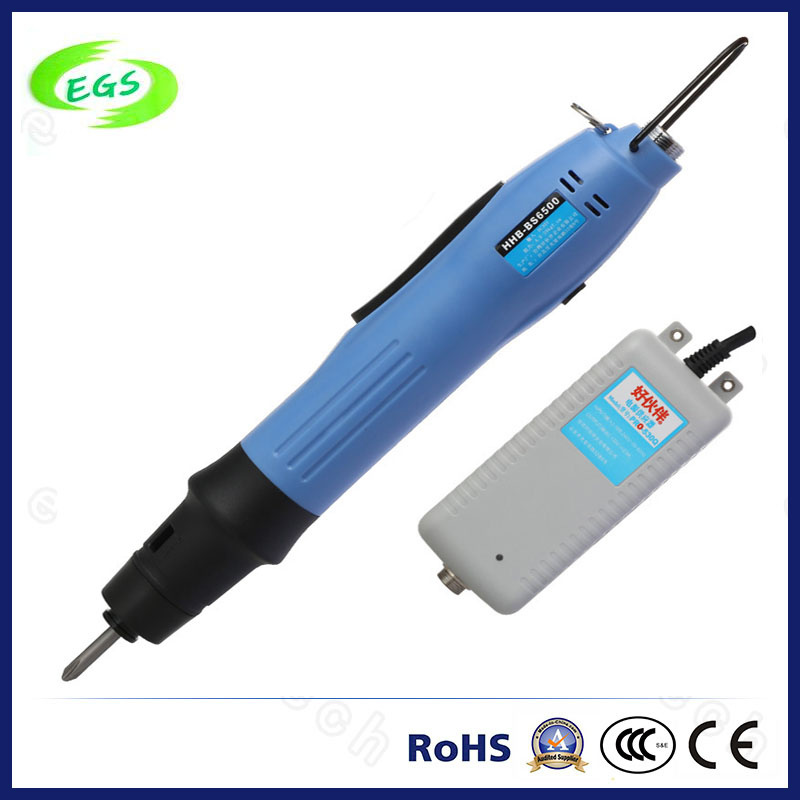

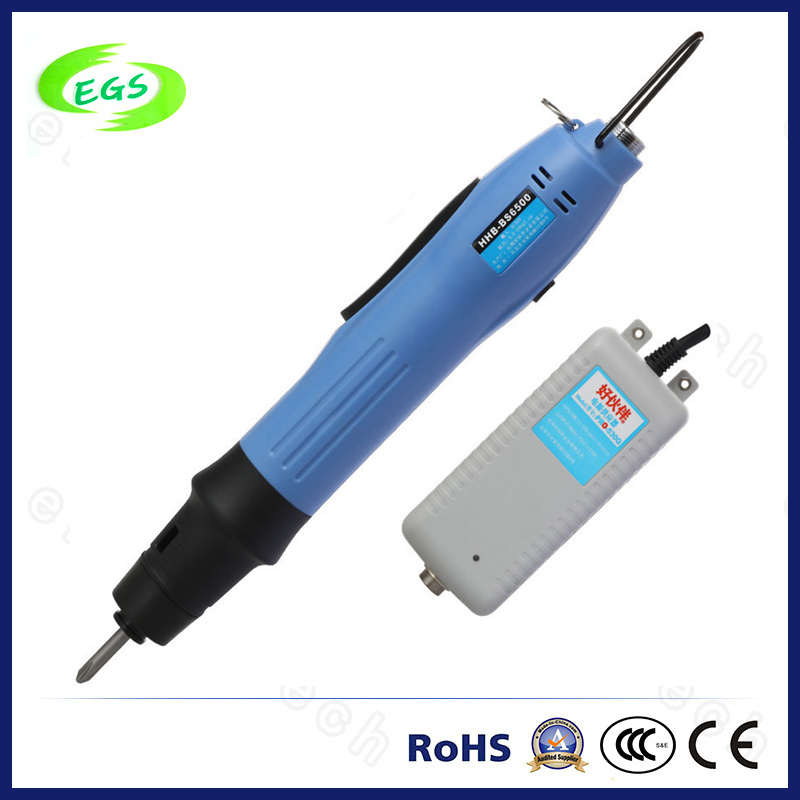

0.4-2.0 N.m Brushless Full Automatic Electric Precision Screwdriver with Straight Type (HHB-BS6500)Model:. HHB-BS6500Spec.| Model | Torque range | No Load speed(rpm)±10% | Screw bits applied | Screw Applied(mm) |
| Level start type | (Kgf.cm) | (N.m) | Machine screw | Tapping screw |
| HHB-BS2000 | 0.3-2.0 | 0.03-0.2 | 700-1000 | #4 | 1.0-2.2 | 1.0-2.0 |
| HHB-BS3000 | 0.5-5.0 | 0.05-0.5 | 700-1000 | #4 | 1.0-2.6 | 1.0-2.3 |
| HHB-BS4000 | 1.0-12 | 0.1-1.2 | 700-1000 | #4/#5 | 1.4-3.0 | 1.4-2.5 |
| HHB-BS6000 | 2.0-16 | 0.2-1.6 | 700-1000 | #5/S1/4 | 2.0-3.5 | 2.0-3.0 |
| HHB-BS6500 | 4.0-20 | 0.4-2.0 | 700-1000 | #5/S1/4 | 2.0-4.0 | 2.0-3.5 |
| HHB-BS6800 | 5.0-25 | 0.49-2.5 | 700-1000 | #5/S1/4 | 2.0-4.5 | 2.0-4.0 |
Features:1.High-performance low-voltage brushless motor is used and produces no dust, low noise and durability.
2. Torque output of brushless motor will be more stable, suitable for high-precision industries and 5C industries.
3.Ergonomic size ,high temperature durable, weak vibration , good grip, new appearance, light weight easy to operate for a long time without fatigue, improve efficiency.
4.High precision of the torque , with step-less torque adjustment, simple operation, it can be generally used for electrical and electronic lightening products.
5.Uphold Taiwan sophisticated manufacturing technology, presenting sophisticated industrial screw fastening tools.
Application in:
Electric products. home appliance hardware, daily provisions, etc
Product photos
