| Prod Model: |
LD043H10-40NC-A1 |
| Contrast Ratio: |
350:1 |
| Electrical Interface(Data): |
8-Bits Serial/24-Bits Parallel RGB |
| Luminance: |
450CD/M² |
| Active Area: |
95.04×53.86mm |
| Viewingangle: |
70/70/50/70(Typ.)(Cr≧10) |
| Application: |
Taxi |
| Aspect Ratio: |
4:3 |
| Feature: |
Support TV Function |
| Type: |
TFT |
| Response Time: |
30ms |
| Screen Size: |
4.3inch |
| Optimum Resolution: |
480(RGB) × 272 |
| Interface Type: |
RGB |

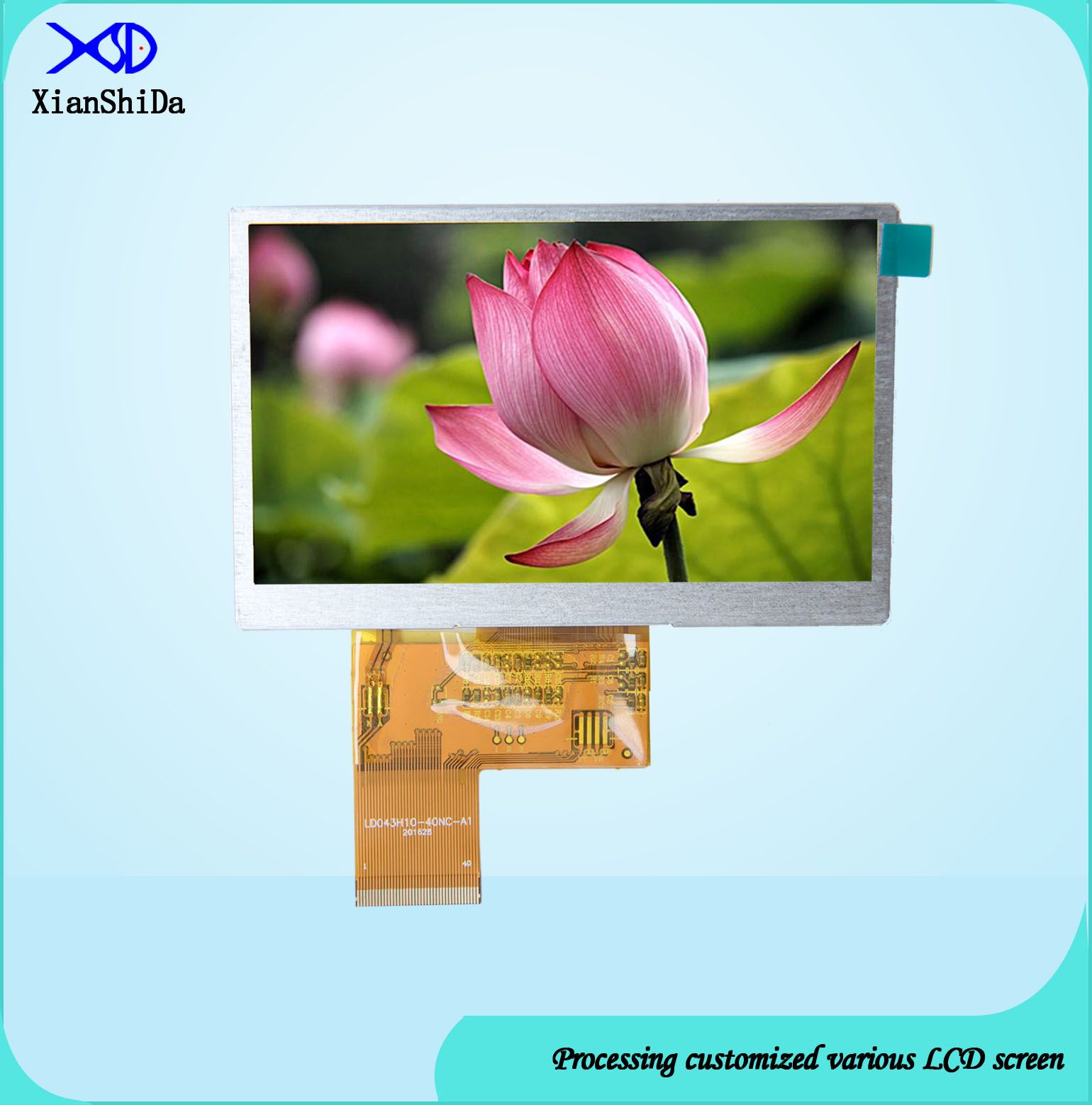

Product Description
| Item | Specifications | Unit |
| LCD Type | TFT | |
| Display Color | 262K | |
| Dimensional outline | 105.4(W) ×67.1(H)×2.9 (T) | mm |
| Active area | 95.04(W) ×53.86 (H) | mm |
| Luminance for LCM | 450 | cd/m2 |
| Pixel size | 0.198(W) ×0.198(H) | mm |
| Resolution | 480(RGB) × 272 | pixel |
| View direction | 6 o'clock | |
| Gray Scale Inversion Direction | 12 o'clock | |
| Driver IC | OTA5180A | |
| Operation temperature range | -20~+70 | ºC |
| Storage temperature range | -30~+80 | ºC |
| Power Supply Voltage | 3.3 | V |

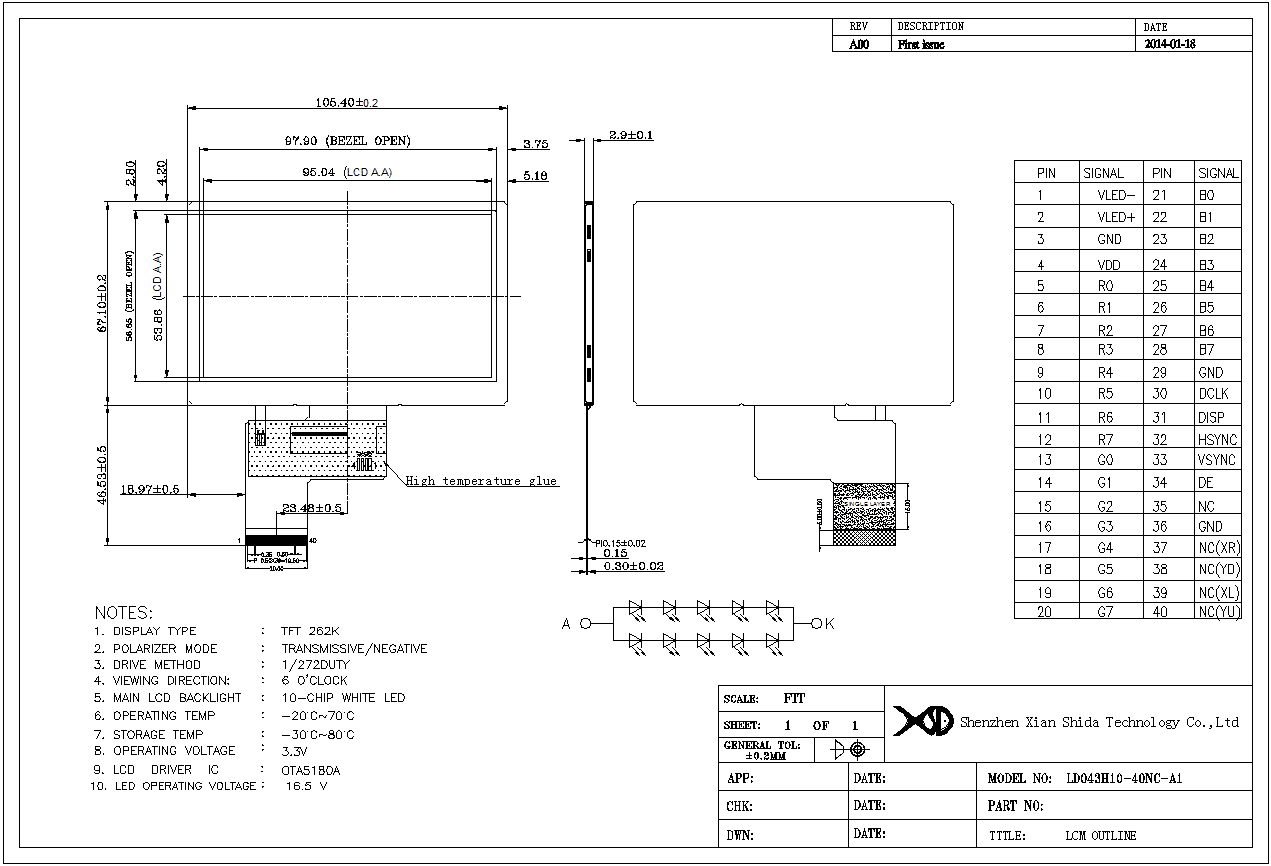

| Outine Dimensions | Refer to outline drawing | |
| Interface | 24bit RGB interface | |
| Backlight | LED | |
| Backlight Forward Voltage | 16.5 | V |
| Backlight Electric current | 40 | mA |
Our factories can customize various technical specifications of LCD Screen:HD, High Brightness , wide visual Angle, Super wide temperature and so on
