4.5 Inch DTH Hammer and DTH Bit for Sale

Prod Model:	4.5
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Machine Type:	Drilling Tool
Model Number:	Gl330, Gl335, Gl340A, Gl345, Gl350, Gl355 ,Gl360,
Drilling Diameter:	82-508m
Length:	867-1934mm
Weight:	19-642kg
Processing Type:	Forging
Working Pressure:	0.8-2.1 MPa
Air Consumption:	3-45

Product Description

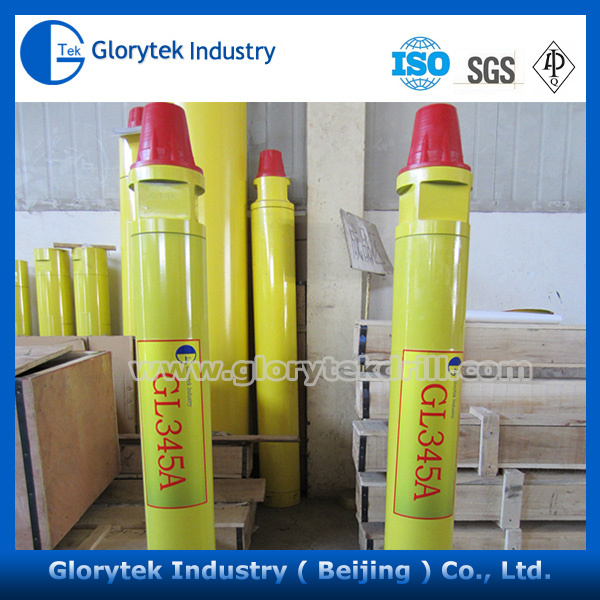

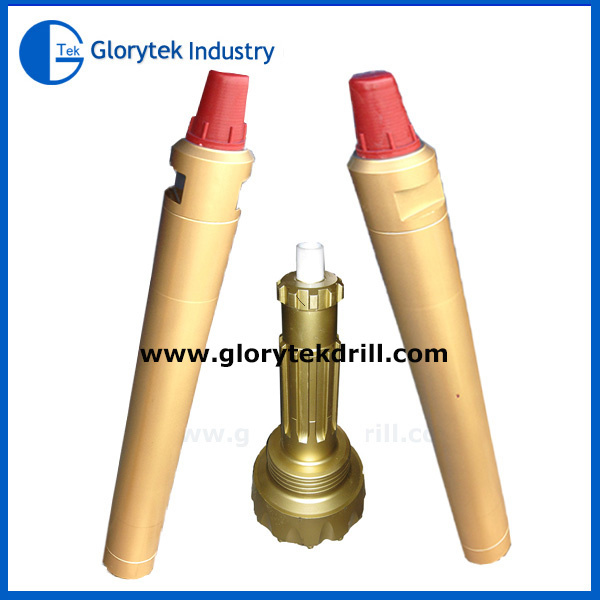

4.5 inch DTH hammer and DTH bit for sale

Description

Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc.
They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high
abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.


Our hammer and bits are made of high quality alloy steel with advanced heat threatment to assure the good drilling performance and long service life. They are widely used by our customers all over the world.

Advantage

1. Durable impact parts
2. High speed , most stable performance
3. Efficient energy transfer
4. Long life



Main Features

 1) DTH hammers series we supply
 A) High pressure series
 B) Medium pressure series
 C) Low pressure series
 D) High efficiency high pressure series
 E) Reverse circulation series

 2)Outside diameters: 61.2~275mm
 3)Drilling diameter: 68~508mm


 Application

 1. mine and quarry
 2. road construction for the drilling and blasting work
 3. water well drilling
 4. slope protection





----Type and Technical Specification of High Pressure DTH Hammers
Item	GL330	GL335	GL340A		GL345	GL350		GL355	GL360		GL380	GL3120
Drilling Dia. ( Φ/mm)	82-85	90-93	105-130		105-130	130-152		130-152	152-305		203-350	302-508
Hammer Length(mm)	867	908	1052		1034	1387		1220	1450		1551	1934
Outside Dia. ( Φ /mm)	71	81	92		98	114		124	136		181	275
Weight(kg)	19	21.8	38		39	69		74	126		277	642
Working Pressure(Mpa)	0.8-2.1	0.8-2.1	0.8-2.1		0.8-2.1	0.8-2.1		0.8-2.1	0.8-2.1		0.8-2.1	0.8-2.1
Air Consumption (M3/Min.)	3-12	4.3-14.2	3.5-18		3.5-15	5.7-18		6.5-18	8.5-25		12-31	14-45
Torque(N.M)	150	205	304		335	590		700	822		1560	2410
Impact Frequency (Times/Min.)	≥800	950-1500	≥800		≥800	810-1470		810-1500	820-1475		860-1510	980-1446
Connection 1	48.8×4.2	API 2-3/8	API 2-3/8		API 2-3/8	API 3-1/2		API 2-3/8	API 3-1/2		API 4-1/2	API 6-5/8
Connection 2	Φ47-6	Φ53-8	Φ64-8		Φ64-8	Φ84-8		Φ84-8	Φ99.5-8		Φ128-10	Φ184-8



Our Services
Delivery Time: Based on order quantity, normally it takes 30 days for production.Only 2 or 3 days if we have stock on your request size.
Quality Control: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
After Services: Technical Support will be available in any time. We could provide the professional suggestion for you.
EX: 1.Select the right most suitable products.
       2. According to the rock types, choosing the face type, button tooth type.
       3. According to the different purpose,. choosing the different body type



Our Company

Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
