4 Column Hydraulic Power Source Automatic Stamping Press Machine

Prod Model:	Y32
Customized:	Yes
Controlling Mode:	Artificial
Automatic Grade:	Semiautomatic
Power Source:	Hydraulic Pressure
Precision:	High Precision
Type:	Hydraulic Press

Product Description

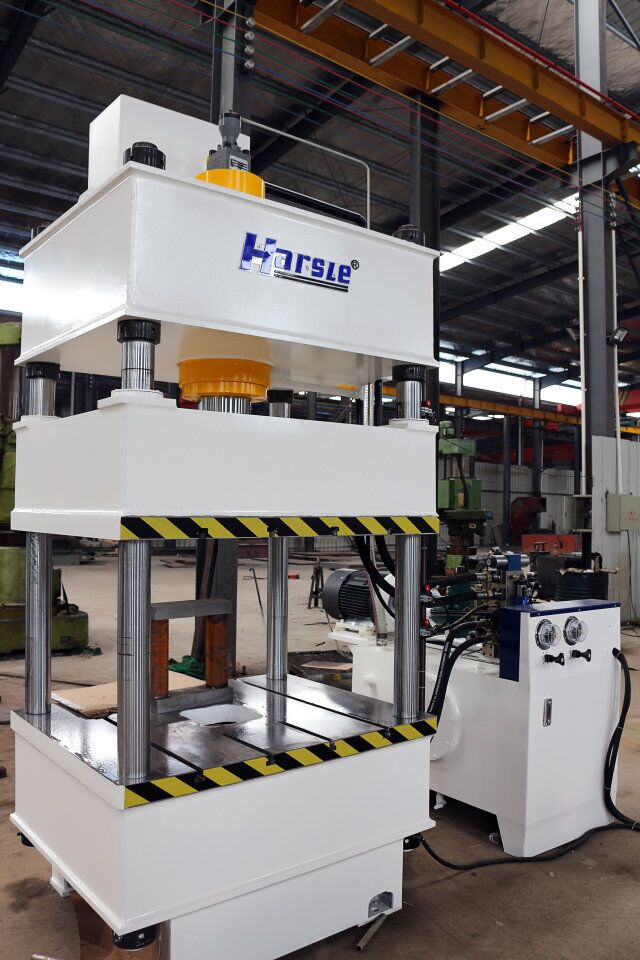

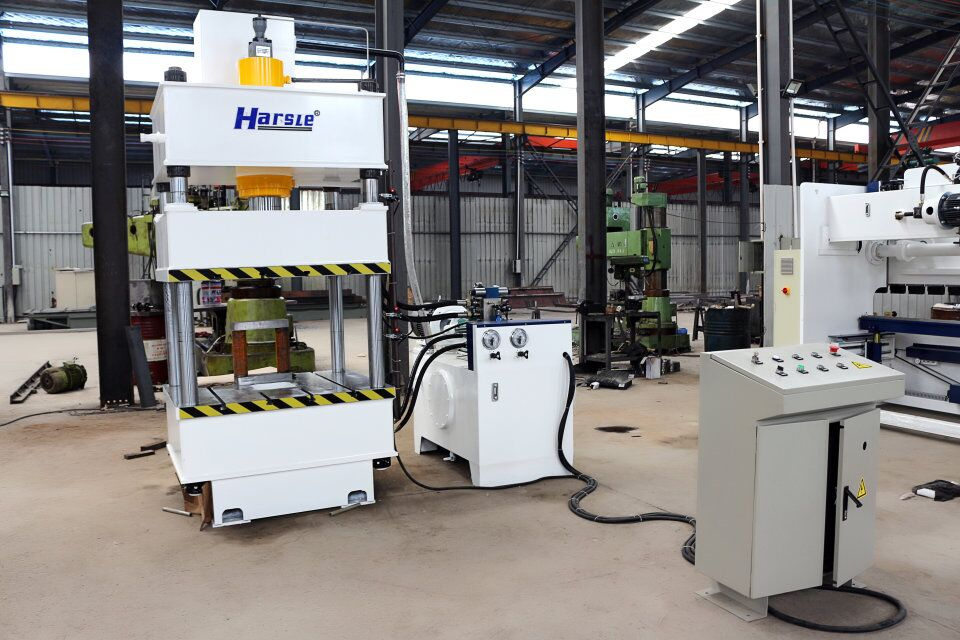

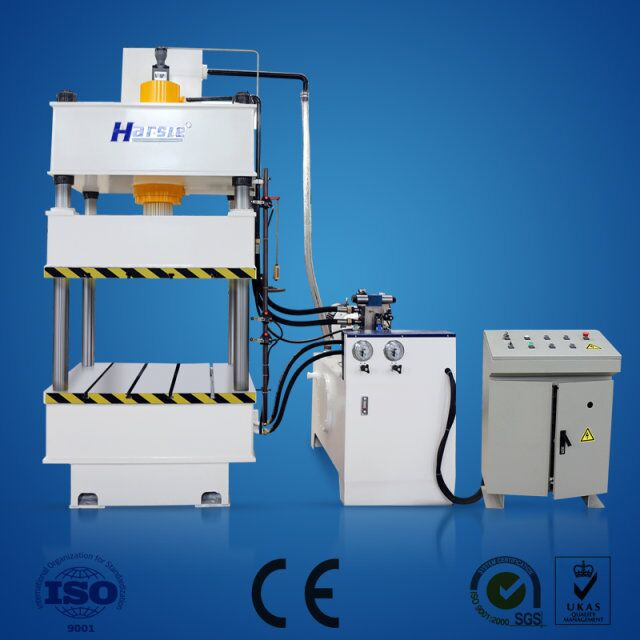

4 column hydraulic press machine




Application:
1.This machine is suitable for various kinds of pressing technology of plasticity material, such as punching, bending, flanging, sheet metal drawing, besides, the machine can also engage in calibration, pressure equipment, wheel molding, plastic products and powder metallurgy press molding process. This machine has the power mechanism of independent and electrical system, and uses the centralized control buttons, can realize the adjustment (point)and work (semi-automatic) two kinds of mode of operation.
2.The machine's working pressure, the travel range can be adjusted according to the process needs. And the constant pressure to complete the molding and constant distance froming two kinds of process requirements, with automatic return action after pressing.

Features:
1. Computer optimized design, 3-beam, 4-column structure, simple but with high performance price ratio.
2. Cartridge valve integral unit equipped for hydraulic control system, reliable, durable and less hydraulic shock, with shorter connection pipeline and fewer releases points.

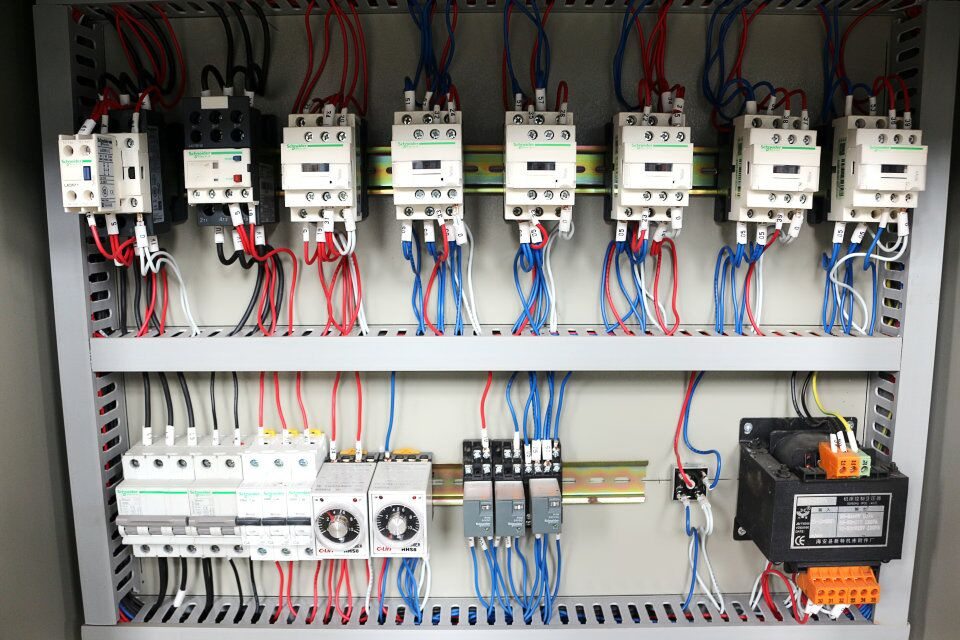

3. Independent electrical control, reliable, audio-visual and convenient for maintenance.
4. Centralized button control system,with adjustment,hand and semi-auto operation modes at operator's choice.
5. Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.
6. The operating force, no-load traveling and, low-speed movement and travel range can be adjusted subject to technological requirements.

Technical parameter

Model   unit Y32-100 Y32-160 Y32-200 Y32-250 Y32-315 Y32-500 Y32-630 Y32-800 Y32-1000 Y32-1600 Y32-2000 Y32-3150 Nominal Force KN 1000 1600 2000 2500 3150 5000 6300 8000 10000 16000 20000 31500 Ejection force KN 250 250 400 400 630 1000 1000 1250 1250 1600 2000 3150 Max working pressure of liquid Mpa 25 25 25 25 25 25 25 25 25 25 25 25 Max. open height mm 800 900 1000 1000 1250 1400 1500 1500 1500 1600 1800 2500 Slider stroke  mm 600 700 700 700 800 900 900 900 900 900 1000 1200 Ejection stroke mm 200 250 250 250 300 300 300 350 350 450 450 500 Slide speed Down mm/s 100 100 100 120 120 120 120 120 120 150 150 300 Pressing mm/s 8~15 8~15 8~15 8~15 8~15 8~15 8~15 8~15 8~15 8~18 8~18 8~18 Return mm/s 80 80 80 80 90 80 80 80 100 120 120 250 Table size Left-right mm 600 800 800 800 1200 1400 1600 1600 1800 1800 2000 2800 Front-back mm 600 700 800 800 1200 1400 1600 1600 1600 1600 2000 2000 Overall dimensions Left-right mm 2000 2200 2200 2200 3300 3500 3700 3700 4000 4200 4500 5800 Front-back mm 1000 1000 1200 1200 1600 1600 1800 1800 1800 2000 2000 2000 Height mm 3200 3300 3500 3700 4800 5000 5300 5700 5800 6000 6500 8200 Power    KW  7.5 15 18.5 18.5 22 37 37 44 60 90 134 180

Guarantee & after sale service
1) Guarantee for 1 year exluding comsumable parts .Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the your money, we will prepare machine for you, it will spend 15-30days, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.
4) Free installation and fully test before sending and free training for operators

FAQ:
1, How to pay to you ?
T/T inadvance or by Paypal . We can accept 30% deposit , and balance paid to us before delivery machine to you .
2, How long is the delivery time?
For standard machines, it would be3-5 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 days.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading .
