| Prod Model: |
DY07H |
| Name: |
Furniture Hardware 4 Hole Base Frog Hinges |
| Feature: |
Normal, Durable |
| Plate: |
4 Hole, 2 Hole, Butterfly Plate |
| Cup Diameter: |
35mm |
| Cup Hole Distance: |
45, 48, 52mm |
| Cup Depth: |
11.3mm |
| Application: |
Concealed Cabinet Door |
| Test: |
SGS Test |
| Certificate: |
ISO9001 |
| Market: |
North America, South America, Europe, Africa, Ect. |
| Finish: |
Nickel Plated |
| Material: |
Iron |
| Type: |
105-110 Degree |
Product Description

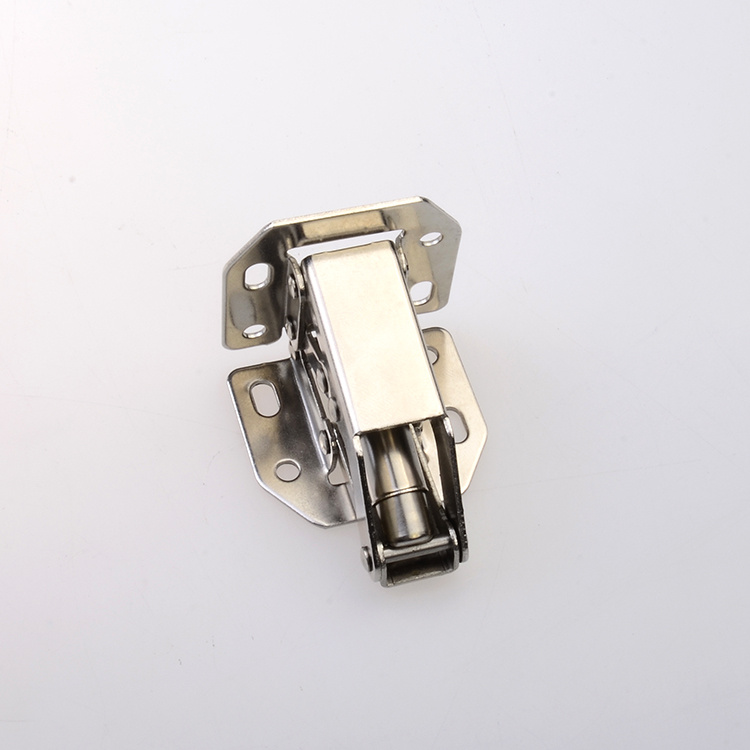

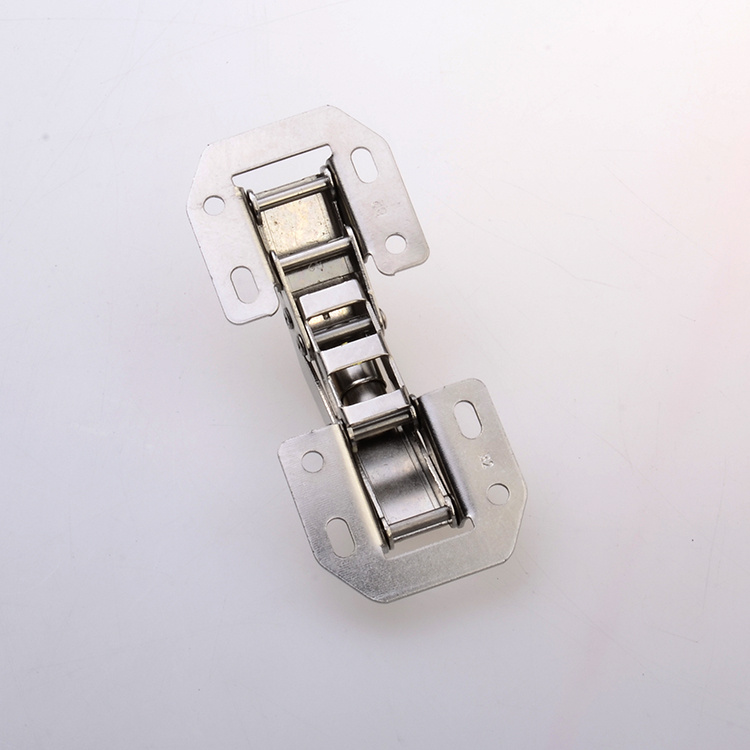

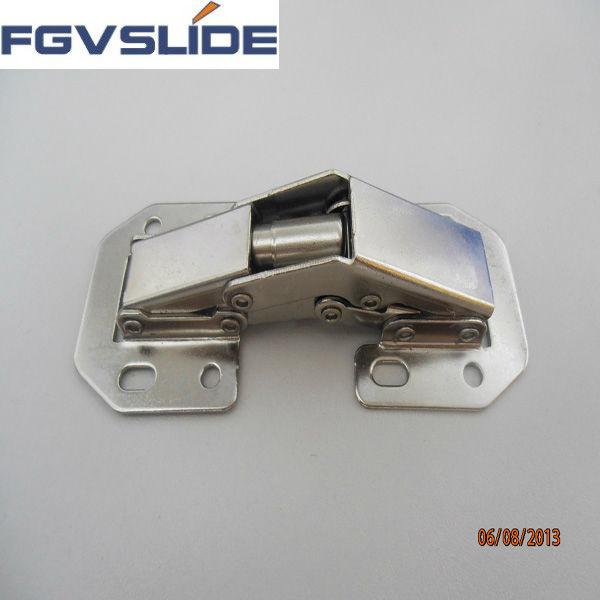

Furniture hardware 4 hole base frog hinges
| ITEM NAME | Furniture hardware 4 hole base frog hinges | ITEM NO. | DY07H |
| MATERIAL | Steel | FINISH | Nickel Plated |
| CUP DIAMETER | 35 mm | CUP HOLE DISTANCE | 45 / 48 / 52 mm |
| FUNCTION | Normal | HOLE PATTERN | 2 holes or 4 holes, butterly |
| STYLE | Full overlay / Half overlay / Inset | OPEN ANGLE | 110 Degree |
Product Detail
1. Type: Furniture hinge, concealed hinge
2. Material: iron
3. Package: Buckle Package4. Style: Half overlay / Full Overlay / Inset5. Opening angle: 90-110 degree6. Cup Diameter: 35 mm7. Cup hole distance: 45,48,52 mm8. Depth: 11.3 mm9. Plank thickness: 14-21 mm10. Door(c) distance: 3-7 mm11. Weight: 60g12. Certification: ISO900113. Test: SGS14.50000 times open-close SGS test
Our Service
1. Prompt and flexible quotation
2. Customized package
3. Considerate after-sale service
4. Well-known global market
5. Reliable quality

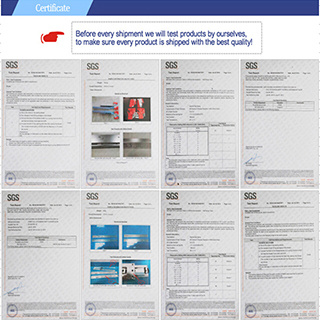

| Testing | SGS TEST |
| Passed over 50,000 open-close |
| Passed 48 hours salt spray test |
| Sample | Sample free and small order can be accepted |
| Features | Strengthened adjustable screw can widen the adjustable ranges and longer using life. |
Widening manganese steel spring,can disperse force when the hinge closed.
Strengthened spring, thickness 2.5mm instead of common one thickness: 1.2mm |
| Adopt advanced hydraulic system,longer life time,smaller volume |
Packing DetailsWe supply two kinds of hinge'spackage mostly:
1.100 pieces into one plastic bag, one plastic bag into one carton;
2. 2 pieces with screws into one small plastic bag, 100 plastic bags into one carton.
Plastic bags can be customized base on 120 thousand pieces hinges inquiry. | Item No | Description | N.W(kg) | G.W(kg) | CTN Size/MM | Q'ty/CTN |
| DY07H | Normal hinges | 12 | 12.3 | 400*255*200 | 200 |
Company Profile
- Foshan Shunde Dongyue Metal & Plastic Co., Ltd. (FGVSLIDE Enterprise Limited) is located in 2002, with an experienced sales team with 13 years i this field.
- Specialized in producing different widths high quality slides: 53mm/45mm/35mm in full extension and 35mm/27mm/17mm in single extension
- Our products are sold to European, USD, Germany, UK, Denmark, Brazil, Iran, Sweden and Japan.
- Several international famous brands cooperated with us, for example: HAFELE, WURTH, HAILO, EBCO, EUROFIT, etc..
- Registered own brand FGVSLIDE, some countries with agent already. We are interested in collaborating with importers of furniture hardware, who must be motivated, responsible, and have an established sales network.
- Our products have SGS test. Including 48 hours salt fog test, extension test(75000 times of the basic one and 50000 times of the ones with fuction).
- Import POM material, using the best electroplating technoligy from Taiwan.
Exhibitions
We took part in the Canton Fair since the 108th Canton Fair. In the meanwhile, we also took part in foreign exhibitions like: International Woodwork Fair in U.S.A., Hardware Exhibitions in Brazil and South Africa.
FAQ
1. What's the MOQ for the first time purchasing?
If make logo and brand package, MOQ is 50000pcs. If need colorful bags, then MOQ need 120000pcs; If there
is no need for brand logo and package, MOQ is 5000pcs for normal hinge. And 1000pcs for soft close hinge.
2. Before purchasing, how can we get to know the quality?
We can send sample to you to check. Also customer can appoint some agent to inspect the mass production
quality in our factory to make sure the quality.
3. What will be the loading capacity for 20ft container?
Max loading capacity is 27 tons, but exact loading capacity depends on the slide model you choose and the
country you are from, for further information, please consult from our sales.
4. What will be the delivery time?
Normally is 25-45 days after order confirmed by both parties.
5. What are the payment terms?
TT or Cash or LC,30% deposit, 70% before shippment if you book the shippment, or 70% against scanned B/L
if we book the shippment.
6. What should we do if goods are received with some quality problems?
All goods have been inspected during the assembling and packing, the chance to get defective slide is very rare.
If there are some quality problems, such as finish problem, damaged problem, please kindly take some photos and
show to us proof, also please show us the carton image to locate the quality supervisor. After we verified the
problem, we will give refund or resend the goods.
7. What's the price term?
EXW/FOB/CNF/CIF depends on customer's requirement.
