| Prod Model: |
stone grinding floor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Cup Wheel |
| Diameter Inch/mm: |
3"/75mm |
| Connection: |
22.23/5/8''-11 M10/M12/M14/M16 |
| Thickness(mm): |
5 |
| Segment Number: |
7 |
| Grit: |
30/40#\40/50# 60/80#\100/120#etc |
| Application: |
Granite, Basalt, Sandstone, Marble Ect. |
| Quality: |
High Performance |
| Price: |
Competitive and Best Price |
| Bond: |
Diamond and Metal |
| Material: |
Diamond |
| Abrasive: |
Superabrasive |
| Shapes: |
Section Shape |
| Types: |
Surface Grinding Wheel |
| Working Style: |
Surface Grinding |
Product Description
CHARACTERISTICS OF PRODUCTS
1. This product is the most efficient tool applied in fast-grinding, edge-trimming, repairing and maintenance of concrete, stone and other similar materials.
2. It is applied on angle grinder and pneumatic power tools, regular diameter: (80mm), (100mm), (125mm), (150mm), (180mm).

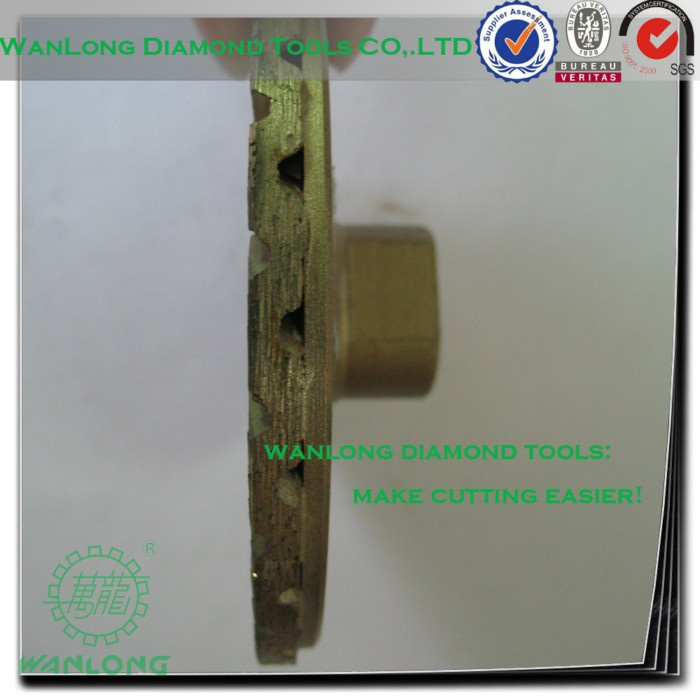

CUP WHEELS
Brief introduction: Diamond Cup Wheel is the most efficient tools applying in fast-grinding, edge-trim-ming and repair and maintain of Concrete, stone and other similar stone product. Usually it is applied on portable electric or poneumatic tools. It classified as four types which are Single Row Cup Wheel, Double Row Cup Wheel, Radial Cup Wheel and Turbo Cup wheel.
The Grits available: #30/40, #50/60, #70/80, #100/120, #170/200 etc.
The common diameter: 3"(80mm), 4" (100mm), 5"(125mm), 6"(150mm), 7"(180mm).
The applicable machne are angle-grinder, auto edge grinder, floor grinding machine etc.
The connection are: M10, M12, M14, M16, 5-8"-11 and Snail-lock.
For other specification and sizes are availble upon request.
SINGLE ROW CUP WHEEL
Diameter
Inch/mm | Connection | Thickness
(mm) | Segment
Number | Grit |
| 3' ' / 75 | 22.23/5/8' ' -11
M10/M12/M14/M16 | 5 | 7 | 30/40#, 40/50#
60/80#, 100/120#etc |
| 4' ' / 100 | 22.23/5/8' ' -11
M10/M12/M14/M16 | 5 | 7 | 30/40#, 40/50#
60/80#, 100/120#etc |
| 5' ' / 125 | 22.23/5/8' ' -11
M10/M12/M14/M16 | 5 | 7 | 30/40#, 40/50#
60/80#, 100/120#etc |
| 6' ' / 150 | 22.23/5/8' ' -11
M10/M12/M14/M16 | 5 | 7 | 30/40#, 40/50#
60/80#, 100/120#etc |
| 7' ' / 175 | 22.23/5/8' ' -11
M10/M12/M14/M16 | 5 | 7 | 30/40#, 40/50#
60/80#, 100/120#etc |
