| Prod Model: |
A1S2+2/FF |
| Color: |
Green or Customized |
| Range: |
80-100km |
| Net Weight: |
350kg |
| Pay Load: |
360kg |
| Wheelbase: |
1670mm |
| F/R Track: |
860/970mm |
| Min Turning Radius: |
2.9m |
Product Description

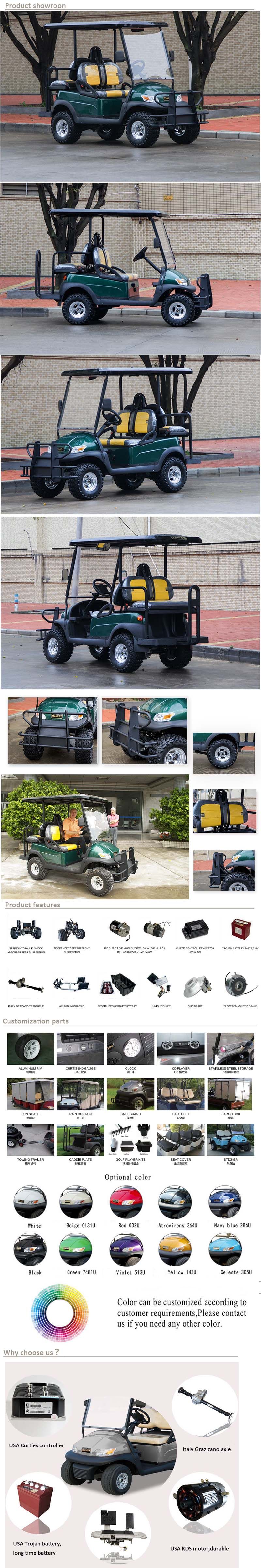

4 seater Battery Power Golf Cart for Golf Course
Specification | Item | Description |
| System | DC system | AC system |
| Controller | Curtis controller 1266A-5201, 275A, imported from USA directly | Curtis controller 1234E-5221, 275A, imported from USA directly |
| Motor | ADC brand Separately excited | ADC brand Separately excited |
| DC motor 48V 3.7kw | AC motor 48V 5kw |
| Battery | Trojan battery, T875,8V*6pcs, imported from USA directly | Trojan battery, T875,8V*6pcs, imported from USA directly |
| Transaxle | Italian GRAZIANO axle | Italian GRAZIANO axle |
| with gear ration 1:12 | with gear ration 1:16 |
| Charger | High Frequency onboard charger | High Frequency onboard charger |
| 48V/17A regulator | 48V/17A regulator |
| Overall dimensions (L x W x H) | 2921x1219x1727mm |
| Ground clearance | 114mm |
| Wheelbase | 1670mm |
| Front wheel tread (mm) | 860mm |
| Rear wheel tread (mm) | 970mm |
Company certificate
Packing and Shipping | Model | Dimension(mm) | 20" container | 40" container |
| Model | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield | With roof & windshield | Without roof & windshield |
| A1S2+2/FF | 3100*1200*2100 | 2921*1219*1250 | 4 units | 8units | 10units | 20units |
Company introduction
Excar is a Professional manufacture on golf cart and take seriously to the quality. All the main components adopted all the well-known brand such Italy Graziano axle or USA Trojan battery / Curtis controller to ensure you get less troubles but will be satisfy while using the cart .
Excar's golf cart has been sold to all over the world and have agents in Middle East (Dubai), South America (Brazil ), Asia (Vietnam & Thailand ),Euro ( Belgium, Spain, Italy, Switzerland, Holland, France ).
Excar also is the golf cart supplier to the world's biggest golf course MISSION HILL GOLFContact person
Contact:Jennifer Teng
Dongguan Excellence Golf & Sightseeing Car Co.,Ltd
Mobile: +86 13543754476
www.excar.com.cn

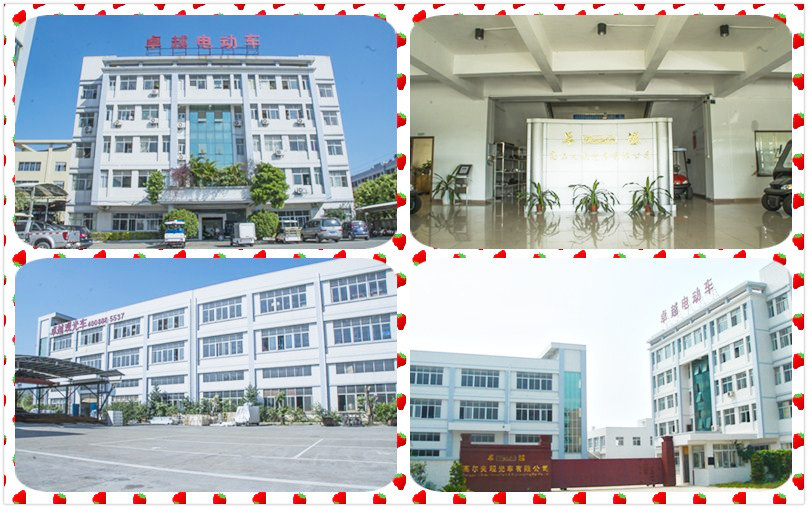

Dongguan excellence golf & sightseeing car Co., Ltd. (excar) is a high technological company with our own research and development department. Our factory is located in the liuwuxiang industry zone, at the east of songshang lake road and the north of guanshen highway. It enjoys superior location and convenient transportation.
Excar focuses on researching, developing and manufacturing electric cars in the field of four-wheel electric cars. For golf cars and sightseeing cars, we have great confidence that we could make it better and better to meet the needs of our clients.
Refer to the specification standards of imported electric cars, we designed and created a new series of golf cars named discovery for Chinese golf course especially.
Excar is devoted to before and after sale services and setting up service centers to support our customers. One of our duties is to supply exchangeable parts and technical support for golf cars of e-z-go and club cars. We are always ready to serve every golf course sincerely.
Seeking for Agent Around the World!
