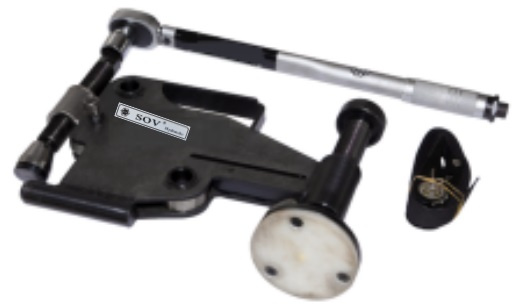

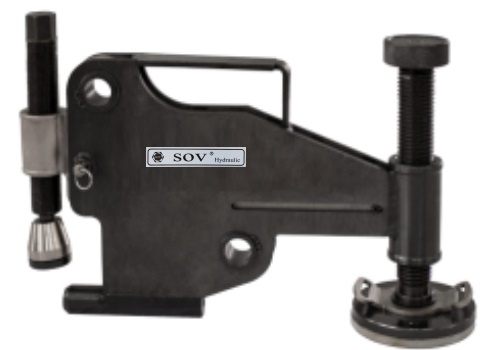

4 Ton Capacity Hand Integrated Flange Alignment Tools

Prod Model:	SV12FZ04
Output Capacity:	4 Ton
Weight:	8.6 Kg
Min. Bolt Hole Diameter:	24mm
Max. Alignment Distance:	113mm
Type:	Mechanical
Certificate:	Ce, ISO9001:2008
Warranty:	1 Year
Color:	Black

Product Description

Features
Suitable for all horizontal and vertical flanges including ANSI, API, BS, DIN&SPO
Suitable for most pipe structure
Output: 1 ton (10kN)
Suitable for offshore and land operation
Rustproof, lightweight and pollution-free
Saving much time and effort
Safe operation
High precision operation

Technical Parameters

Model No.	Capacity (ton)	Min. Bolt Hole Diameter (mm)	Max. Alignment Distance (mm)	Weight (kg)	Remark

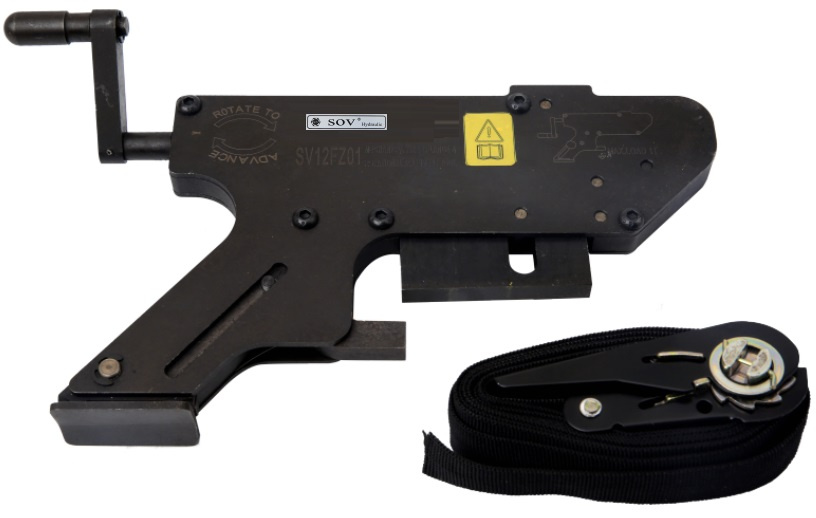

SV12FZ01	1	16	26	1.6	mechanial flange alignment tool ×1, torque spanner with 22mm socket ×1,  rugged portable toolbox ×1
SV12FZ04	4	24	113	8.6	mechanial flange alignment tool ×1, torque spanner with 22mm socket ×1,  rugged portable toolbox ×1
SV12FZ09	9	31.5	131.5	14.5	mechanial flange alignment tool ×1, torque spanner with 22mm socket ×1,  rugged portable toolbox ×1





Packaging Details
1. Outside packaging: Standard export wooden packing;
2. Inner packaging: Al-Ti alloy carrying case;
3. Customized packaging acceptable.

Shipping
1. Small quantity: By international exress, such as DHL, TNT, FEDEX, UPS, etc. Depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;
2. Large quantity: By sea transportation. Goods will arrive in 30~45 days, according to the diatance.

Product Application
Flange separator is widely used in petrochemical, electric power, steel, liquid, gas pipeline maintenance, repair the most ideal, the most secure special tool. The first stage is the design of the self-locking and moments of the flange, the separation of the work more safe and simple.

Our Service
1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

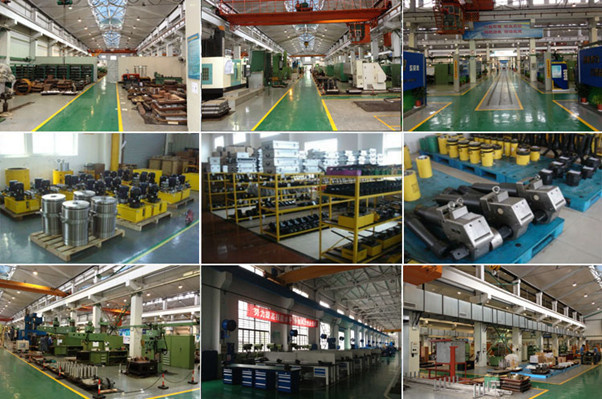

Company Information
SOV Hydraulic Technoloy (Shanghai) Co., Ltd. Is a manufacturer engaged in designing and manufacturing hydraulic cylinders, synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.
Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001: 2008 consecutively.
Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.



Our products include:
Hydraulic cylinders, jacks (5-1000ton);
Hydraulic/ electric /pneumatic torque wrench (100-72000Nm);
Hydraulic bolt tensioner (100-11486NM);
Hydraulic pullers (5-100 ton);
Integrated hydraulic lifting system solutions;
Hydraulic parts.


Competitive Advantages
1. High quality in competitive price;
2. Low minimun order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our promary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produce the products according to customers' design, etc.

FAQ
Q1: How can contact sales ?
A1: Please call: 0086 21 685 61366 for presales or click the contact find our website and email address.

Q2: How can I buy SOV products in my country?
A2: Please send us an inquiry or email , we will reply to your if there is distributor in your country.

Q3: Can I have SOV products catalog and price list ?
A3: Please visit our English website:www.sovhydraulic.com to download our E-catalog, and send us an email for price list

Q4: How long does it take to get the product If I place an order?
A4: If products stock available, after confirmation of your payment or advance payment , we will pack and deliver in7 days. If you select international parcel service, it can be arrived in 3-7 days. If it is by sea shipment, it will take 15-45 days depending on different locations.

Q5: How to make payment ?
A5: First send us an inquiry, and we will reply you quotation, if our price suits you, we will prepare proforma invoice with our banking details.

Q6: Manufacturing time?
Q6: Please send us an inquiry for stock condition, if we don't have stock, and it is our standard products (refer to our model), it can be produced in 10-20 days. If it is customized, not our standard products, it will take 20-45 days to produce.
