40% 45% Diamond Segment Silver Welding Solder
| Price: |
US $ 1-20016 |
| Min Order: |
116 |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HKL2004 |
| Type: |
Silver Solder Pieces for Diamond Tools Welding |
| Usage: |
for Tools Welding |
| Name: |
Silver Solder Pieces |
| Application: |
Welding Diamond Tools |
| Chemical Composition: |
AG,Cu,Zn,Sn |
| Weight: |
1kg |
| Melting Point: |
610-930 |
Product Description

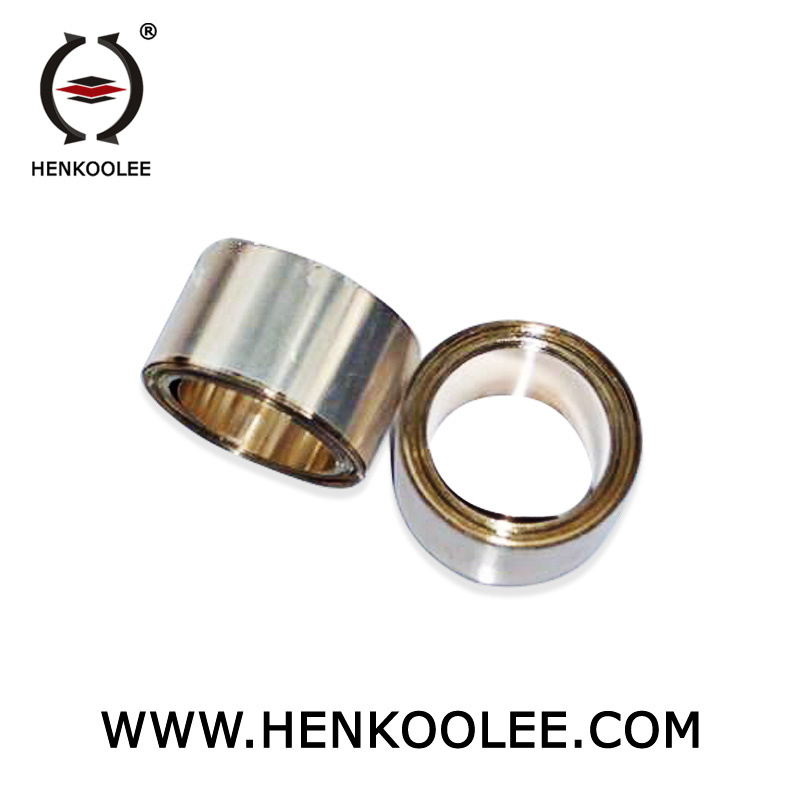

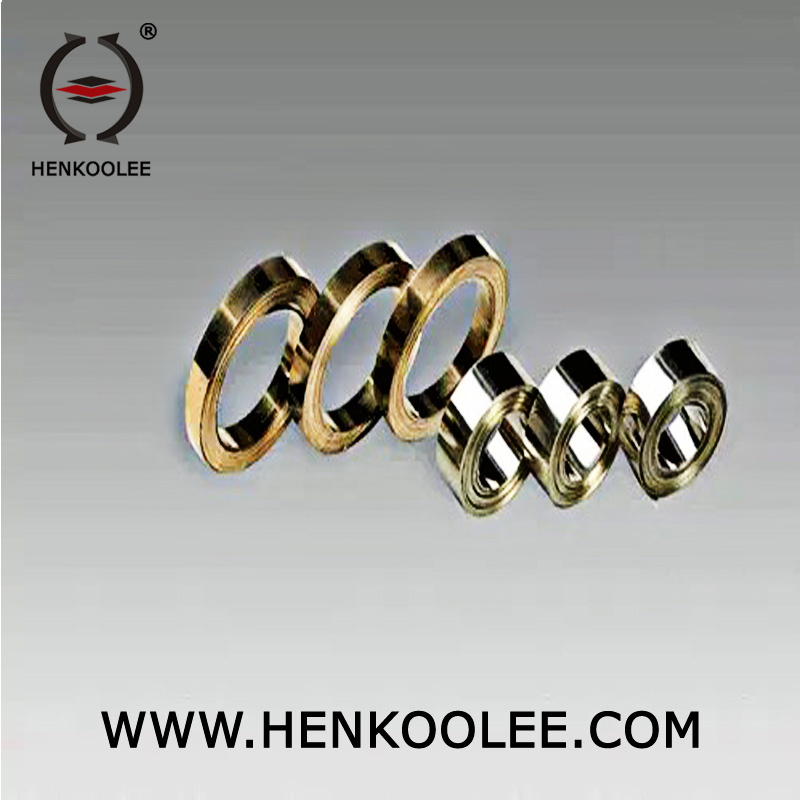

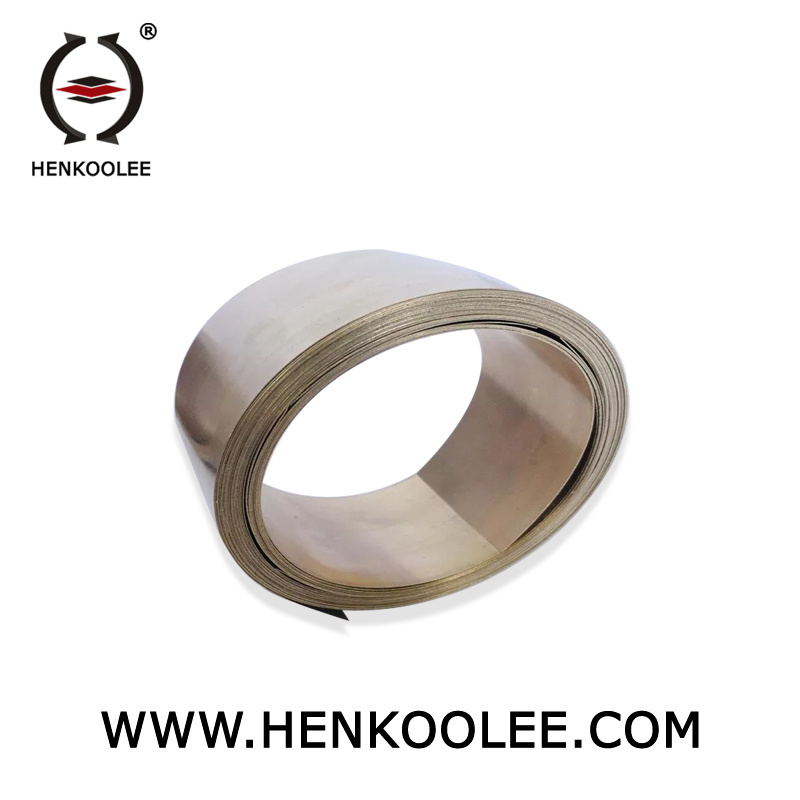

10-70% SILVER CONTENT SILVER SOLDERSilver-copper-zinc alloy solder has excellent process performance, low melting point, good wetting and filling the gap, high mechanical strength. Good plasticity, good electrical conductivity and corrosion resistance, can be used to braze all black and non-ferrous metals, such as stainless steel, carbide, diamond and other materials. Widely used in machinery, electrical and mechanical, refrigeration, glasses, instrumentation, carbide, aerospace and other industries.PRODUCT DESCRIPTIONSilver Solder Ring :
1.10%-70%silver content
2.welding saw blade
3.welding gang saw
4.welding band saw More detail:
1. Clear joint through dispersion.
2. Applicable to precision electronics components of thin film and fine wire.
3. Applicable to electric connection and heat exchanger due to its complete heat and electric conductivity.
4. It is possible to seal to make pressure vessel or vacuum sealing.
5. It makes convenient one-throughput processing for multi-joints.
6. Step brazing for complex casting.
7. Very little change of dimension or transformation compared to welding.
8. Very clear finishing to give second treatments.
9. Possible to joint different materials, as well as non-metallic component of Ceramic.
10.It can be melted dependent on the reheating of Brazing part.SPECIFICATIONS AS BELOW| SILVER CONTENT | USAGE | SIZE
(MM) |
| 10% | FOR WELDING | 0.15x13
0.18x25 |
| 15% |
| 20% |
| 30% |
| 50% |
| 70% |
CHEMICAL COMPOSITION:| Ag | Cu | Zn | Sn |
| 5-70 | 35-37 | 30-34 | 1.5-2.5 |
PHYSICAL PERFORMANCE:| Working temperature(ºC) | 740 |
| Melting Point(ºC) | 665-755 |
| Tensile Strength(N/mm2) | 360-480 |
SPECIFICATIONS OF SILVER SOLDER:| ITEM NO. | SILVER CONTENT | SPECIFICATION
(MM) | PACKAGE | APPLICATION |
| AG32-0 | 0% | Φ1.4x3.2x500 | STRIP
| FREEZING COPPER PIPE |
| AG8-5 | 2% | Φ0.8x500 | PHOTO FRAME,SLICE,DECORATION |
| AG15-5 | 5% | Φ1.5x500 | PHOTO FRAME,SLICE,DECORATION |
| AG03-30 | 30% | Φ0.3 | GLASSES,WATCH STRAP,JEWELRY |
| AG07-30 | 30% | Φ0.7x500 | GLASSES,WATCH STRAP,JEWELRY |
| AG15-30 | 30% | Φ1.5x500 | GLASSES,WATCH STRAP,JEWELRY |
| AG07-40 | 40% | Φ0.7x500 | JEWELRY,WATCHGEAR |
| AG07-45 | 45% | Φ0.7x500 | JEWELRY,WATCHGEAR |
| AG08-60 | 60% | Φ0.8x500 | SAWTOOTH,KGOLD JEWELRY |
Application:
HENKOOLEE TRADING LIMITED mainly engaged in exporting machinery & consumable products of ceramic tile produce process. We have an expert team, who can be consultant for new ceramic plant design, machinery technology modification of existed production line, all of them have more than 10 years experience in this ceramic field.
Since 2008 till today, we are doing business mostly with Indian ceramic factories, during this period, we keep choosing best suppliers of China for our Indian friends, however, every ceramic factory has the difference, we take the responsibility to look for the proper supplier for clients need. Fortunately, our clients satisfy the machinery manufacturers we suggested in these years, so mostly these manufacturers became fixed suppliers, and due to this reason, clients became our good friends gradually, the cooperation between our three parties goes very well.
Our company aim: Quality is the first, based on solving problems for clients as our friends, try our best to do top service and low down the produce cost. In the future, we will stick to our aim, adhere the principle of doing all work sincerely & seriously. Let's forge ahead, business scale is continually expanding!
