| Prod Model: |
YHY-SS-0107 |
| Wire Diameter: |
0.003-3mm |
| Wire Matrial: |
302,304,304L,316,316L,310,410,430 |
| Woven Type: |
Twill Woven, Dutch Woven, Plaindutch Woven, |
| Hole Type: |
Square |
| Use: |
Filter Mesh |
| Feature: |
Longevity, Rust Resistance |
| Delivery Time: |
20days |
| Free Sample: |
Available |
| Popular Market: |
The Us, Honduras, Australia, and Canada |
| Cute Size: |
0.1-1meter |
| Hole Shape: |
Square |
| Application: |
Barbecue Wire Mesh |
| Type: |
Stainless Steel Plain Wire Mesh |
| Material Type: |
Stainless Steel Wire |
| Weave Technique: |
Plain Weave |
| Technique: |
Woven |
| Nickels: |
8% |
| Certification: |
ISO9001 |
| Material: |
SUS304, SUS316,SUS316L |
| Wire Mesh Width: |
0.1-3.5m |

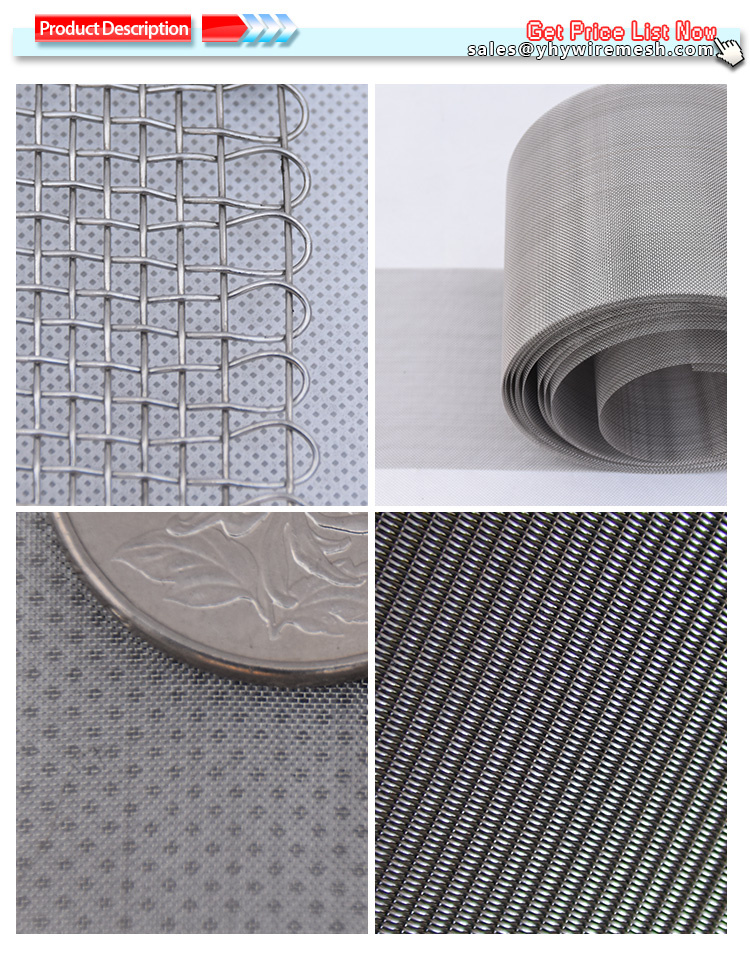

Product Description

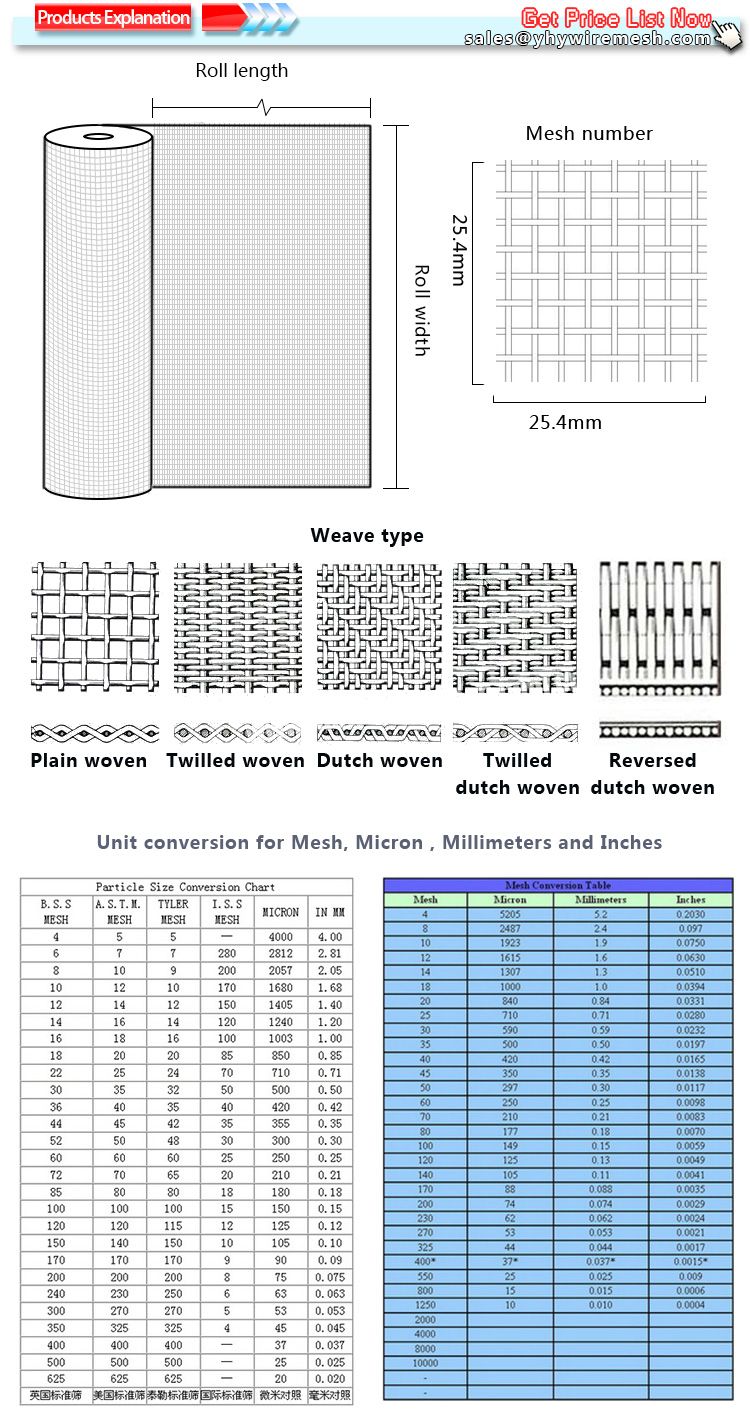

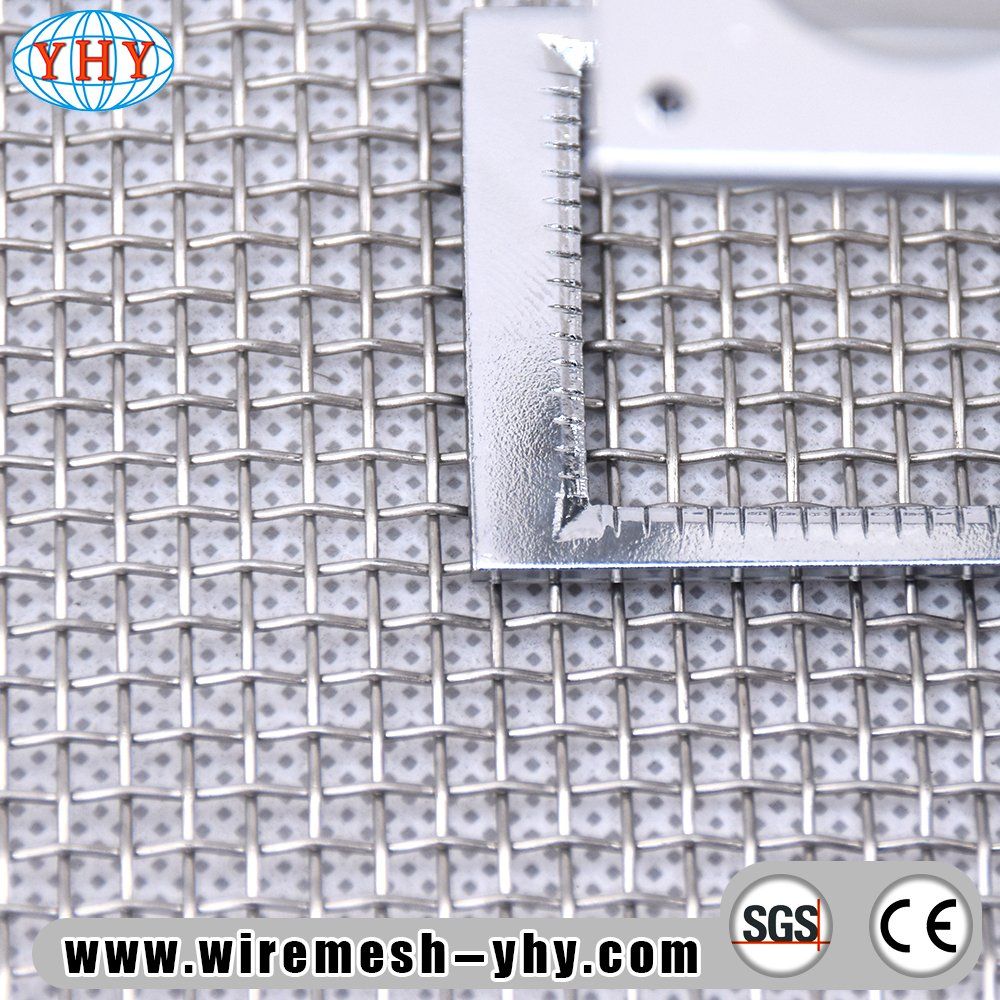

1.Plain Weave: also called tabby weave, linen weave or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple cross-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.| Stainless Steel Woven Wire Mesh(Plain Weave) |
| mesh/inch | wire diameter(mm) | aperture(mm) | mesh/inch | wire diameter(mm) | aperture(mm) |
| 2 mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 |
| 3 mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 |
| 4 mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 |
| 5 mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 |
| 6 mesh | 0.80 | 3.433 | 100mesh | 0.1 | 0.154 |
| 8 mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.25 | 0.0385 |
2.Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction. | Stainless Steel Woven Wire Mesh(Twil Weave) |
| mesh | wire diameter(mm) | aperture(mm) | material(AISI) |
| 250 mesh | 0.040mm | 0.063 | 304 or 316 |
| 300 mesh | 0.040mm | 0.044 | 304 or 316 |
| 325 mesh | 0.035mm | 0.043 | 304 or 316 |
| 350 mesh | 0.030mm | 0.042 | 304 or 316 |
| 400 mesh | 0.030mm | 0.033 | 304 or 316 |
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires. | Stainless Steel Woven Wire Mesh(Dutch Weave) |
| Mesh | Wire Dia.(mm) | Material(AISI) |
| 12mesh x64mesh | 0.58/0.40 | 304 or 316 |
| 24 Mesh x 110 Mesh | 0.36/0.25 | 304 or 316 |
| 14 Mesh x 88 Mesh | 0.50/0.33 | 304 or 316 |
| 30 Meshx 150Mesh | 0.18/0.14 | 304 or 316 |
| 40 Mesh x 200Mesh | 0.14/0.11 | 304 or 316 |
| 50 Mesh x 250Mesh | 0.10/0.071 | 304 or 316 |
| 80Mesh x700Mesh | 0.06/0.05 | 304 or 316 |
| 165Mesh x800Mesh | 0.071/0.040 | 304 or 316 |
| 165Mesh x1400Mesh | 0.05/0.032 | 304 or 316 |
| 200Mesh x1800Mesh | 0.05/0.03 | 304 or 316 |
| 325Mesh x2300Mesh | 0.030/0.025 | 316L |
| 400Mesh x2800Mesh | 0.030/0.02 | 316L |
Knowledge of Stainless Steel Material 1. Mesh Count = 25.4mm/D+A2. Aperture= 25.4mm/Mesh count - Diameter3. % Open Area= A/(A+D)² X 100% 4. Micron= Aperture(mm) X 10005.Mesh - The number of openings per lineal inch.6.Aperture- The distance between two adjacent wires7.Diameter- The thickness of the wire before weaving8.% Open Area- The ratio of the area of the aperture to the area of the 9.mesh expressed in percentage terms10.Warp- All wires running lengthwise of the cloth as woven11.Weft- All wires running across the cloth as woven
1. Are you a manufacturer? Yes, we are the ISO and CE certificated Manufacturer and our factory founded in this industry since 1989.
2. Will your price competitive? Yes , we have stable and large raw material supplier ,we work with them for nearly 20 years . Our machine and technical it is most advanced , we will send our technical to aboard to learning new technical every year.
3.Can we have a sample ?Yes , if the samples it is not much big , we can offer free sample , the courier it is paid by customers.
4.Can we visit your factory ?Yes , you are welcome to visit us . we can pick you up from the airport .
5. What are the payment terms?We can accept TT , LC , West Union , Money Gram , Cash .
Contact usUla
web set: http://www.wiremesh-yhy.com
tel: 0086 311 86851859
fax: 0086 311 89918897
mob: 0086 18033724602

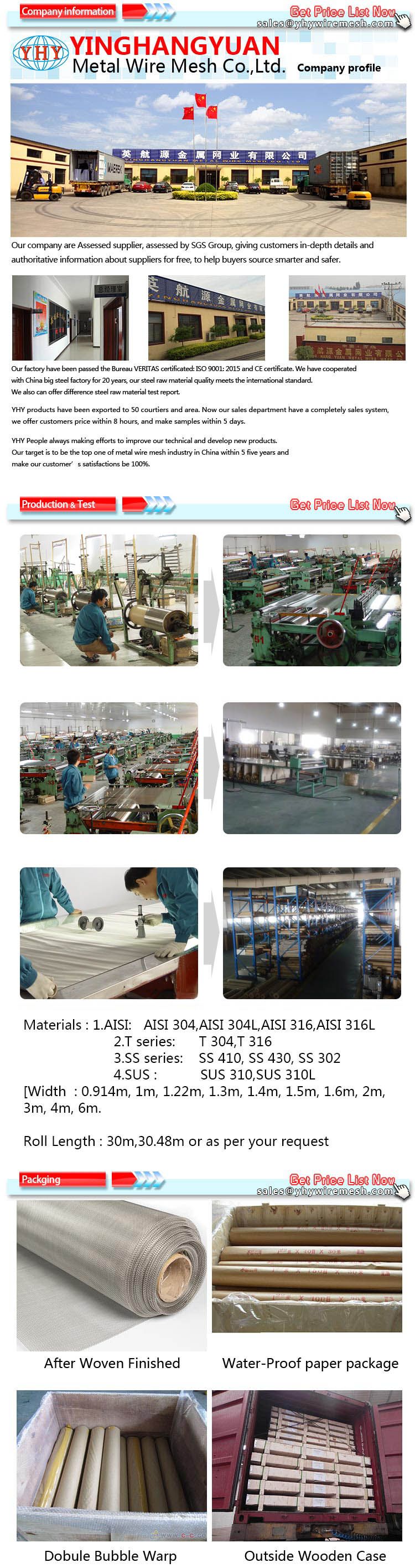

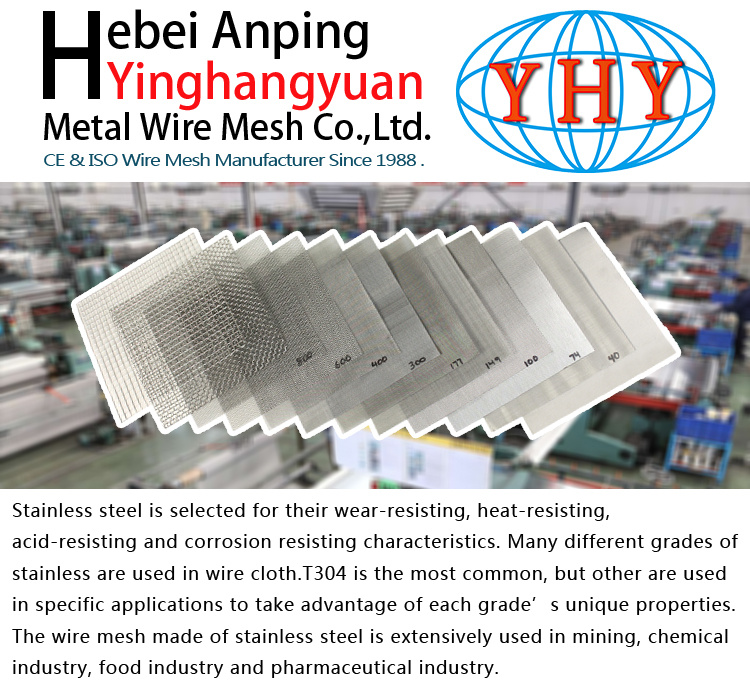

Anping YingHangYuan Metal Wire Mesh Co., Ltd. (The predecessor is Anping County Hongshuo wire-Drawing and Woven Factory) was founded in 1988. It is located in the largest wire mesh manufacture base in Asia, Anping County, Hebei, China. It has become a big comprehensive wire mesh company which is engaged in domestic and foreign trade. Since our international business department set up now our products are sold 50 countries and area, such as USA, Germany, Italy, Australia and Southeast Asia etc.
Now Our main products are Steel Screen Mesh, Welded Wire Mesh, Wire Fence, Fiberglass Mesh And the other metal wire mesh products.

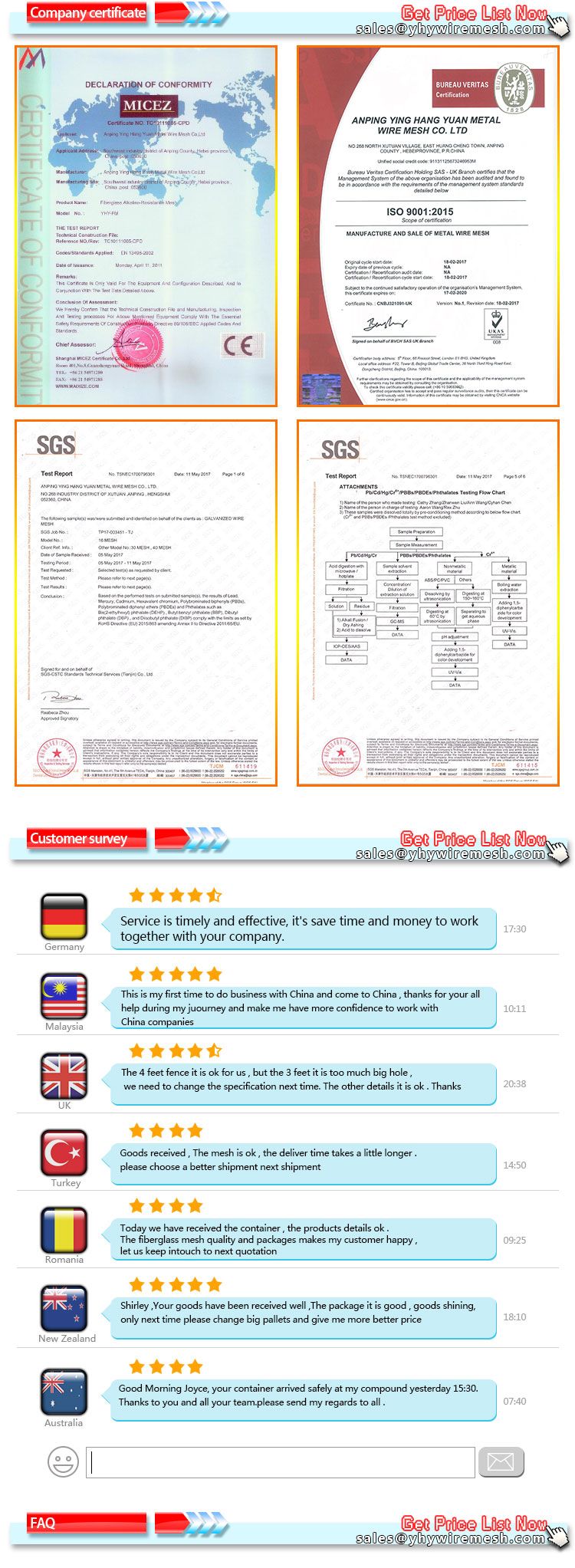

Our factory have been passed the Bureau Veritas certificated: ISO 9001: 2015 and CE certificate. We have cooperated with China big steel factory for 20 years, our steel raw material quality meets the international standard. We also can offer difference steel raw material test report.
Our international department set up at 2008, difference of metal wire mesh products have been exported to 50 courties and area. Now our sales department have a competely system, we offer customers price within 8 hours, and make samples within 5 days. Our sales will offer difference solution for your purhcase. We will help you to make your hard-earned money well spend.
YHY People always making efforts to improve our technical and develop new products. Our target is to be the top one of metal wire mesh industry in China within 5 five years and make our customer' s satification be 100%.
If you need to get the price list and catalogue of our company, please kindly send us a inquiry from the website or just call us. We can reply your messages or calls on time.
Our international department have 8 English speckers, we can understand your inquiry by our knowleage and experience.
If you want to visit us, you are also welcome, we can pick you up from the air port and train station.
