| Price: | US $ 41-50/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | 2.1.2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Outer Diameter: | 400mm |
| Outer Diameter (Inch): | 24~64 Inches |
| Segment Size: | 40X3.4X10/12/15mm |
| Cutting Material: | Asphalt, Concrete, Building Materials |
| Inner Hole: | 25.4mm with Pin Hole |
| Technology: | Laser Welding |
| Machine Type: | Walk-Behind Saw, Road Saw |
| Delivery Time: | Based on Actual Order, Generally 30days |

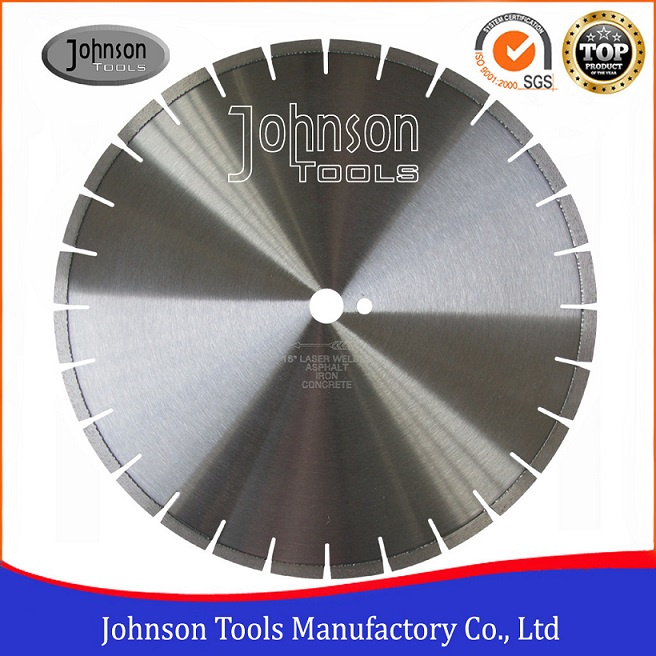

400mm Road cutting blade is a cutting tool that is widely used in concrete cutting, precast slab cutting, old and new road cutting, grooving other hard and brittle materials. Road saw blade mainly consists of two parts, steel core and diamond segment; The Segment is cutting part, will be consumed during in the cutting, while the steel core is not, the reason why the diamond segment can play a role in cutting because it contains diamond, diamond as the most hard substance that rub and cutting the materials processed, while the diamond particles is wrapped in the diamond segment by metal.
1) Undercut Protection segments provide longer lifetime when cutting Abrasive Materials.
2) Fits to Petrol Cutters, Bench & Floor Saw Machines.
3) Different Cutting slot have different function, narrow U or key slot give a wider segment and longer lifetime. Wider U slot prevent clogging.
4) Dry or wet cutting reinforced concrete, aggregate concrete, hot rolled asphalt, asphalt, asphalt over concrete&green concete.
5) Well exported to Taiwan, Hongkong, Thailand, Poland, Australia, Singapore, USA etc.
Diameter:400mm
Segment thickness:3.2mm
Segment height:10/12/15mm
Inner hole:25.4mm, 60mm or others
| Inch | Diameter (mm) | Segment length (mm) | Segment thickness (mm) | Segment height (mm) | Segment number (nos) |
| 16" | 400 | 40 | 3.4 | 10 | 28 |
| 16" | 400 | 40 | 3.4 | 12 | 28 |
| 16" | 400 | 40 | 3.4 | 12 | 28 |
| OD (mm) | Teeth specification | Hole(mm) | |||
| Length (mm) | Thickness (mm) | Height (mm) | Number | ||
| 350 | 40 | 3.2 | 10/12/15 | 24 | 25.4 |
| 500 | 40 | 4.0 | 10/12/15 | 36 | 25.4 |
| 600 | 40 | 4.4 | 10/12/15 | 42 | 25.4 |
| 650 | 40 | 4.8/5.0 | 10/12/15 | 42 | 25.4 |
| 750 | 40 | 4.8/5.0 | 10/12/15 | 46 | 25.4 |
| 800 | 40 | 4.8/5.0 | 10/12/15 | 46 | 25.4 |
| 900 | 40 | 4.8/5.0 | 10/12/15 | 52 | 25.4 |
| 1200 | 40 | 4.8/5.0 | 10/12/15 | 68 | 25.4 |
| 1500 | 40 | 4.8/5.0 | 10/12/15 | 90 | 25.4 |
10pcs 400mm laser welded floor saw blades are packed in one carton, gross weight per plywood is limited within 27-29kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
T/T, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
