| Prod Model: |
15DN0012 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Welding Method: |
Hot Sintered & Laser Welding |
| Body Material: |
65mn Steel |
| Surface Treatment: |
Spray Paint |
| Dimension: |
105-400mm |
| Segment Type: |
Segmented, Continuous Rim, Turbo |
| Slot: |
Key Slot, Narrow Slot, U Slot |
| Arbor Hole: |
22.23/25.4 |
| Segment Number: |
17-42 |
| Machine: |
Hand Tool or Cutting Machine |
| Shape: |
Round |
| Manufacturing Arts: |
Sinter |
| Usage: |
Stone Cutting |
| Customized: |
Customized |
| Thickness: |
2.6, 3.0, 3.2, 3.4, 3.6, 4.0, 4.2 |
| Kind: |
Circular Saw |
| Brand: |
Dm |
| Saw Blade External Diameter: |
250, 300, 350, 400, 450, 500 |
| Specification: |
10'', 12'', 14'', 16'', 18'', 20'' |
Product Description
Product Description
Diamond saw blade is a cutting tool that is widely used in the processing of concrete, refractories, stone, ceramics and other brittle materials.Diamond saw blade consists of two parts; the base body and head. Is the main support base of the tip portion of the adhesive, and the tip is cut from the part during use, the tip will be in use and continue to consume, while the matrix is not, it has been able to play a cutting head the role is because it contains diamond, diamond as the most hard substance, it is friction in the tip of the cutting work object. The diamond particles in the head by a metal wrapped inside
Features: General Purpose Blades come high~frequency welding, polished, sintered,
turbo or with under-cut protection for light to medium job applications
Applications: General Purpose Diamond Blade used for cutting block, concrete, pavers, brick, green concrete, hard concrete, clay pavers, and natural stone
Machinery: Angle grinder, hand held circular saw, gas powered saw, walk behind saw.
Product Information
| Laser General purpose saw blade |
| Item No | Diameter | Arbor | Segment | Seg. No |
| DM104 | 4'' | 105 | 7/8'' | 22.23~20 | 2.0X8/10MM | 8 |
| DM145 | 4.5'' | 115 | 7/8'' | 22.23~20 | 2.0X8/10MM | 9 |
| DM105 | 5'' | 125 | 7/8'' | 22.23~20 | 2.2X8/10MM | 10 |
| DM106 | 6'' | 150 | 7/8'' | 22.23 | 2.2X8/10MM | 12 |
| DM107 | 7'' | 180 | 7/8'' | 22.23 | 2.4X8/10MM | 13 |
| DM109 | 9'' | 230 | 7/8'' | 22.23 | 2.6X8/10MM | 16 |
| DM110 | 10'' | 250 | 1''-7/8'' | 25.4-22.23 | 2.6X8/10/12/14MM | 17/18 |
| DM112 | 12'' | 300 | 2''-1'' | 50-25.4 | 3.0X8/10/12/14MM | 20/21 |
| DM114 | 14'' | 350 | 2''-1'' | 50-25.4 | 3.2X8/10/12/14MM | 24 |
| DM116 | 16'' | 400 | 2''-1'' | 50-25.4 | 3.4X8/10/12/14MM | 28 |
| DM118 | 18'' | 450 | 2''-1'' | 50-25.4 | 3.6X8/10/12/14MM | 32 |
| Professional dry pr wet blades for cutting marble, granite,concrete,brick,black,and masonry material |
| Laser Wall Saw Blade |
| Item No | Diameter | Arbor | Segment | Seg. No |
| DM212 | 12'' | 300 | 2''~1'' | 50~25.4 | 3.0X8/10/12/14MM | 20/21 |
| DM214 | 14'' | 350 | 2''~1'' | 50~25.4 | 3.2X8/10/12/14MM | 24 |
| DM216 | 16'' | 400 | 2''~1'' | 50~25.4 | 3.4X8/10/12/14MM | 28 |
| DM218 | 18'' | 450 | 2''~1'' | 50~25.4 | 3.6X8/10/12/14MM | 32 |
| Premium laser blade for wall saw |

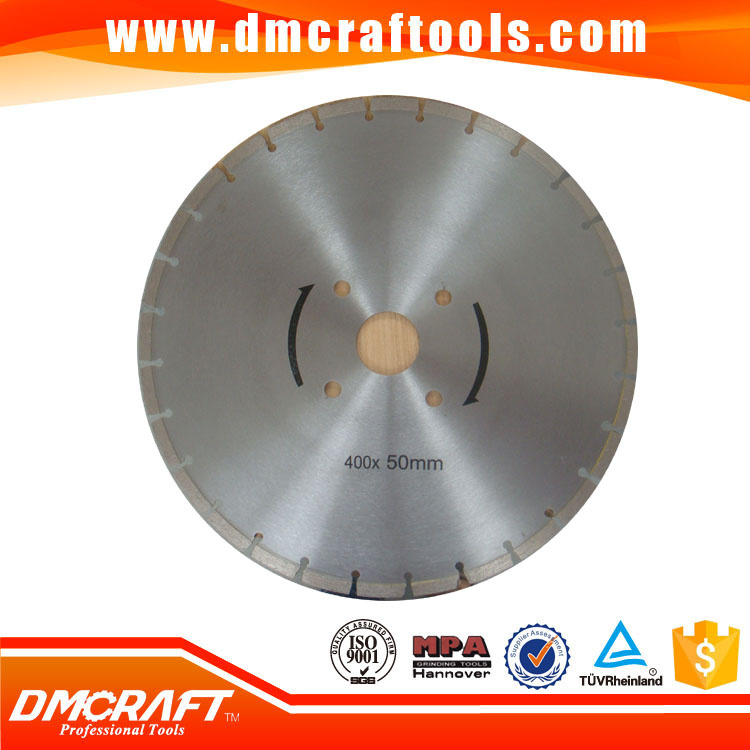

Product Picture
Packing &Shipping1. Each saw blade is packed in an inner cardboard case, and then several of these inner cases are put in an export standard carton; then reinforced with straps.
2. Normally we can make shipment within 20-30 days after receiving your payment or L/C.

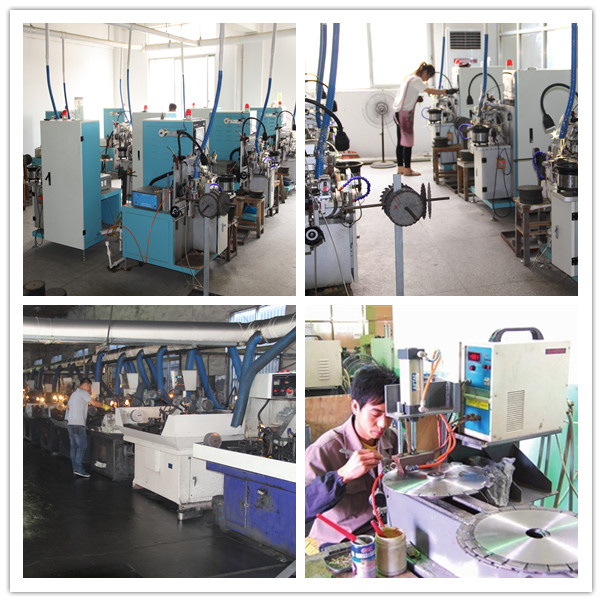

Our company
1) We're a direct manufacturer and 100% export to worldwide(USA, Isrel, Jordan, Iran, Thailand,Duabai, South Africa, Kenya, Egypt, Australia, UK, Spain, Brazil, etc)
2) We have around 15 years producing experience.
3) Our diamond product:laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect.
4) Above 95% customers will place a formal order after testing the samples.
More information about our products, welcome to visit :http://en.dmcraftools.com/
DANYANG DAMING TOOLS Co., Ltd. is one of the professional manufacturer of drill bits in China,
Now we can provide the following cutting tools:
1. HSS straight shank twist drills:
(DIN338, DIN340, DIN1897, DIN345; ASME B. 94.11M: Jobber length, Taper length, Screw Machine Length, Aircraft Ectension, etc);
2. HSS taper shank drills: ( Rolled, Milled);
3. Masonry drills (Chrome plated, Nickle Plated, Zinc plated);
4. SDS Hammer drills;
5. Wood working series: (Wood working drills, Wood Auger bits);
6. Various kind of drill sets in many different types;
7. TCT saw blades
8. Diamond saw blades
9. HSS Hole Saws;
10. HSS Tapes;
11. All kinds of drill sets.
Therefore, our products are well accepted by many customers from all over the world, mainly in North America, Asia, Europe, MID East, South America and other countries and regions.
For a completive quotation or any further information, please don't hesitate to contact us at any way. Our sales staff will be pleased to assist you with our best.
